AC220V Traffic Swing Barrier Gate Hospital Security 800mm Arm Fingerprint

  • AC220V Traffic Swing Barrier Gate Hospital Security 800mm Arm Fingerprint
  • AC220V Traffic Swing Barrier Gate Hospital Security 800mm Arm Fingerprint
  • AC220V Traffic Swing Barrier Gate Hospital Security 800mm Arm Fingerprint
  • AC220V Traffic Swing Barrier Gate Hospital Security 800mm Arm Fingerprint
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB03
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 3,000pcs per month
Product Details
Body Size 1200*280*980mm Arm Length Max 800mm
Working Temperature -20°C~60°C Arm Material Stainless Steel
Passing Speed 30 Person/minute LED Indicator Entry And Exit
High Light

AC220V Traffic Swing Barrier Gate

,

800mm Arm Swing Barrier Gate

,

Fingerprint Pedestrian Swing Gate
Leave a Message
Product Description

Hospital Security Traffic Pedestrian Swing Gate , Swing Barrier Gate



Production description:



Traffic swing barrier gate is mainly installed in entrance and exit of shopping mall which has a large flow rate; it is most popular in supermarket.
Traffic swing barrier gate is designed to work in a normally closed mode and retract inside the pedestal, normally free exit by sensors, and entrance forbidden.



Features of Pedestrian Swing Gate:

  • Gate length can be easily customized to fit site requirement.
  • Support bi-directional opening (entry and exit)
  • Can integrate with access control system.
  • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
  • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
  • During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
  • Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
  • Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
  • Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
  • Gate motor mechanism is self lock at open and close position.



Specifications of Pedestrian Swing Gate:



Product Fingerprint device swing turnstile
Body material 304 stainless steel (316 optional)
Dimensions L1200 x W280 x H980mm
Arm length 530mm(Standard),≤750mm
Weight 80kg
Power of motor DC24V
Voltage AC220V±10%
Frenquency 50Hz
MCBF 5 million cycles
Transit speed 30 persons/min
Operating environment Indoor/outdoor (Shelter)
Operating temperature -20°C ~ 60°C
Operating humidity ≤95% no condensation

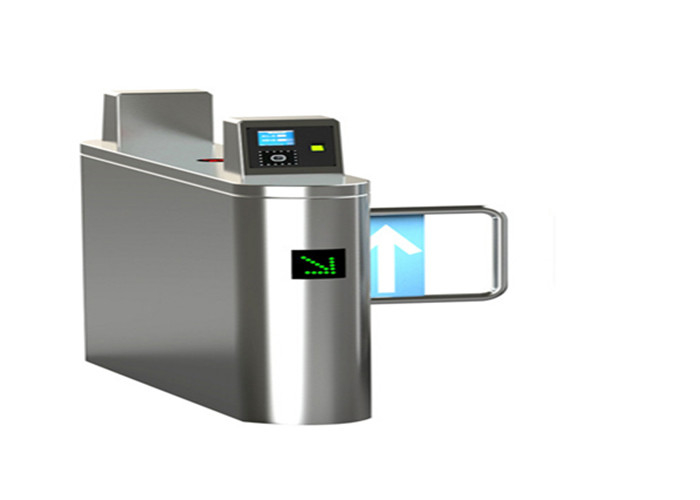

Photo of swing gate with fingerprint device:

AC220V Traffic Swing Barrier Gate Hospital Security 800mm Arm Fingerprint 0

Application locations



1. Industrial zones

2. Administrative buildings

3. Recreation centers

4. Amusement parks

5. Financial institutions

6.Government agencies

7. Airports

8. Bus and railway stations

9. Offices.
