| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-SBK01 |

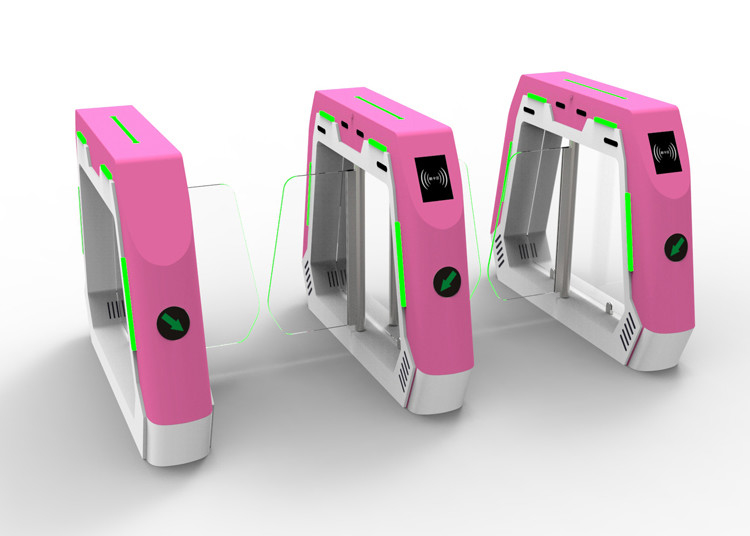

Safety Infrared Sensor Automatic Swing Turnstile Gate For Child Kindergarten Entrance And Exit Barrier
PRODUCT DESCRIPTION
Swing gate is the barrier gate blocking and releasing by swinging the barrier. The material of the barrier are
mostly stainless steel and acrylic. It is mainly used for the management of entries and exits.
The kindergarten swing barrier gate is designed for children which is with beautiful appearance and more saful.
PRODUCT SPECIFICATIONS
| Item | Technicial Parameters |
| Product Name | Swing barrier,Glass Gates |
| Model | SN-SBK01 |
| Brand | SINOMATIC |
| Design Size | 1200*220*1000 mm |
| Cabinet Material | mild steel/ SS304 |
| Relative humidity | -20 ° C ~ 60 ° C, relative humidity 5% ~ 95%, no condensation |
| Standard channel width | 500mm to 600mm |
| Temperature | -20ºC-60ºC |
| Travel speed | 30 persons/min |
| Working environment | indoor and outdoor |
| Input interface |
Relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
| Communication Interface | RS485 (distance ≤ 1200 m), TCP / IP |
| Lane width | ≤1200mm |
| Barrier Opening/Closing Time | 0.1s |
| Automatic reset time after failure | 10 seconds |
| Swing arm transmission angle | 180 degrees |
| Thickness | 1.5mm SS304 |
| Driving Motor | 24V |
| The time required to enter the common state after power on | 3 seconds |
| Supplu Voltage | AC100V to 260V |
| Gate components | chassis, movement, control board and power supply |
| Service life | continuous opening and closing more than 3 million times |
| Structure | Frame structure / Stainless steel housing |
| Working environment | Indoor and outdoor (shed) |
| Turning of the gate | one-way / two-way |
| Drive Motor | DC brushless Motor |
SYSTEM INTEGRATION
Swing gate has standard enter and output interfaces, and is the best choice for system integrators. It may
be simply compatible with IC card, ID card, barcode card, fingerprint and other card reader identification units,
offering civilized and orderly access for entry and exit personnel. Methods to successfully handle personnel out
and in.
PRODUCT ADVANTAGES
1, Fully transparent glass partition and acrylic swing arm, with LED lighting, make it high class and elegant in
the appearance.
2, Cost effective and wide application. It can be used indoor or outdoor( with shed) , such as schools, factory,
gym, stadium, commercial buildings.
3, Unified and standard external electrical interface, which can be connected with various reading and writing
devices, which is convenient for system integration.
MAIN FUNCTIONS AND FEATURES
1. Stainless steel housing, rain-proof laser opening, novel and beautiful.
2. LINIX (the best micro-motor brand in China) brush-less DC motor is used and the surface is electroplated.
3. Length of arm: 500mm to 800mm.
4. Fault detection and alarm functions, easy to use and maintenance.
5. The running status can be programmed and controlled with the built-in keyboard on the main board.
6. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working
automatically within the prescribed time and reset again after the default delay (till fully reset).
7.Anti-breakthrough function. The gate is locked automatically until opening signal received.
8. Synchronization functions (for dual gate equipment).
9.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),
the system will cancel the authority of the current user automatically.
10. Gate can be set as normally open or normally closed.
11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)
12. Direction can be set as unidirectional or bidirectional.
13. The device can be connected to management computer to realize remote control and management.
14. LED direction indicator (optional)
15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
16. Support infrared photocell for anti-pinch and reset function.
DETAIL PHOTO
FAQ
1. Do you provide OEM service?
Yes, we can offer OEM services as follows:
1) We can customize barrier gate according to your needs.
2) We can print your logo on barrier gate, and customize retail box packing and other things you need.
2. Lead time for standard item
1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500sets: 15 working days. For custom-made package
or logo, 3-10 working days longer
3. Do you provide quality guarantee/warranty and after sale service?
We have 1-year warranty. Our well-trained and passionate sales and professional engineers can provide you
with timely help.
4. What are your after-sale services?
1) For all your inquiries, response can be made within 24 hours.
2) Our company is equipped with excellent engineers and sales. We can provide you with first quality products and
the best price.
3) Our experienced engineers can guide you about how to use our products. Call our after-sales team at any time.
