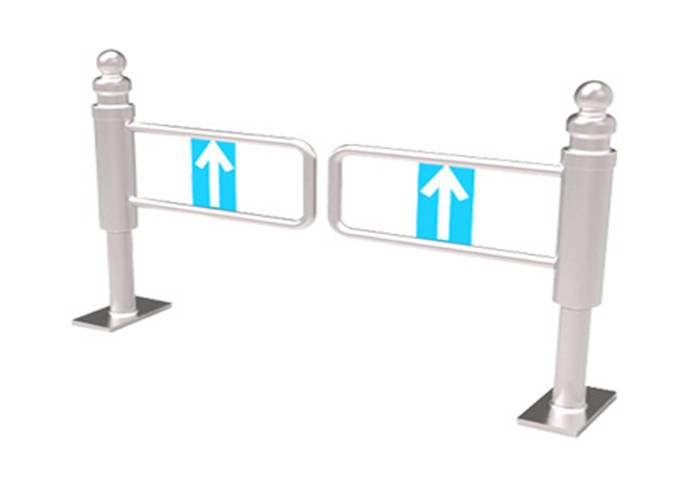

Waist High Swing Turnstile Gate Single Direction Mechanical Manual Control
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-SBM |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T or western Union |
| Supply Ability | 3,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standard | 304 Grade Stainless Steel | HS Code | 86080090 |
|---|---|---|---|
| Application | Indoor/outdoor | Direction | Single Direction |
| Traffic Rate | 30 Person Per Minute | Pillar Diameter | 89mm |
| High Light | Waist High Swing Turnstile Gate,Single Direction Swing Turnstile Gate,Mechanical Manual Control Swing Turnstile |
||
Product Description
Single direction entrance waist high Pedestrian Swing Gate Mechanical manual control
Product descriptions:
Manual swing gate turnstile is a single swing turnstile. The design is fine and light to save the space.
The structure has no electric devices, pure machine design and need no power supplying, pushing the swing gate to pass through. The swing gate is linked together with the movable cylinder and both rotate at the same time.
One unit of swing turnstile can make up a single swing passage. And also can custom-made two units to make up a double swing passage and make the double lane width.
Function Specifications:
Self-recovery function: The machine will be recovery automatically when the pass is completed.
Traffic mode: Single directions free pass, the other direction forbid to pass (The direction can be set, it normally use to the simple entry or exit. ) Operation mode: NO mode (Normal Open)
Framework Specifications:
1.Cylinder material: 304 (default) / 316 grade stainless steel (optional)
2.Thickness of steel plate: 1.2mm (default) / 1.5mm (optional)
3.Finishing: Brushed surface (default) / Polishing surface / electrofacing / baking finish (optional)
4.Swing gate material: 304 (default) / 316 grade stainless steel (optional)
5.Lane width: 600mm (default) / 800mm (max)
6.Swing degree: 90°
Technical Specifications:
Transit Speed: 25~30 passage / minute
Operation temperature: -20° ~+60°
Relative humidity: 0-95% ( Not freezing)
Work Environment: Indoor / outdoor
Customized Features:
Alternative Materials, Finishes and Custom Design
Water-proof and dust-proof design: Systems grade IP55
Model Applications:
Commercial service occasion: Supermarket, market center, etc
Transport station: Bus station, etc
Entertainment occasion: Park, etc
Product size:
Our services
1. Security solution provider, can help you save time and costs.
2.Good quality with competitive price, offer OEM and ODM service.
3. Professional technical supports and great after-sales service.
4. Custom design shape and logo,for large amount, custom logo available for free.
5. Fastest delivery and safe shipping way.
6.Warranty: One year Warranty, from the date of delivery, a lifetime technical support.
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours.
