Infrared Photocells Swing Barrier Gate with 90cm Arm and 24VDC Motor for Secure Access Control
  • Infrared Photocells Swing Barrier Gate with 90cm Arm and 24VDC Motor for Secure Access Control
  • Infrared Photocells Swing Barrier Gate with 90cm Arm and 24VDC Motor for Secure Access Control
Infrared Photocells Swing Barrier Gate with 90cm Arm and 24VDC Motor for Secure Access Control

Infrared Photocells Swing Barrier Gate with 90cm Arm and 24VDC Motor for Secure Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TB105
Product Details
Direction:
Single Or Bi-direction(can Be Set)
Housing Material:
304 Stainless Steel
Case Thickness:
1.2mm
Application:
Indoor/outdoor With Tent
Control Input:
Dry Contact
Warranty:
1 Year
Highlight:

Infrared Photocells Swing Barrier Gate

,

90cm Arm Swing Barrier Gate

,

24VDC Motor Swing Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, , L/C, D/A, D/P
Supply Ability
1000 pcs per month
Product Description
Infrared Photocells Swing Barrier Gate 90cm Arm 24VDC Motor For Entrance
Optical Security Access Control Swing Barrier Gate
Sinomatic Intelligent swing barrier is a premium access control solution featuring precise craftsmanship, comprehensive functions, and high reliability. Designed for high-class communities, intelligent buildings, hotels, subway stations, gyms, and other high-level venues.

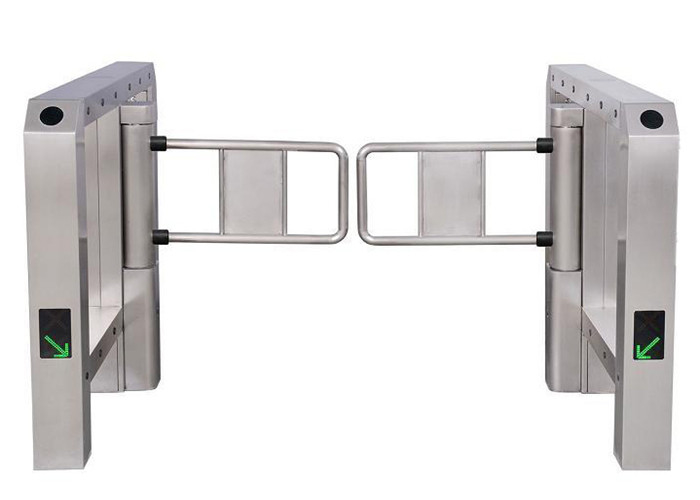

Product Images
Infrared Photocells Swing Barrier Gate with 90cm Arm and 24VDC Motor for Secure Access Control 0 Infrared Photocells Swing Barrier Gate with 90cm Arm and 24VDC Motor for Secure Access Control 1
Features and Functions
  • Compact electro-mechanical design with unique drive and self-lock mechanism
  • Automatic malfunction detection system
  • Input interface for dry contact and switch signal connection
  • Adjustable auto-delay closing
  • Infrared photocells for safety access control
  • Alarm system for unauthorized access and reverse passenger flow
  • Anti-reversing passing protection
  • Auto closing when power is applied
  • Auto open and free access during power failure
  • Adjustable access directions
  • Emergency interface available
  • Traffic light indicating passenger access status
Technical Specifications
Housing dimension 1400×320×990mm
Arm length Maximum 90cm
Motor material Steel and aluminum alloy
Voltage 220V±15% or 110V±15%
Motor type Brush 24VDC motor
Input interface Dry contact
Opening time 1 second
Protection grade IP32
Working temperature -25°C to +50°C
