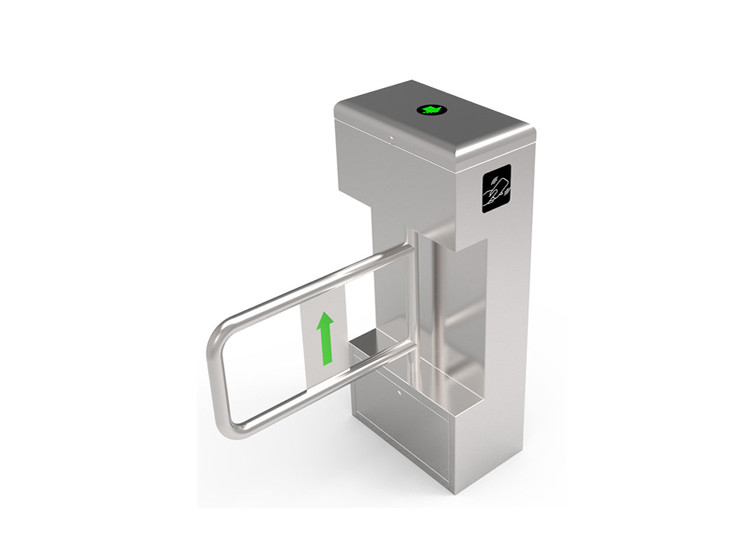

RFID Reader Swing Barrier Turnstile BLDC Motor Face Recognition Acrylic Glass
  • RFID Reader Swing Barrier Turnstile BLDC Motor Face Recognition Acrylic Glass
  • RFID Reader Swing Barrier Turnstile BLDC Motor Face Recognition Acrylic Glass

RFID Reader Swing Barrier Turnstile BLDC Motor Face Recognition Acrylic Glass

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB02
Product Details
304 Stainless Steel, Acrylic
Channel Width:
Standard 600mm (≤800 Can Be Customized)
Thickness Of The Cabinet:
Motor Type:
BLDC Motor
Control Panel:
One For One
Passing Speed:
30~40 Person/minute
High Light:

RFID Reader Swing Barrier Turnstile


BLDC Motor Swing Barrier Turnstile


Acrylic Glass Pedestrian Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000 pcs per month
Product Description

High Security RFID Reader Face Recognition Pedestrian Swing Turnstile Barrier Gate


Swing gate is the barrier gate blocking and releasing by rotating and swinging. The material of the barrier is usually

stainless steel, plexiglass, tempered glass. It is mainly used for the management of entries and exits. The usual

application places only allow people to pass, or for people who tow luggage, and disabled people.




1. Support Full transparent glass partition and acrylic swing arm, with LED lighting, make it high class and elegant in the


2, Cost effective and wide application. It can be used indoor or outdoor (with shed), such as schools, factory, gym,

stadium, commercial buildings.

3, Unified and standard external electrical interface, which can be connected with various reading and writing devices,

which is convenient for system integration.


RFID Reader Swing Barrier Turnstile BLDC Motor Face Recognition Acrylic Glass 0



Material: SS304,thickness is no less than 1.2mm


Manufacturing Technique: CNC laser cutting


Barrier Material: Acrylic glass, SS304 and so on


Gate Opening and Closing time: ≤ 0.4S


Passing Speed: Normally open-35 persons/min; Normally closed-30 persons/min


Communication Connection: relay signal


Power: AC220C±10V,50HZ


Motor: DC Brushless Motor, 24V


Relative Humidity: <95%, No Densation


Operating Temperature: -20°C-60°C


Working environment: indoor and outdoor(added the rain-shed)


Color: -Stainless Steel Brushed / Powder Coating(Optional), or other Color you like


Protection Grade: IP54





1. Can integrate with access control system.


2. Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on

swing barrier control panel.


3. Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control

swing barrier opening and closing time.


4. During power failure, swing barrier will automatically open up to allow free access. When power resume, swing

barrier will automatically close back to resume security level.


5. Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release

reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control

panel from being damaged due to overload.


6. Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way.

This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.


7. Gate length can be easily customized to fit site requirement.


8. Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close

at the same time.


9. Gate motor mechanism is self lock at open and close position.


10. Support bi-directional opening




Description Parameters
Lane Width Max. 800mm
Pass Speed 30 persons/min
Power supply AC220V/110V,50/60Hz
Drive Mode Motor drive
Power Consumption 40W
Opening time 0.3S
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life 5,000,000 cycles
Carton package size 40x30x105cm
Working Environment -20°C~+60°C
Gross Weight 30KGS
