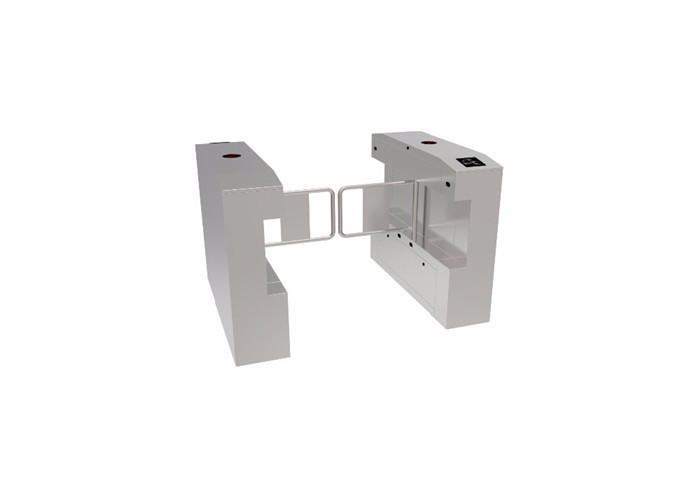

Pedestrian Biometrics Swing Barrier Gate SUS304 Fingerprint RFID Reader

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB03
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Size 1200*260*1000(mm) Arm Length 600mm(default)
Material SUS304 Thickness(1.5mm) Input Voltage AC220/110V ±10%V
LED Indicator Both Direction Warranty 1 Year
High Light

Pedestrian Biometrics Swing Barrier Gate


Fingerprint RFID Swing Barrier Gate


SUS304 Swing Arm Turnstile

Leave a Message
Product Description

Multiple access control Pedestrian biometrics fingerprint recognition reader swing barrier gate



Flat Barrier swing gates also referred to as supermarket gates,Chrome Barrier,peddal gates ,etc. It is a high effective solution for access control of high volume people flow In self -service places. High compability and widely accomodations wind it high recommendations and market approval.


Product dimension:

Pedestrian Biometrics Swing Barrier Gate SUS304 Fingerprint RFID Reader 0

Pedestrian Biometrics Swing Barrier Gate SUS304 Fingerprint RFID Reader 1

Features and functions:

1.High secure level and widely applications. Our flap barrier gate will limit shoplifting and

Theft chances in most self-service places. and offer a higher security level for owners. Due to

This feature, swing barrier gates are widely used in Supermarket, shopping malls, Library,

Hospital ,Goverment authority,etc.

2.Anti-bump, Anti clip,anti-tailgating,anti-intrusion.During operation if the swing arm meets

Any resistance, it will stop immediately. After pre set time, the arm will return to close position.

This function effectively prevents pedestrian especially children from bumping, clipping,

striking,etc. Illegal pass like intrusion, Tailgating,piggyback,etc will be detected and prohibitted.

3.Easy installation and free maintenance. This swing barrier gate can be easily installed and

No extra supporting apparatus will be needed. No special maintenances will be needed after

It starts working.

4.More intelligent. self-examing and pre-set time operations allow our swing barrier gates more

Intelligent and convenient in working. If there is no passing through in pre-set time, it will return to

Close status. When in fire or power failure, the door will open automatically.

5.Multiple access control .Our swing barrier gate upports almost all types of access control like RFID cards,Bar codes, Biometric ,etc.

6.Bi-directional passing through and high passing effeciency. Bi-directional passing
Through reduces the need for more gates. High passing speed and accomodation for wheel
Chair, strollers,etc increase the passing effeciency.


Related products:

Pedestrian Biometrics Swing Barrier Gate SUS304 Fingerprint RFID Reader 2

Specifications of Pedestrian Swing Gate:


Arm material Acrylic or stainless steel
Housing material 304 or 316 stainless steel
Housing Dimensions L1200 x W280 x H980mm
Arm length 530mm(Standard),Max:750mm
Net Weight 80kg
Motor voltage DC24V
Power Voltage AC220V±10%/ AC110V±10%
Frenquency 50Hz/60Hz
MCBF 5 million cycles
Transit speed Max:30 persons/min
Operating environment Indoor/outdoor (Shelter)
Operating temperature -20°C ~ 60°C
Operating humidity ≤95% no condensation
