Access Control Security Swing Barrier Gate With Face Recognition Temperature Detection
  • Access Control Security Swing Barrier Gate With Face Recognition Temperature Detection
  • Access Control Security Swing Barrier Gate With Face Recognition Temperature Detection

Access Control Security Swing Barrier Gate With Face Recognition Temperature Detection

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW05
Product Details
Dimension:
1200x220x1000mm
Working Voltage:
DC 24V
Service Life:
More Than 10 Million Cycles
Warranty:
12 Months
Power Supply:
AC100V~240V; DC24V
IP Rate:
IP54
Highlight:

LED indicating Swing Barrier Gate

,

Security Swing Barrier Gate IP54

,

Acoustic Alarming Swing Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,000 pcs per month
Product Description

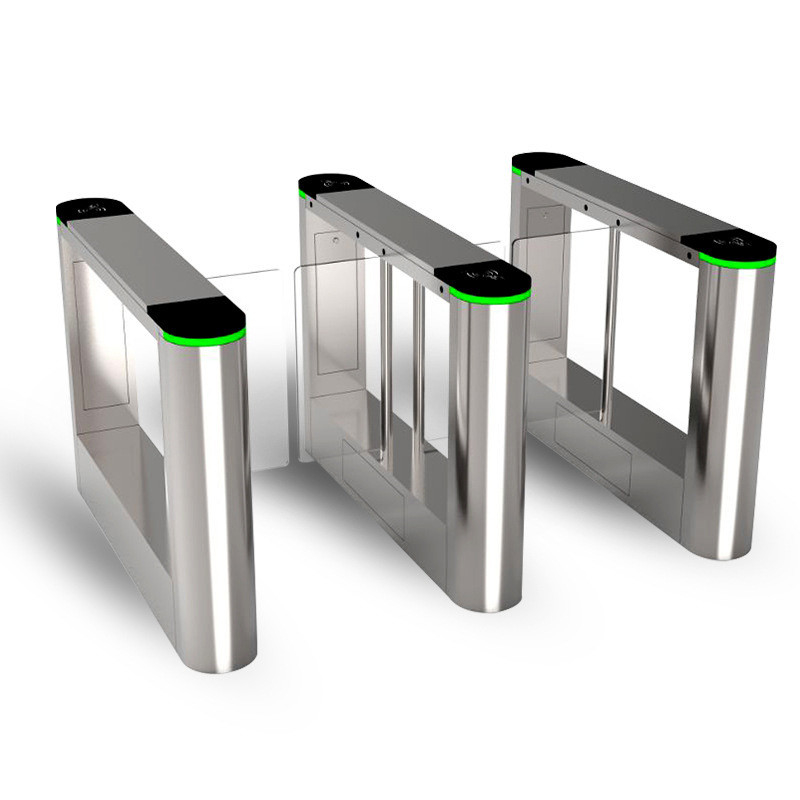

Access Control Security Swing Barrier Gate With Face Recognition Temperature Detection
Advanced Access Control Solution
This BLDC motor swing barrier gate provides reliable and efficient access control, ensuring only authorized personnel can enter designated areas. Designed for high-traffic environments, this attractive turnstile handles demanding conditions while offering flexible configuration options to match your facility's branding and layout requirements.
Product Advantages
  • Built-in fault self-test and alarm prompt functions for simplified maintenance
  • Anti-clip and anti-collision protection with automatic reset functionality
  • Anti-shock feature with automatic swing arm locking when no open signal is detected
  • Flexible one-way and two-way operation modes for versatile access control
  • Remote management capabilities through centralized computer systems
Technical Specifications
Frame Material SS304/SS316
Dimensions 1200*220*1000 mm (customizable)
Control Signal Dry Contact
LED Indicator One
Card-reading Window Two
Rated Power 100W
Operating Temperature -25℃ to +60℃, RH ≤90%
Communication Interface RS485, distance ≤1200m
Power Supply AC 220V/110V ±10% 50/60MHZ (optional)
Transit Speed 30-35 persons per minute
Package Plywood Box
Main Functions & Features
  • Configurable working methods via main panel controls
  • Advanced anti-pinch and anti-collision protection with 2Kg force limit
  • Anti-illegal entry and intrusion prevention with automatic reverse closure
  • Gate protection mechanisms to prevent motor damage from external impacts
  • Synchronization capability for multi-channel installations
  • Auto-reset function with adjustable timing (1-60 seconds, default 10s)
  • Photocell reset functionality with 4 or 6 pairs
  • Photocell anti-pinch protection with 4 pairs
  • Compatibility with access control, consumption, ESD, and e-ticket systems
  • Flexible one-way or two-way access control options
  • Remote control and administration capabilities
  • Integrated LED indicator lamps
