DC24V Waterproof Swing Barrier Gate IR Beam With Biometric System
  • DC24V Waterproof Swing Barrier Gate IR Beam With Biometric System
  • DC24V Waterproof Swing Barrier Gate IR Beam With Biometric System

DC24V Waterproof Swing Barrier Gate IR Beam With Biometric System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB03
Product Details
Size Of Housing:
1200*280*980mm
Material Of Housing:
304/316 Stainless Steel
Working Temperature:
-20°C~60°C
Arm Material:
Stainless Steel
Passing Speed:
30 Person/minute
LED Indicator:
Both Direction
High Light:

DC24V Waterproof Swing Barrier Gate

,

Biometric System Swing Barrier Gate

,

IR Beam Stainless Steel Turnstiles

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

Waterproof entrance control stainless steel turnstiles WITH biometric system , 180 degree swing



Swing barrier systems provide effective means for pedestrian flow control at entrances of production facilities, administrative buildings, company offices, schools, university campuses, stadiums, leisure and fitness facilities, amusement parks and zoos, shopping outlets.



Features of Pedestrian Swing Gate:

  • Support bi-directional opening
  • Can integrate with access control system.
  • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
  • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
  • During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
  • Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
  • Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
  • Gate length can be easily customized to fit site requirement.
  • Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
  • Gate motor mechanism is self lock at open and close position.

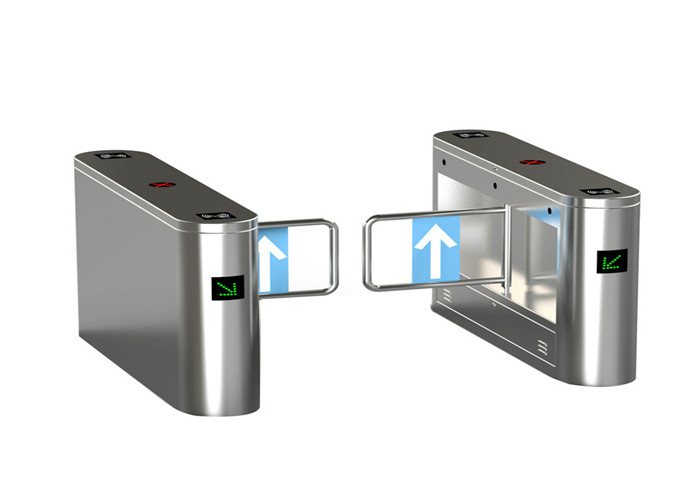

DC24V Waterproof Swing Barrier Gate IR Beam With Biometric System 0



Specifications of Pedestrian Swing Gate:



Housing material 304 stainless steel
Dimensions L1200 x W280 x H980mm
Arm length 530mm(Standard),≤750mm
Weight 80kg
Power of motor DC24V
Voltage AC220V±10%
Frenquency 50Hz
MCBF 5 million cycles
Transit speed 30 persons/min
Operating environment Indoor/outdoor (Shelter)
Operating temperature -20°C ~ 60°C
Operating humidity ≤95% no condensation





























Photo of product:

DC24V Waterproof Swing Barrier Gate IR Beam With Biometric System 1

DC24V Waterproof Swing Barrier Gate IR Beam With Biometric System 2
