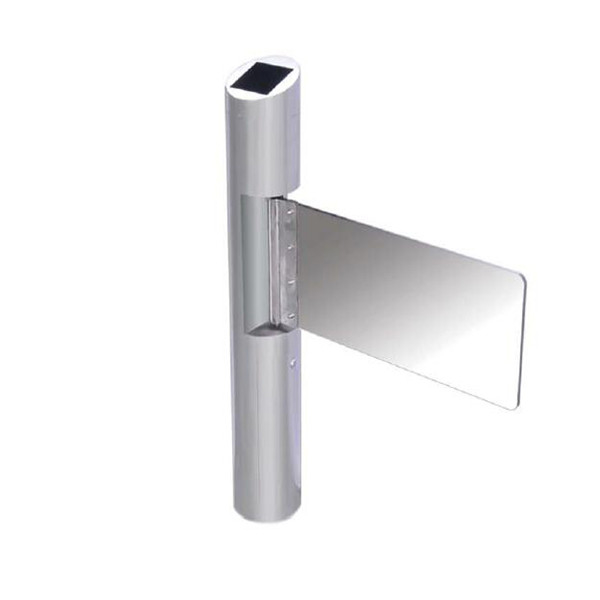

Auto motorized stainless steel swing barrier gate with optional IR sensor
SN-SB01 is an automatic motorized stainless steel tubular swing barrier. Swing barrier has smallest installation footprint while offering widest opening clearance to allow big boxes, trolley, wheelchair, baby stroller or user with big luggage to pass through with comfort.
SN-SB01 compact size and turbular shape allow it to easily fit into places with very limited space. Access control and time attendance reader can be integrated into top cover.
SN-SB01 design is simplified to achieve optimum function at more affordable cost. Control system mechanism is modular for easy maintenance servicing and part replacement.
SN-SB01 is typically used together with flap barrier or turnstile as manual lane for handicapped user in building lobby. Ideal for low traffic and light duty site that requires more affordable solution.
1. WIDEST OPENING
Compared to tripod turnstile and flap barrier, swing barrier allow widest opening clearance.
The slim form factor only take up minimum space from passage clearance space. 2 unit swing barrier can be installed on same lane to give maximum clearance 1210mm (inclusive 10 mm clearance).
2. CUSTOMIZE OPENING
Swing barrier allow customizable opening. Arylic gate can be cut short according to clearance available at site to
achieve perfect fitting.Control system will auto synchronize both swing barrier installed in the same lane. Both swing barrier will open and close at the same time.
3. EASY INTEGRATION
A push button or access control reader can be used to trigger the swing barrier to open via simple dry contact signal. After delay timer elapsed, swing barrier will automatically close back by itself.
4. DOUBLE SAFETY
Optional IR sensor can be installed to auto reverse the gate if obstacle is detected during closing. This prevent the closing gate to hit user that is still in the lane passage.
5. EMERGENCY RECOVERY
During power failure, swing barrier will automatically open for free pass through. This will fast escape in the event of emergency. When the power resume, swing barrier will automatically close back.
Specifications of Pedestrian Swing Gate:
Power supply input
AC220±10%V 50Hz/AC110±10% 60Hz
Optimal flow rate
25 to 30 person per minute
brushless DC servo motor
Openning or closing time
less than 2S
Reset time when power on
