304 Stainless Steel Swing Barrier Gate with 900mm Arm Length and IP44 Protection
  • 304 Stainless Steel Swing Barrier Gate with 900mm Arm Length and IP44 Protection
  • 304 Stainless Steel Swing Barrier Gate with 900mm Arm Length and IP44 Protection
  • 304 Stainless Steel Swing Barrier Gate with 900mm Arm Length and IP44 Protection
304 Stainless Steel Swing Barrier Gate with 900mm Arm Length and IP44 Protection

304 Stainless Steel Swing Barrier Gate with 900mm Arm Length and IP44 Protection

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TB101
Product Details
Motor Voltage:
DC 24V
Arm Length:
Max 900mm
Arm Material:
304 Stainless Steel
Warranty:
1 Year
Case Thickness:
1.5mm
Package:
Carton Or Wooden Box
Highlight:

Tripod Access Swing Barrier Gate

,

900mm Arm Swing Barrier Gate

,

Swing Gate Turnstile IP44

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, , L/C, D/A, D/P
Supply Ability
1000 pcs per month
Product Description
Tripod Access Swing Barrier Gate Stainless Steel IP44 900mm Arm
Stainless Steel IP44 Swing Gate Turnstile Passenger Tripod Access System
Pedestrian Swing Gate Overview
Our intelligent swing barrier represents a premium product line featuring precise craftsmanship, comprehensive functionality, and high reliability. Designed for high-class communities, intelligent buildings, hotels, subway stations, gyms, and other sophisticated venues, this system integrates seamlessly with modern access control management for intelligent security solutions.
Key Features
  • Compact electro-mechanical design with unique drive and self-lock mechanism
  • Automatic malfunction detection system
  • Input interface for dry contact and switch signal connection
  • Adjustable auto-delay closing functionality
  • Infrared photocells for enhanced safety access
  • Alarm system for unauthorized access and reverse flow detection
  • Anti-reversing passing protection
  • Automatic closing when powered on
  • Automatic opening and free access during power outages
  • Adjustable access directions
  • Emergency interface availability
  • Traffic light indicators for passenger access guidance
Technical Specifications
Housing dimension φ114.3*990mm
Arm length 500-900mm
Motor material Steel and aluminum alloy
Voltage 220V±15% or 110V±15%
Motor type Brush 24V DC motor
Input interface Dry contact
Opening time 1 second
Protection grade IP32
Working temperature -25°C to +50°C

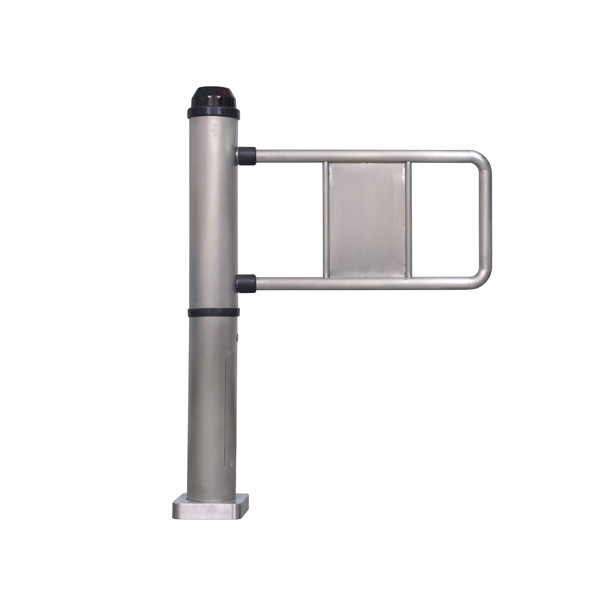

Product Image
304 Stainless Steel Swing Barrier Gate with 900mm Arm Length and IP44 Protection 0
