Subway / Metro Electronic Pedestrian Swing Gate Waist Height Turnstiles
  • Subway / Metro Electronic Pedestrian Swing Gate Waist Height Turnstiles
  • Subway / Metro Electronic Pedestrian Swing Gate Waist Height Turnstiles

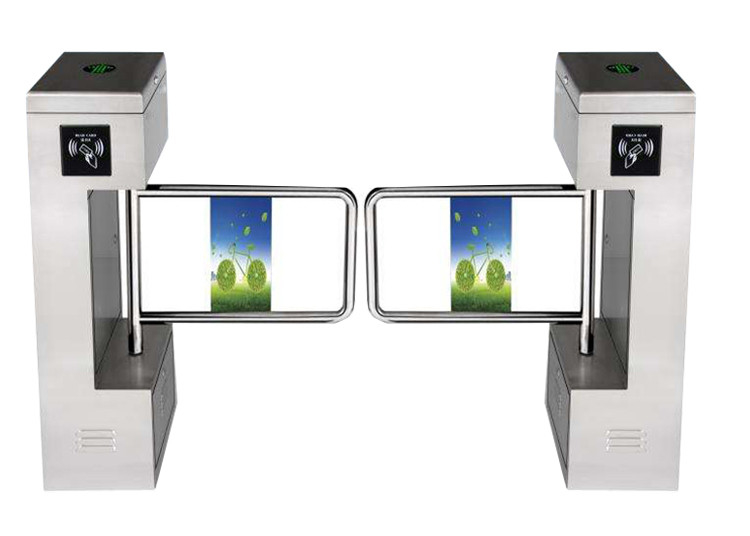

Subway / Metro Electronic Pedestrian Swing Gate Waist Height Turnstiles

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB02
Product Details
Arm Length:
500 To 800mm
Thickness Of Housing:
1.2mm Or 1.5mm
Working Temperature:
-20°C~60°C
Reset Time When Power On:
3s
Standard:
European Standard
Application:
Indoor Or Outdoor With Rainshed
Highlight:

security swing gate

,

swing barrier gate

,

Metro Electronic Pedestrian Swing Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

Waist height electronic fast speed wide channel pair using swing arm barrier for handicapped person



Application of Pedestrian Swing Gate:



Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Pool,Residence Area,Enterprise’s Entrance

and Exit Attendance,Gateway Guard,Charge Management etc.



Subway / Metro Electronic Pedestrian Swing Gate Waist Height Turnstiles 0



Features of Pedestrian Swing Gate:

  • Support bi-directional opening
  • Can integrate with access control system.
  • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
  • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
  • During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
  • Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
  • Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
  • Gate length can be easily customized to fit site requirement.
  • Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
  • Gate motor mechanism is self lock at open and close position.



Specifications of Pedestrian Swing Gate:



Description

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

20 to 25 person per minute

Gate swing angle

180 degree

Gate opening speed

1.5s

Reset time when power on

3s

Working temperature

-20°C~60°C



Case of Pedestrian Swing Gate:



Subway / Metro Electronic Pedestrian Swing Gate Waist Height Turnstiles 1
