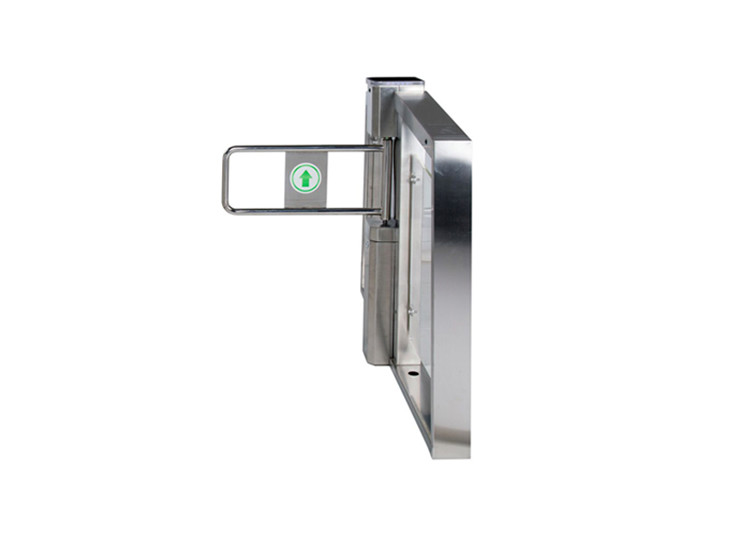

Acrylic SUS304 5 Million Cycle Pedestrian Swing Gate BLDC Motor
  • Acrylic SUS304  5 Million Cycle Pedestrian Swing Gate BLDC Motor
  • Acrylic SUS304  5 Million Cycle Pedestrian Swing Gate BLDC Motor
  • Acrylic SUS304  5 Million Cycle Pedestrian Swing Gate BLDC Motor

Acrylic SUS304 5 Million Cycle Pedestrian Swing Gate BLDC Motor

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB06
Product Details
Service Life:
5 Million Times
Power Supply:
AC100V~240V, DC24V
Arm Lenght:
High Light:

5 Million Cycle Pedestrian Swing Gate


Acrylic SUS304 Pedestrian Swing Gate


BLDC Motor Swing Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

High Throughput Rate And High Pedestrian Safety 5 Million Long Life Cycle Swing Gate




P-type swing gate is specially designed for the disabled, large package entry, individuals with carts, trolley

entry etc. It is fully motorized bi-directional gate having smooth & soundless drive mechanism along with all

the safety features to ensure high comfort to the user. P-Type barrier swings 90 degree in both the directions.


The swing barrier provides a reliable and effective method to ensure that only authorized users are allowed to

access every area of the building. It meets the fire emergency requirements, all channels are opened for power

failure, and there is an independent fire alarm interface. The compact unit makes it easy to construct a

multi-channel setup, while the multiple colors allow you to perfectly match this turnstile to your hall or brand.





1. Fast swing doors for immediate lane closure.


2. Support bi-directional opening


3. Can integrate with access control system.


4. Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed

on swing barrier control panel.


5. Electromechanical locking to withstand forced entry attempts.

6. Audio and visual signals to indicate unauthorised usage.

7. Long life cycle, low maintenance costs.

8. Easy passage, even with bags or luggage.

9. High throughput rate and high pedestrian safety.

10. Modular system consisting of base and extension elements.


11.Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to

control swing barrier opening and closing time.


12.During power failure, swing barrier will automatically open up to allow free access. When power resume,

swing barrier will automatically close back to resume security level.


13. Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed.

Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also

protect the motor and control panel from being damaged due to overload.


14. Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage

way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the



15. Gate length can be easily customized to fit site requirement.


16. Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open

and close at the same time.


17. Gate motor mechanism is self lock at open and close position.




Structure parameters
Housing material 304 grade stainless steel
Thickness 1.5mm
mainboard Independent development mainboard
Arm material Acrylic/SUS304
Technical parameters
Size 1200*184*1014mm
Lane width of single unit 800mm
Lane width of a pair 1600mm
Passing speed 30--35people/min
Open/close speed 0.2--0.6 sec
Weight 50KG for one side
Turning angle 90 degree
MCBF 5.000.000 times
Application Indoor or outdoor
Rotating directional Single way or Bi-directional adjustable
Noise <55db
Operating temperature -25 to 70℃
Relative humidity 5% to 95%
Package Carton box inside (Wooden case optional)
Electronic parameters
Power supply 110-220V/AC, 24V/DC
Rated power 100W
Input signal Dry contact
Driving motor Brushless motor
Method of position Limiter



Swing barrier is typically used together with flap barrier or turnstile as manual lane for handicapped user or

user with big luggage.
