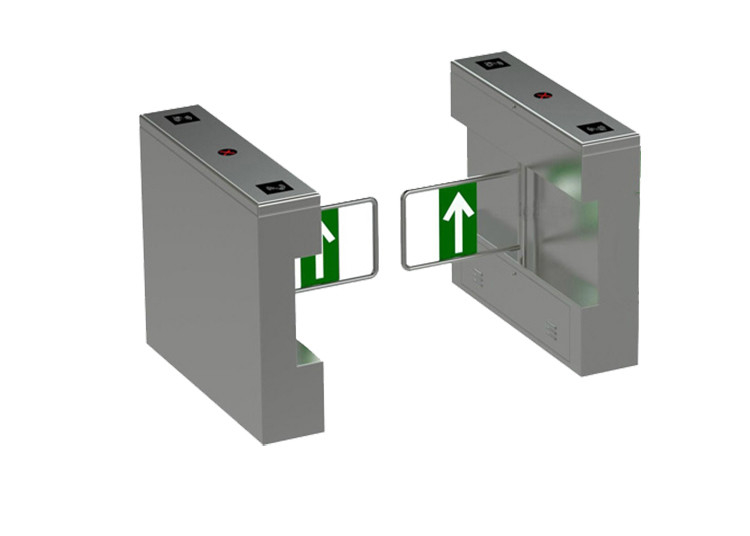

RS485 BLDC Motor Pedestrian Swing Gate Auto Arm TCP SS304

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB03
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 3,000pcs per month
Product Details
Motor BLDC Motor Pass Speed 30 Person/minute
Material SS304 Control Signal Dry Contact Or Level Signal
Control Voltage 24V Battery Not Include
High Light

BLDC Motor Pedestrian Swing Gate


RS485 Pedestrian Swing Gate


TCP Pedestrian Barrier Gate

Leave a Message
Product Description

Fast Opening And Steady Running 5 Million Time Operation Silver Color Auto Arm Gate


About swing barrier control system


The intelligent channel management system can adopt non-con-tact IC, ID card or bar code card identity

authentication technology, combined with mi-cro-control technology, communication technology and computer

network technology,thus realizing full-scale channel real-time monitoring and management functions such
as computer ticket sales, ticket inspection, inquiry, summary, statistics, reports, etc.


Highlights: The cabinet adopts high-standard welding technology, adds slot-throwing treatment, manual fine

grinding treatment, brushless motor anti-violent impact, can be automatically reset, built-in electronic control

circuit part adopts standard industrial-grade trunking layout fixed, and the whole electric control part All use

first-line brand parts, and the equipment life can be up to 5 million operations.






Arm length(optional)
180 degrees( swing arm drive angle)
Swing direction
Supply Voltage
Drive motor
DC brushless motor(24V)
Input interface
Dry contact signal or 12V level signal or 12V pulse signal with
Pulse width ≥100ms, drive current ≥10mA
Communication interface
Indicator light
LED indicator, card reader
Opening Transit speed
40 persons per minute
Closing Transit speed
25-30 persons per minute
Flap Opening/Closing Time
Power-on time
The time required to enter the passage state after power-on is 3s.
Work environment
Working temperature
-20℃ ~ 60℃
≤90%( No condensation)


RS485 BLDC Motor Pedestrian Swing Gate Auto Arm TCP SS304 0




1. working method can be set by the buttons on the main panel


2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset

again after a default delay, the force 2Kg.


3.Anti-illegal in, anti-intrusion, auto close for reverse direction.


4. Anti-collision, gate closes when no valid signal is given.


5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force



6. Gates can be synchronous for multiple lanes


7.Auto-reset function.  If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable),

default time is 10s.


8. Reset function by photocells


9. Anti-pinch function by photocells


10. Swing barrier is with standard electrical interface for the integration of various readers and writers.

11. Swing barrier can count how many passenger has passed and will show it in the LED display (Optional).

12. Direction display to guide passenger which direction is to go.

13. Card-reading with memory or without memory function.

14. Swing barrier can control the population inside in the control of software




Intelligent Vertical Swing Turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading

card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access

of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent

community , enterprises and institution that need intelligent access management.
