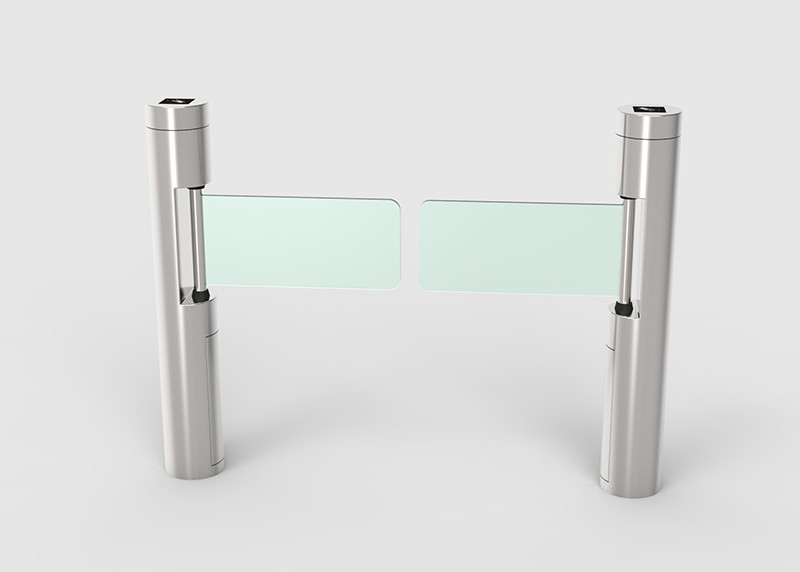

730mm Arm Swing Barrier Gate 0.5S Motor Drive 180 Degree Turning
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-SB01 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T or western Union |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Driving Motor | DC 24V | Motor Type | Brushless DC Motor |
|---|---|---|---|
| Arm Length | 530mm To 730mm | Arm Material | Ss304 Or Acrylic |
| Arm Turning Angle | 180 Degree | Working State | Single/ Bi-directional |
| Service Life | 5 Million Times | Motor Voltage | DC24V |
| Input Voltage | 220V/110V | Packing | Carton/wooden |
| High Light | 730mm Arm Swing Barrier Gate,0.5S Swing Barrier Gate,Motor Drive Swing Barrier Turnstile |
||
Product Description
Customizable opening 24 hours continuous application dry contact control cylinder swing barrier gate system
DESCRIPTION
Swing arm barrier, adopts high standard brushed 304 stainless steel, double brushed surface treatment,
dustproof, rustproof, rainproof design, suitable for indoor and outdoor use(better with shelter).
It is widely used for applications like stadium, apartment, gym, museum, station, library and high-end buiding etc.
| Description | Parameters |
| Lane Width | Single 730mm/ Pair 1500mm |
| IP | IP54 |
| Pass Speed | 30 persons/min |
| Power supply | AC220V/110V,50/60Hz |
| Drive Mode | Motor drive |
| Max Power Consumption | 40W |
| Opening time | 0.5S |
| Humidity | ≤90% coagulation free |
| Noise | ≤50dB |
| Service Life | 5,000,000 cycles |
| Working Environment | -20°C~+60°C |
| Gross Weight | 25KGS |
PRODUCT DIMENSION
Advantage:
1. Matte finished housing surface, dustproof and rainproof design for outdoor use.
2. Durable DC brushless motor, highly integrated mechanism, 100% heavy duty operation.
3. Sufficient infrared sensors(optional) for protection, anti-intrusion, and anti-tailgating.
4. Compatible with other access control system.
5. Convenient installation and maintenance
Main Functions and Features of the System
1. High standard brushed 304 stainless steel,laser cutting,elegant appearance.
2. DC motor,brand drive module,runs smoothly,low noise.
3. Equipped high precision angle encoder to monitor the core movement in real time makes the core more stable and
longer life.
4. High speed and high passing rate.
5. Re-position function. After card reading, barrier will be locked up if passenger not pass within the valid time ,
the valid time can be set.
6. Gate open when power off for emergency
7. (Optional)Audible sound prompt and display,against illegal entry and incorrect entry
8. (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly
9. (Optional) Support gate open while power failure and recover N/C mode after power on.
10. (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction
after reading the card.
FAQ
1.What is your products biggest advantage?
----- DC Brushless Motor , no maintenance all the of life, No Attrition, Low-Noise, High Intelligence
2.What is your flap gates opening and closing time?
-------- <=0.5s.
3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with rainshed added)
4. Can I customize it?
--------Yes,We are the manufacturer, provide OEM/ODM service.
5.What's you warranty?
-------- Default is 1 year time warranty
