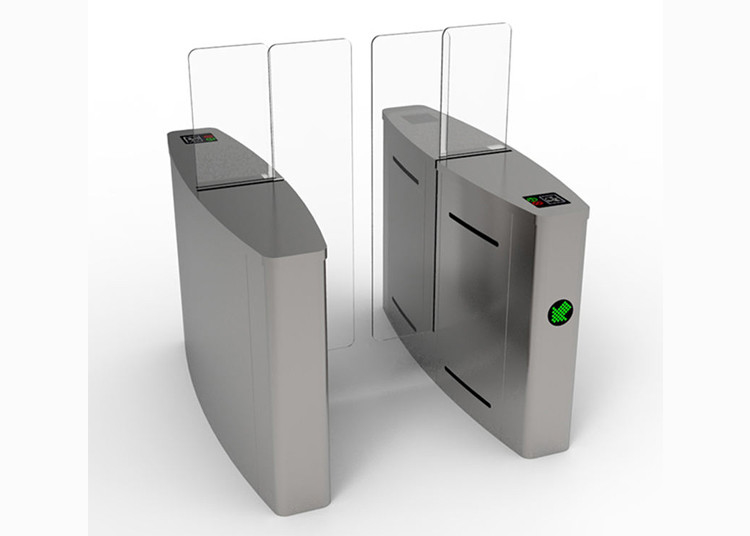

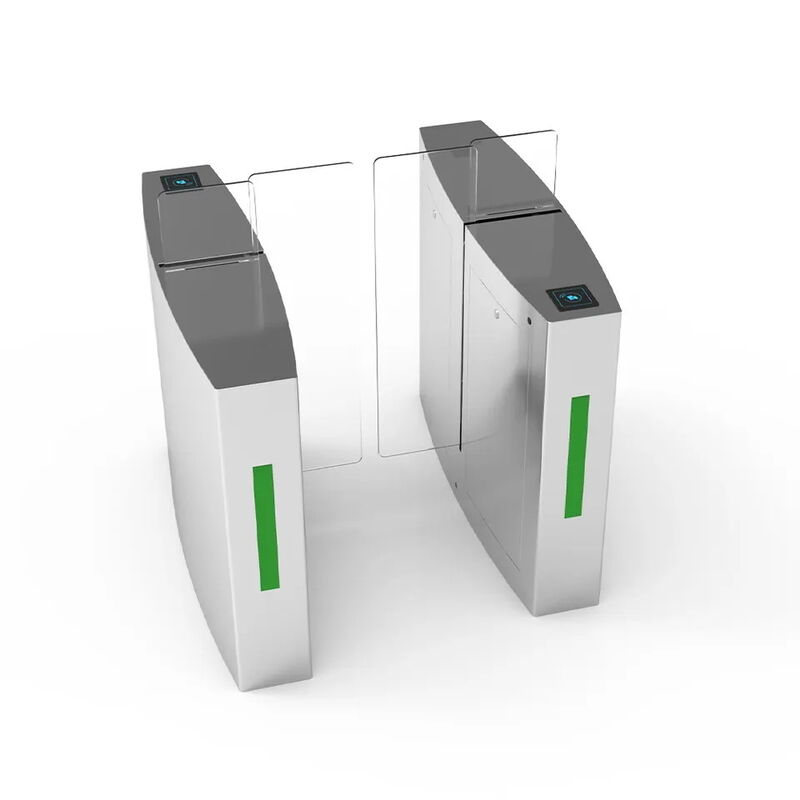

Anti Pinch Sliding Turnstile Gate with Face Recognition and BLDC Motor
Advanced Access Control Solution
This intelligent sliding turnstile gate features anti-pinch functionality, face recognition, temperature check, and intelligent logic judgement for secure access management.
Product Highlights
Constructed from brushed stainless steel, this turnstile creates a seamless and elegant access point that blends perfectly into indoor environments.
- Compatible with various access control systems including RFID, push button, fingerprint, and biometric devices
- Emergency automatic opening for free passage during critical situations
- Ideal for elegant and luxury entrance solutions
- Fast pass speed with superior anti-trailing performance
- Smooth, quiet operation with advanced structural design
- Anti-climb, anti-creeper features with high-grade appearance
- Infrared anti-pinch design with dormancy function for enhanced safety
- Comprehensive sound and light alarm system for various security events
- Automatic gate opening during power failure to meet fire protection requirements
Product Functions and Features
- Fault detection and alarm functions for easy maintenance
- Programmable running status controlled via built-in keyboard
- Mechanical anti-pinch function with automatic motor shutdown and reset
- Anti-breakthrough function with automatic locking until opening signal received
- Infrared photocell support for anti-pinch and reset functions
- Automatic reset function cancels user authority after prescribed time
- Configurable as normally open or normally closed operation
- Compatible with IC/ID card readers, bar codes, fingerprints, and more
- Single-direction or bi-directional operation settings
- LED direction indicator for clear user guidance
- Automatic gate operation during power on/off cycles
- Comprehensive alarm system for illegal and reverse intrusion detection
Product Specifications
| Case Material |
SS304, 1.2mm thickness |
| Production Process |
CNC Laser Cutting |
| Size |
1200*330*980mm (Customization acceptable) |
| Power Input |
AC100-240V, 50/60HZ |
| Operation Voltage |
DC24V, 3A, Power: 40W (Brushless Motor Optional) |
| Electromagnetic |
Duty Cycle 100% |
| Passage Width |
550mm |
| Flap Height |
1400mm (default) |
| Flap Material |
Acrylic |
| Passage Direction |
Single directional/Bi-directional |
| Operating Time |
1S |
| Throughput Rate |
30-40 persons/minute (Normally Closed) or 40 persons (Normally Open) |
| Reset Time after Power on |
3S |
| MCBF |
5,000,000 Cycles |
| Reset Time after Failure |
10S |
| Automatic Reset Function |
Automatically locked within set time (Time Adjustable) |
| Operation Humidity |
0~90% (No Freezing) |
| Operation Temperature |
-20℃~+60℃ |
| Operation Environment |
Indoor, Outdoor (Shelter) |
| Protection Level |
IP45 |
| Communication Interface |
Standard RS485 interface, distance ≤1200 meters |
| Input Interface |
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA |
Frequently Asked Questions
Q: What are the advantages of your tripod turnstile gate compared to other suppliers?
A: Our turnstile gates feature proprietary PCB boards with audio prompts, custom-designed mechanisms for neat internal organization, and high-quality electromagnetic components and selector sensors.
Q: What is the minimum order quantity for turnstile gates?
A: We support sample orders for testing purposes.
Q: What is the lead time for samples?
A: Hot-sale models are available from stock for sample orders. For orders over 20 pieces, lead time is 5-7 working days.
Q: Does your turnstile gate support bar code and QR code reading?
A: Yes, our turnstile gates support integration with RFID, bar code, QR code, fingerprint, and facial recognition systems. We also provide access control system SDK for secondary development.
Q: Do you accept OEM and ODM orders?
A: Our factory is equipped with CNC laser cutting and bending machines, making OEM orders easily accommodated. We also offer LED PCB board ODM logo services to support your local brand promotion.
Q: Does your price include the access control system?
A: The access control system is optional and not included in the standard price.
Q: What payment options do you accept?
A: We accept T/T (Bank transfer), Western Union, Money Gram, and other payment methods.
Q: How long is your production time?
A: Sample orders require 5 working days; bulk orders require 10-15 working days.
Q: What are your shipping methods and delivery times?
A: Sea freight: 20-30 days to nearest seaport; Air freight: 2-5 days to nearest airport; Express: 3-5 days to your doorstep. Delivery typically takes 5-15 working days after payment confirmation.
