BLDC Motor Optical Turnstile Gate Access Control Sliding Turnstile Time Attendance System
  • BLDC Motor Optical Turnstile Gate Access Control Sliding Turnstile Time Attendance System
  • BLDC Motor Optical Turnstile Gate Access Control Sliding Turnstile Time Attendance System

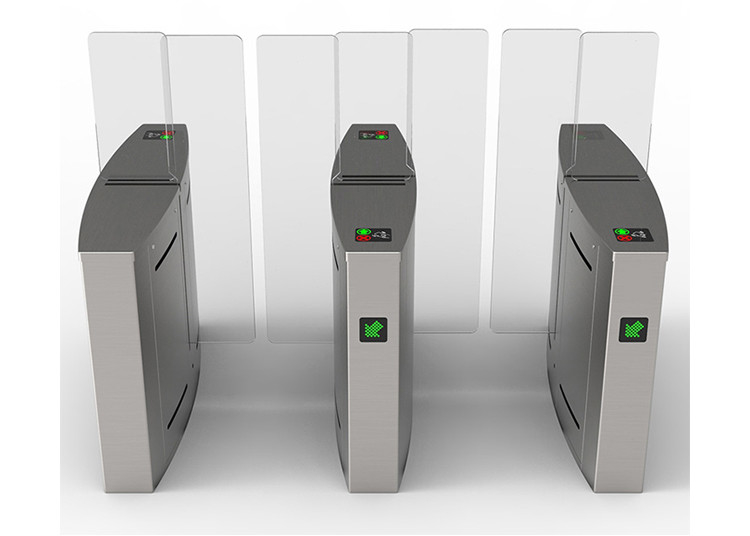

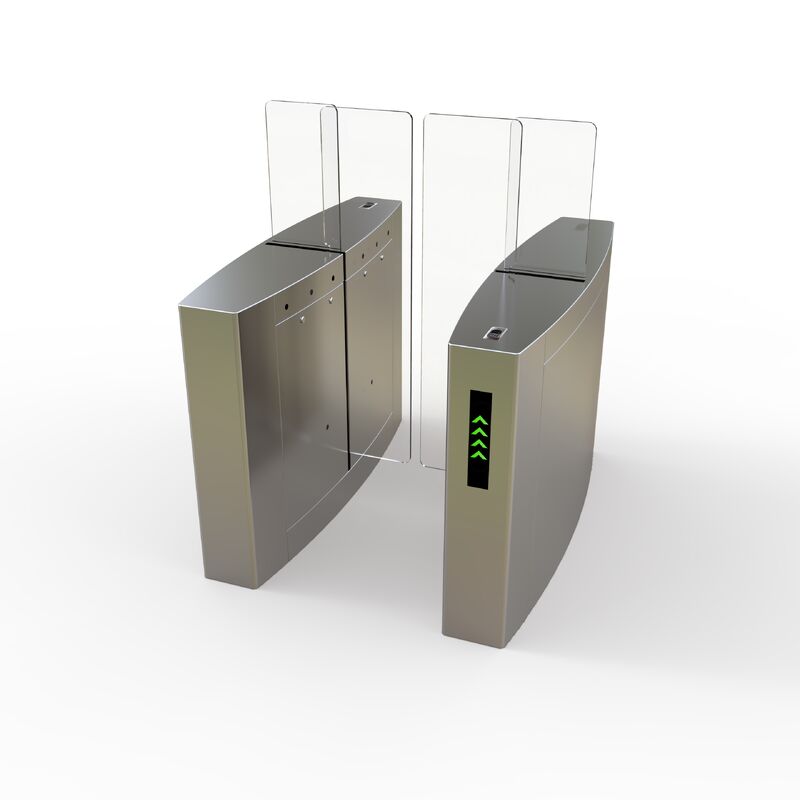

BLDC Motor Optical Turnstile Gate Access Control Sliding Turnstile Time Attendance System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB02
Product Details
Dry Contact:
12V
Flap Height:
800 To 1500 Mm
Power Consumption:
100W/unit
Motor Type:
BLDC Motor
Motor Voltage:
DC24V
Application:
Indoor/outdoor
High Light:

Office Optical Turnstile Gate

,

SS304 Optical Turnstile Gate

,

BLDC Motor Access Control Sliding Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

Intelligent Rifd Card reader Entrance Quick Pass Full Height Sliding Turnstile Gate



PRODUCT DESCRIPTION



The sliding gate housing comes out from stainless steels pressing which is good-looking, anti-rust and durable. It can be integrated with magnetic card, bar code, IC and ID card by standard electrical interface, thus good-order and civilized passing means are realized and unauthorized persons will never be allowed to get in. Meanwhile, to meet fire-control passage requirements, sliding barrier arms will open automatically if power off and there will be enough time to organize people to get out.


* Sliding turnstile gates are in line with the modern trends of all the turnstile series. Thus, you can find them quite popular in office buildings as a pedestrian flow control solution.


* As the name suggests, the door open and close horizontally in a sliding way. Doors are made of acrylic, which can be replaced by the tempered glass as an optional choice.


* The cabinet is made of 304 stainless steel which is strong and anti-corrosion for long-term serving. Customers can also use 316 stainless steel as an optional choice but the price will be a little higher.


* Obviously you can find that the cabinet and sliding doors have no sharp edge as we take passengers' safety into consideration.



* Arrow shape led indicates the status of passage. When the lights are in green color, it means the lane is ready, and red means you can not pass this way.


* Pairs of sensors are equipped for high-level security, additional pairs are optional for top safety.


* These sliding turnstile gates are usually integrated with face recognition, fingerprint recognition, and other biometric identifications, also other traditional modules are supported, such as IC card, ID card, RFID card, bar code, etc.


* Two motors can be fixed in one cabinet for customers who want to form multiple-lane pedestrian solutions. Brush motor is standard and brushless or servo motor is optional.



BLDC Motor Optical Turnstile Gate Access Control Sliding Turnstile Time Attendance System 0



PRODUCT HIGHLIGHTS



The body is made from brushed stainless steel which creates a seamless and elegant access point to

blend into most indoor environment.


It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint

and Biometric device).



In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.

Optical Turnstiles are suit for elegant and luxury entrance solutions.



PRODUCT SPECIFICATIONS



ITEM
SPECS
Place of Origin
China

Guangdong
Brand Name
SINOMATIC
Model Number
SN-SLB02
Product name
Sliding turnstile barrier
Material
304 Stainless Steel
Size
1200*330*1000mm (accept customization)
Warranty
1 Year
Certificate
CE Approved
Application
Office
Direction
Two
Weight
80kg
Motor
DC Brushless Motor
Working environment
Indoor Outdoor



PRODUCT FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance



2. The running status can be programmed and controlled with the built-in keyboard on the main board



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset)



4. Anti-breakthrough function. The gate is locked automatically until opening signal received



5. Support infrared photocell for anti-pinch and reset function



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically



7. Gate can be set as normally open or normally closed



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller

needed)



9. Direction can be set as single-direction or bi-direction



10. LED direction indicator



11. Gate auto opens when power off and auto close when power on



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
