DC24V BLDC Sliding Turnstile Gate Full Height Anti Pinch For Business Center
  • DC24V BLDC Sliding Turnstile Gate Full Height Anti Pinch For Business Center
  • DC24V BLDC Sliding Turnstile Gate Full Height Anti Pinch For Business Center

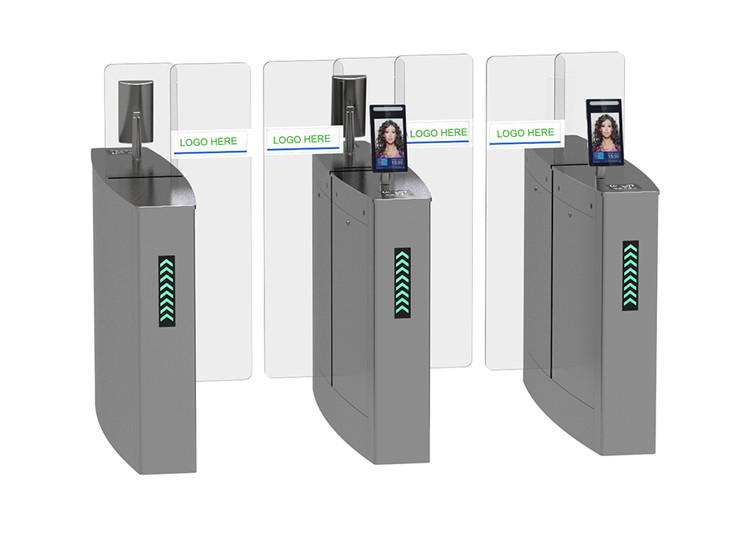

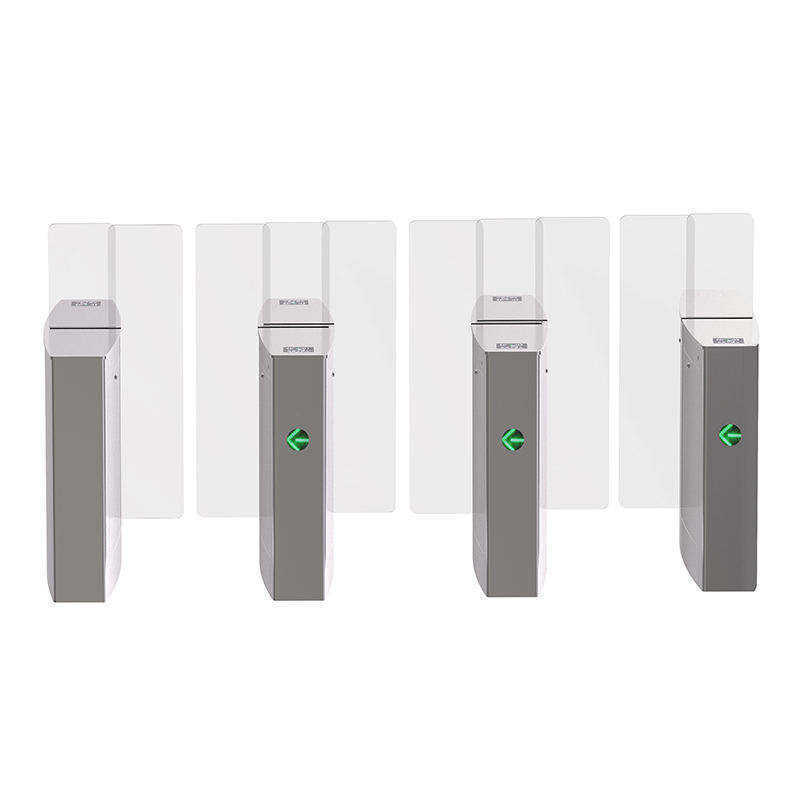

DC24V BLDC Sliding Turnstile Gate Full Height Anti Pinch For Business Center

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB02
Product Details
Material:
SS304/Acrylic
Flap Height:
800 To 1500 Mm
Size:
1200*330*1000 Mm
Motor Type:
BLDC Motor
Motor Voltage:
DC24V
Power Input:
AC100V~240V, 50/60Hz; DC24V
High Light:

DC24V BLDC Sliding Turnstile Gate

,

600mm Passage Sliding Turnstile Gate

,

Anti Pinch Electronic Turnstile Gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

Popular Security Entrance Full Height Sliding Turnstile Gate For Business Center



PRODUCT DESCRIPTION



Intellgient sliding barrier(half height or full height optional) is the intelligent access management produced by our

company after several years R & D, this equipment organically integrate machinery electronics microprocessor

control,and all kinds of different reading and writing equipment.



Through figuring all kinds of different reading and

writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction

indicator interface, realizing the access intelligent control and management by the mutual coordination.



DC24V BLDC Sliding Turnstile Gate Full Height Anti Pinch For Business Center 0



PRODUCT HIGHLIGHTS



The body is made from brushed stainless steel which creates a seamless and elegant access point to

blend into most indoor environment.


It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint

and Biometric device).



In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.

Optical Turnstiles are suit for elegant and luxury entrance solutions.



PRODUCT SPECIFICATIONS



Name
Full height sliding turnstile
Type
Barrier Sliding
Brand
SINOMATIC
Material
304 Stainless Steel
Function
Access control
Arm Material
Acrylic
Dimension
1200 * 330 * 1000 mm
Net Weight
70kg/pc
Passage Width
600mm (standard)
Passing Direction
Single directional / Bi-directional
MCBF
5 million



PRODUCT DIMENSION

DC24V BLDC Sliding Turnstile Gate Full Height Anti Pinch For Business Center 1



PRODUCT FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance



2. The running status can be programmed and controlled with the built-in keyboard on the main board



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset)



4. Anti-breakthrough function. The gate is locked automatically until opening signal received



5. Support infrared photocell for anti-pinch and reset function



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically



7. Gate can be set as normally open or normally closed



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller

needed)



9. Direction can be set as single-direction or bi-direction



10. LED direction indicator



11. Gate auto opens when power off and auto close when power on



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
