Building Access Control Turnstiles Tempered Glass Full Height Sliding Turnstile Gate
  • Building Access Control Turnstiles Tempered Glass Full Height Sliding Turnstile Gate
  • Building Access Control Turnstiles Tempered Glass Full Height Sliding Turnstile Gate
Building Access Control Turnstiles Tempered Glass Full Height Sliding Turnstile Gate

Building Access Control Turnstiles Tempered Glass Full Height Sliding Turnstile Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB02
Product Details
Motor Type:
24V BLDC Motor
Power Supply:
AC100V~240V; DC24V
IP:
IP54
Control Signal:
12V Level Signal/ Relay Signal
Direction:
Bi-directional
Flow Rate:
30~35 Person/ Minute
Highlight:

Access Control Turnstiles BLDC motor

,

Tempered Glass Access Control Turnstiles

,

Sliding Turnstile Gate IP54

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

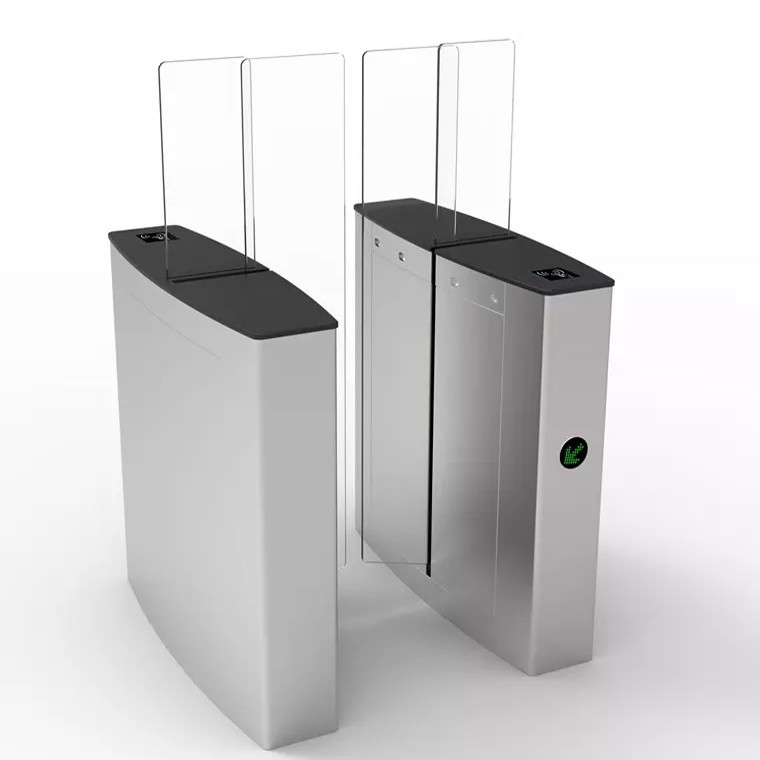

Building Access Control Turnstiles - Tempered Glass Full Height Sliding Turnstile Gate
RFID Card Reader Office Building Tempered Glass Full Height Sliding Turnstile Gate
Sliding turnstile gates represent the modern standard in turnstile technology, making them an ideal pedestrian flow control solution for office buildings. These gates feature horizontal sliding doors that open and close smoothly. The doors are constructed from durable acrylic, with tempered glass available as an optional upgrade for enhanced aesthetics and security.
The cabinet is manufactured from 304 stainless steel, providing exceptional strength and corrosion resistance for long-term reliability. For environments requiring maximum durability, 316 stainless steel is available as a premium option.
Technical Specifications
Product Name Sliding Turnstile Barrier Gate For Access Control System
Model No. SN-SLB02
Cabinet Material 304 Stainless Steel
Dimensions Cabinet: 1200*330*980mm
Motor Type Single motor
Weight About 80 kgs
Arm Length ≤300mm
Passage Width ≤600mm
Dry Contact 12V
Material Thickness 1.2 to 1.5mm
Card-reading Window Two
Direction Bi-directional
Service Life 10 million times
Operating Temperature -25℃ ~ +60℃
Related Humidity ≥90%RH
Communication Interface TCP/IP
Power Supply AC 220V/110V ±10% 50/60MHZ (optional), DC24V
Flow Rate 30-40 persons per minute
Product Highlights
  • Brushed stainless steel construction creates a seamless, elegant access point that blends into indoor environments
  • Compatible with various access control systems including RFID devices, push buttons, fingerprint scanners, and biometric devices
  • Emergency automatic opening feature allows free passage during critical situations
  • Ideal for elegant and luxury entrance solutions requiring sophisticated access control
Product Functions and Features
  • Fault detection and alarm functions for easy maintenance
  • Programmable running status controlled via built-in keyboard on main board
  • Mechanical anti-pinch function with automatic motor shutdown and delayed reset
  • Anti-breakthrough function with automatic locking until opening signal received
  • Infrared photocell support for enhanced anti-pinch and reset functionality
  • Automatic reset function cancels user authority after preset time (default 5 seconds)
  • Configurable as normally open or normally closed operation
  • Compatible with various card readers including IC/ID cards, barcodes, and fingerprints
  • Direction settings for single-direction or bi-directional operation
  • LED direction indicator for clear user guidance
  • Automatic opening during power loss and closing when power restored
  • Comprehensive alarm system for illegal intrusion and reverse intrusion detection
Building Access Control Turnstiles Tempered Glass Full Height Sliding Turnstile Gate 0
