BLDC Motor Access Control Barriers AC100V Full Height 270mm Arm

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000 pcs per month
Product Details
Housing Material 304 Grade Stainless Steel Max Flow Rate 30 Person Per Minute
IR Sensor 4 Paris(default) Motor BLDC Motor
Power Supply AC100V~240V Working Voltage DC24V
High Light

BLDC Motor Access Control Barriers

,

AC100V Access Control Barriers

,

270mm Arm Sliding Wing Turnstiles

Leave a Message
Product Description

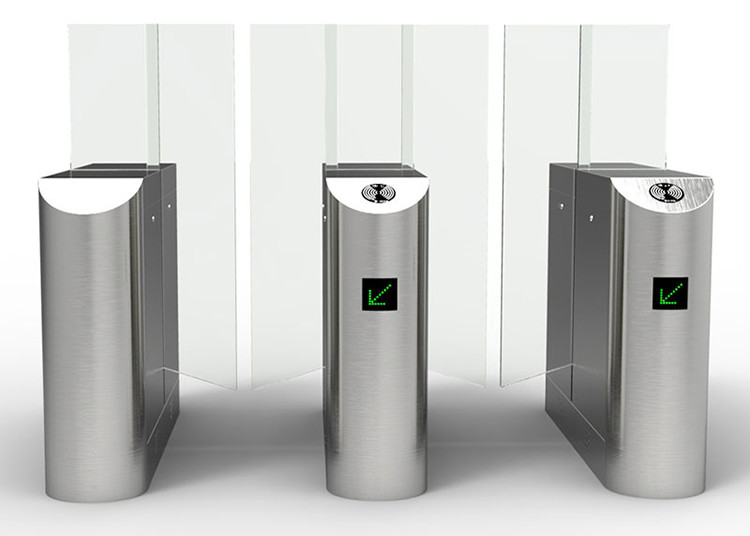

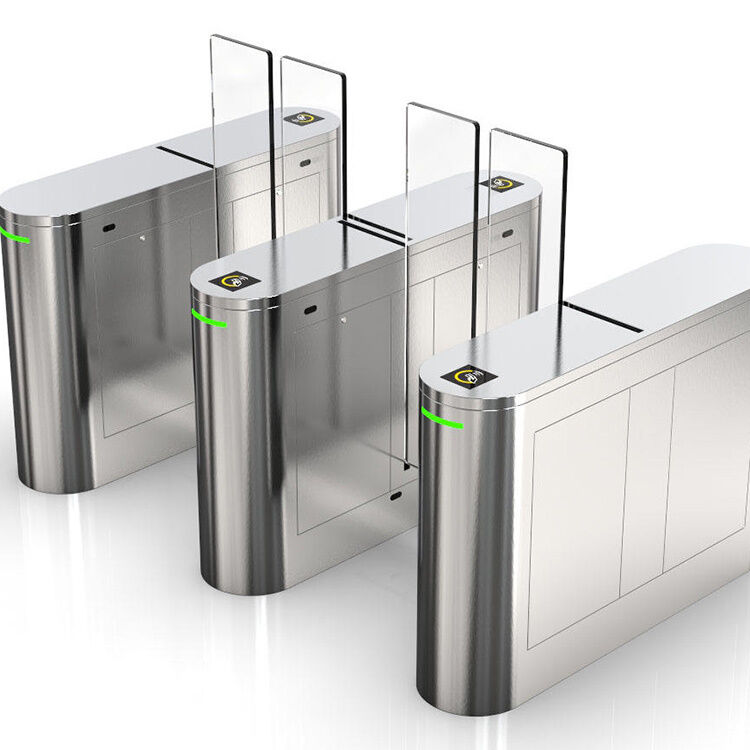

Security Full Height Sliding Wing Access Control Barriers with Automatic Sensor



PRODUCT DESCRIPTION
1. Faster pass speed and better performance for anti-trailing.
2. The design of connecting rod - run smoothly without noise.
3. Anti-climb, anti-creeper, strict management and higher grade appearance which offering graceful passage.
4. Infrared anti pinch design and dormancy function when barrier is blocked to achieve a more safe passage.
5. Sound and light alarm, including illegal intrusion, enter from wrong direction, trailing and overdue passing etc.
6. Gate auto open when power is off to meet the fire protection requirements.



BLDC Motor Access Control Barriers AC100V Full Height 270mm Arm 0

TECHNICIAL SPECIFICATIONS



Product Name
Automatic Access Control Sliding Turnstile Gate
Model No.
SN-SLB01
Cabinet Material
304 Stainless Steel
Dimensions
Cabinet:1200*330*980mm
Motor Type
Single motor
Weight
About 70KG
Arm Length
270mm
Passage Width
550-600mm
Dry Contact
12V
Material Thickness
1.5mm
Card-reading Window
Two
Direction
Bi-directional
Service Life
At least 5 million times
Operating Temperature
-25℃ ~ +60℃
Related Humidity
≥90%RH
Communication Interface
TCP/IP
Power Supply
AC100V~240V
Passing speed (NC)
25-30 persons per minute
Passing speed (NO)
30-35 persons per minute



PRODUCT FUNCTION AND FEATURES



1. Problem-self-checking function.


2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading;

One direction card reading and another freely. And single direction photocell controlled passing and close. Working

ways can be set in the control panel.


3. When power off, arm open automatically and power on again, arm will be held automatically.


4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the

control panel.


5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile

will cancel this passing right. And the regulated time period for passing can be set by managers.


6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the

Swing barrier and then take a valid card to be read for passing.



7. Direction display to guide passenger which direction is to go.


8. Anti-rush function: If there is no open signal, arm will be holding tightly.


9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through

the sliding barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close

automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a

while with very slight force. Also it will alarm.


10. Swing barrier is with standard electrical interface for the integration of various readers and writers.
