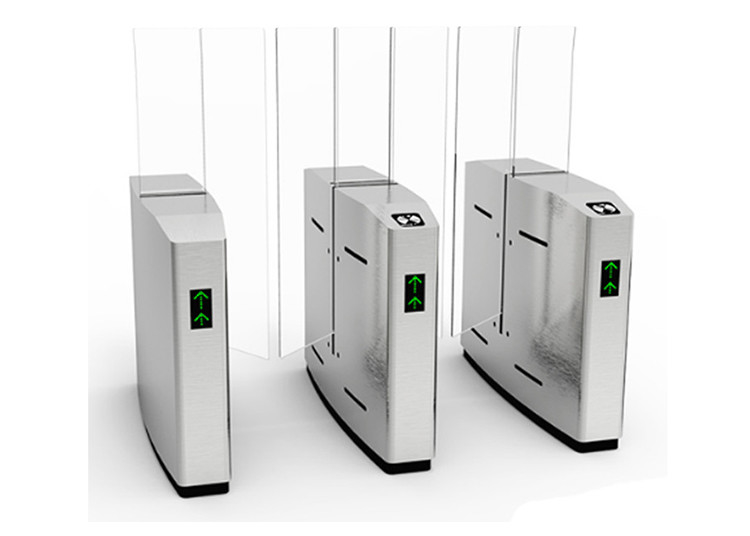

Brushless Motor Access Control Turnstiles Anti Pinch 550mm Width
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-SLB02 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T or western Union |
| Supply Ability | 1,000 pcs per month |
Product Details
| Passage Width | 500 To 550mm | Motor Type | BLDC Motor |
|---|---|---|---|
| Motor Voltage | DC24V | Barrier Material | Acrylic |
| Control Device | RFID/fingerprint/face/push Button | Working Environment | Indoor / Outdoor |
| High Light | Brushless Motor Access Control Turnstiles,Anti Pinch Access Control Turnstiles,550mm Width Sliding Barrier Gate |
||
Product Description
Fingerprint Access Control Full Automatic Brush-Less Motor Sliding Barrier Gate Access Control System
PRODUCT DESCRIPTION
Sliding barrier gate is one of the passage management equipment, mainly used for pedestrian passage management;
it has the characteristics of fast opening, safety, and convenience, and is an ideal management and grooming device
for high-frequency pedestrian access; it has been widely used in airports, subway stations, and stations , Docks, sceni
c spots, parks, student dormitories, unit pedestrian passages, etc., can cooperate with smart cards to realize off-type
ticketing management system functions and form unattended management of personnel entry and exit. Basically
composed of a main box and a movable wing board, it has a blocking function for unauthorized personnel
TECHNICAL SPECIFICATIONS
| Dimension | 1200*330*1000mm |
| Case Material | SS304 stainless steel,acrylic |
| Pass width | 550mm |
| SS304 Material thickness | 1.2mm |
| Passage direction | Single directional / Bi-directional |
| Passing rate | 30-40 persons/min |
| Communication interface | Dry contact |
| Opening method | ID / IC card verification,infrared induction,button |
| MCBF | 5 million times |
| Infrared sensor | 4 pairs |
| Power | 60-100w |
| Working temperature | -20ºC~75ºC(Low temperature type can be customized) |
| Working environment | Indoor |
| Working humidity | ≤90%(without condensation ) |
| Power input | AC220±10% 50Hz |
| Mechanism | DC 24V Brushless motor,low noise |
| Protective function | Hall limit, clutch anti-collision, infrared anti-pinch, illegal intrusion infrared alarm |
PRODUCT FUNCTION AND FEATURES
1. Fault detection and alarm functions, easy to use and maintenance
2. The running status can be programmed and controlled with the built-in keyboard on the main board
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working
automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Support infrared photocell for anti-pinch and reset function
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),
the system will cancel the authority of the current user automatically
7. Gate can be set as normally open or normally closed
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller
needed)
9. Direction can be set as single-direction or bi-direction
10. LED direction indicator
11. Gate auto opens when power off and auto close when power on
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
