BLDC Motor Half Height Turnstile Automatic Pedestrian Sliding Glass DC24V

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000 pcs per month
Product Details
Flap Height 1.4m To 1.8m Pass Speed 30 Person/minute
Passage Width 500 To 550mm Motor Type BLDC Motor
Motor Voltage DC24V Barrier Material Acrylic
High Light

BLDC Motor Half Height Turnstile

,

Automatic Pedestrian Half Height Turnstile

,

DC24V Turnstile Entrance Gates

Leave a Message
Product Description

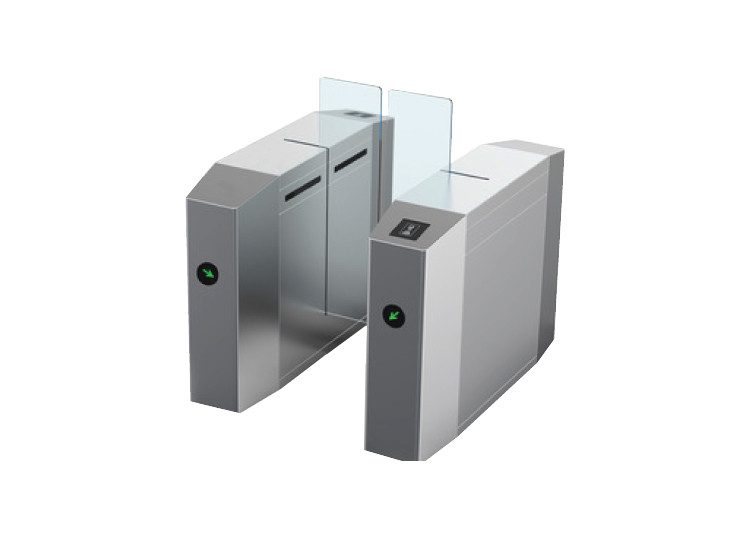

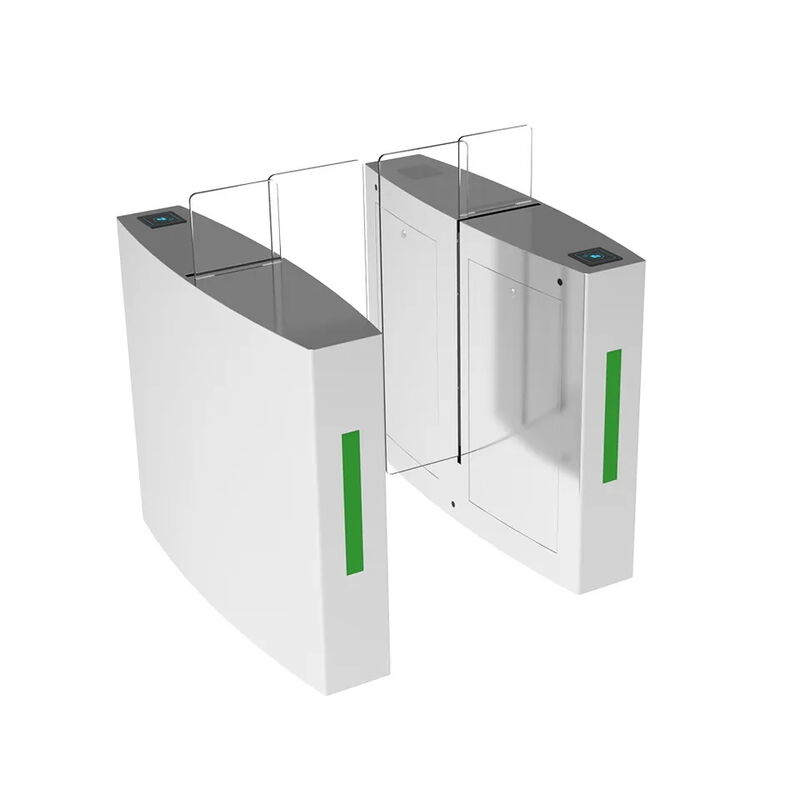

Automatic Pedestrian Entrance / Exit Sliding Glass Access Control Turnstile



PRODUCT DESCRIPTION



SINOMATIC sliding barrier gate is an intelligent access management device developed and produced by our company

after many years. This device organically integrates mechanical, electronic, microprocessor control and various reading

and writing technologies are supported.



The slide gate turnstile is with high-quality DC brushless motor.The motor is configured and advanced control system

which carried to truly achieve precise control, stable performance with no maintenance.Lossless mechanism structure

is based on high technology adopted to ensure long lifespan.The matrix type photoelectric stereoscopic detection

technology is adopted to sensitively detect the behaviors that threaten the passageway safety, such as illegal intrusion,

reverse passing, tail-gating, and give out alarms through sound, light, etc.The turnstile can be combined with other

security systems.



BLDC Motor Half Height Turnstile Automatic Pedestrian Sliding Glass DC24V 0



Our advantages



The appearance of the equipment is made of stainless steel cut by laser then welding, beautiful and generous, rust-proof,

durable, and the external use of standard electrical interface, can easily integrate the bar code card, ID card, IC card and

other card readers into the equipment, it provide a civilized and orderly way, but also to eliminate illegal personnel access;

In addition, the system is specially designed to meet the requirements of fire protection, in the event of emergency, to ensure

the passage unimpeded, facilitate the timely evacuation of personnel;



PRODUCT FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance



2. The running status can be programmed and controlled with the built-in keyboard on the main board



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset)



4. Anti-breakthrough function. The gate is locked automatically until opening signal received



5. Support infrared photocell for anti-pinch and reset function



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically



7. Gate can be set as normally open or normally closed



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller

needed)



9. Direction can be set as single-direction or bi-direction



10. LED direction indicator



11. Gate auto opens when power off and auto close when power on



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



PRODUCT SPECIFICATIONS



Model
SN-SLB02
Case Material
SS304, 1.2mm thickness
Production Process
CNC Laser Cutting
Size
1200*330*980mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W( Brushless Motor Optional)
Electromagentic
Duty Cycle 100%
Passage Width
550mm
Flap height
1400mm(default)
Flap Material
Acrylic
Passage direction
Single directional/Bi-directional
Operating time
1S
Throughput Rate
30-40 persons/minute(Normally Closed) or 40 persons/(Normally Open)
Reset Time after Power on
3S
MCBF
5,000,000 Cycles
Reset Time after failure
10S
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
Operation Humidity
0~90%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA
