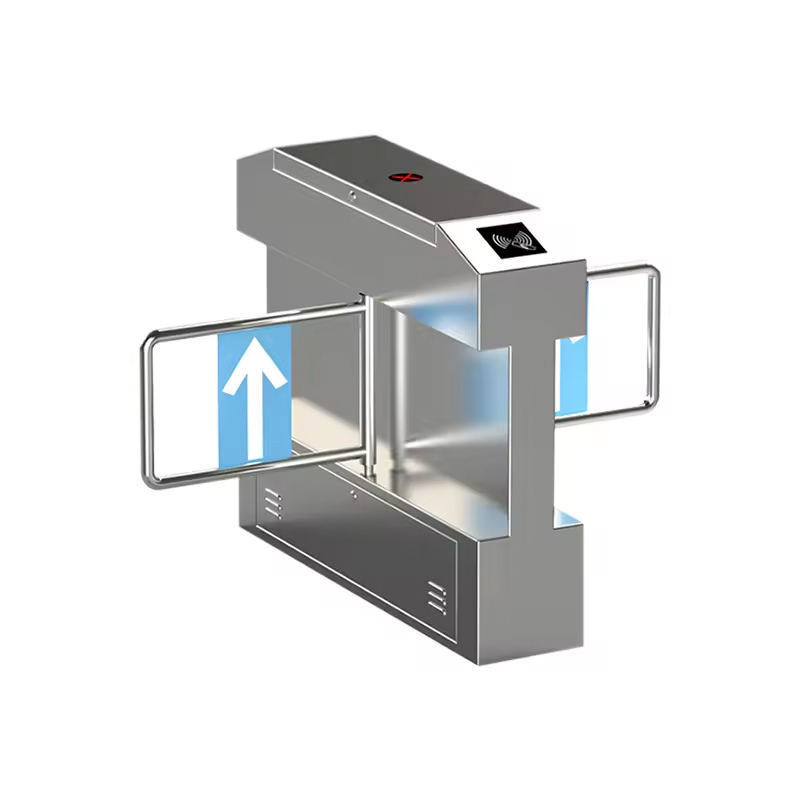

AC220V Fingerprint Swing Barrier Gate with 800mm Arm Length for Hospital Security
  • AC220V Fingerprint Swing Barrier Gate with 800mm Arm Length for Hospital Security
  • AC220V Fingerprint Swing Barrier Gate with 800mm Arm Length for Hospital Security
AC220V Fingerprint Swing Barrier Gate with 800mm Arm Length for Hospital Security

AC220V Fingerprint Swing Barrier Gate with 800mm Arm Length for Hospital Security

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW03
Product Details
Body Size:
1200*280*980mm
Arm Length:
Max 800mm
Working Temperature:
-20°C~60°C
Arm Material:
Stainless Steel
Passing Speed:
30 Person/minute
LED Indicator:
Entry And Exit
Highlight:

AC220V Traffic Swing Barrier Gate

,

800mm Arm Swing Barrier Gate

,

Fingerprint Pedestrian Swing Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
3,000pcs per month
Product Description
AC220V Traffic Swing Barrier Gate Hospital Security 800mm Arm Fingerprint
Hospital Security Traffic Pedestrian Swing Gate
This traffic swing barrier gate is primarily installed at high-traffic entrances and exits of shopping malls and supermarkets. Designed to operate in normally closed mode, the gate retracts into the pedestal and allows free exit via sensors while restricting unauthorized entry.
Key Features
  • Customizable gate length to fit specific site requirements
  • Bi-directional opening capability for both entry and exit
  • Seamless integration with access control systems
  • Dry contact trigger opening with programmable auto-close timer
  • Dual dry contact control (NC for open, NO for close) for precise access timing
  • Automatic gate opening during power failure with auto-close upon power restoration
  • Built-in safety clutch disengages motor drive when obstructed, minimizing impact force
  • Optional safety IR beam for obstacle detection and automatic gate reversal
  • Synchronized opening when multiple gates are installed in the same passage
  • Self-locking motor mechanism at open and close positions
Technical Specifications
Product Type Fingerprint Device Swing Turnstile
Body Material 304 Stainless Steel (316 Optional)
Dimensions L1200 x W280 x H980mm
Arm Length 530mm (Standard), ≤750mm
Weight 80kg
Motor Power DC24V
Voltage AC220V±10%
Frequency 50Hz
MCBF 5 Million Cycles
Transit Speed 30 Persons/Minute
Operating Environment Indoor/Outdoor (Shelter)
Operating Temperature -20°C to 60°C
Operating Humidity ≤95% No Condensation
Swing Gate with Fingerprint Device
AC220V Fingerprint Swing Barrier Gate with 800mm Arm Length for Hospital Security 0
Application Locations
Industrial Zones, Administrative Buildings, Recreation Centers, Amusement Parks, Financial Institutions, Government Agencies, Airports, Bus and Railway Stations, Offices
