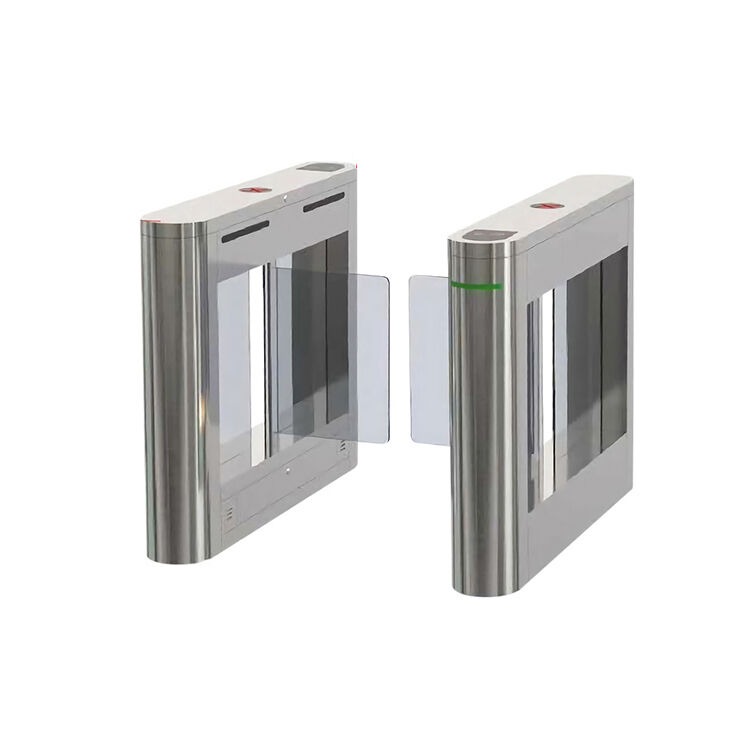

40W SS304 IP45 Acrylic Swing Barrier Turnstile Gate for Access Management
  • 40W SS304 IP45 Acrylic Swing Barrier Turnstile Gate for Access Management
  • 40W SS304 IP45 Acrylic Swing Barrier Turnstile Gate for Access Management
40W SS304 IP45 Acrylic Swing Barrier Turnstile Gate for Access Management

40W SS304 IP45 Acrylic Swing Barrier Turnstile Gate for Access Management

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW05
Product Details
Case Material:
SS304
Arm Material:
SS304/Acrylic/glass
Production Process:
CNC Laser Cutting
Electromagentic:
Duty Cycle 100%
Drive Motor:
DC Brushless Motor
Passage Width:
600mm
Highlight:

SS304 Acrylic Barrier Turnstile Gate

,

40W Acrylic Barrier Turnstile Gate

,

IP45 Access Management Swing Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,000 pcs per month
Product Description
Access Management 40W SS304 Acrylic Barrier Turnstile Gate IP45
OEM/ODM available intelligent access management Acrylic Barrier Turnstile gate
Product Description
The SINOMATIC swing turnstile SN-SB05 features a complete profile stamped from standard SS304 stainless steel, offering an aesthetically pleasing design with excellent rust resistance and durability. Built to withstand external damage, this turnstile integrates seamlessly with standard electrical interfaces for easy compatibility with barcode cards, ID cards, IC cards, and other card reader systems. It provides orderly pedestrian access control while preventing unauthorized entry. The system includes specialized fire prevention functionality to ensure unimpeded emergency egress and timely pedestrian evacuation.
Product Specifications
Model SN-SB05
Case Material SS304 (1.2mm, 1.5mm, 2.0mm optional)/Baking varnish
Arm Material SS304 (Acrylic Available)
Production Process CNC Laser Cutting
Size 1200*220*1000mm (Customization acceptable)
Power Input AC100-240V, 50/60HZ
Operation Voltage DC24V, 3A, Power: 40W (Brushless Motor Optional)
Electromagnetic Duty Cycle 100%
Barrier Arm Length 350mm (Customization acceptable)
Passage Width 600mm (Customization acceptable)
Passage Direction Single directional/Bi-directional (Optional)
Operating Time 1S
Throughput Rate 25-30 persons/minute (Normally Closed) or 40 persons/minute (Normally Open)
Reset Time after Power on 3S
MCBF 5,000,000 Cycles
Automatic Reset Function Automatically locked within set time (Time Adjustable)
LED Indicator Yes
Operation Humidity 0~95% (No Freezing)
Operation Temperature -20℃~+60℃
Operation Environment Indoor, Outdoor (Shelter)
Protection Level IP45
Communication Interface Standard RS485 interface, distance ≤1200 meters
Input Interface Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA
Product Dimension
40W SS304 IP45 Acrylic Swing Barrier Turnstile Gate for Access Management 0
Main Features
Advanced ARM core micro CPU circuit and digital positioning technology for stable operation and precise barrier arm control
Smooth, quiet operation with simple and reliable mechanical structure
Rust-proof and anti-corrosion surface treatment for enhanced durability
Control panel with counting function and optional LCD/LED display
High-precision sensor array and intelligent recognition algorithms for accurate pedestrian detection and anti-trailing protection
Intelligent voice and sound prompts for user-friendly operation
Automatic malfunction detection and alarm system for easy maintenance
Dual anti-pinch protection with mechanical and infrared sensor systems
Sound and light alarm for unauthorized access attempts and trailing detection
Automatic impact protection with barrier lock function
Configurable automatic reset with timeout cancellation of access authority
Infrared sensor reset and anti-pinch function with standard 4-pair infrared array
Automatic barrier release during power outage and reset upon power restoration
Compatible with access control, consumer, electronic ticket, biometric identification, and electrostatic testing systems
Flexible single or bi-directional pedestrian control with infrared sensor monitoring
Remote control and management capability via computer interface
