Anti climbing Access Control Turnstiles with acrylic panel , 1.6 meter height

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SLB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Wing Panel 10mm Thickness Acrylic Operating Voltage DC 24V
Power Supply Input 220V/110V ± 10% AC, 50 / 60Hz Power Consumption 30 Watt
Max Flow Rate 25 To 30 Person Per Minute IR Sensor Yes
High Light

electronic turnstiles


retractable barrier gate

Leave a Message
Product Description

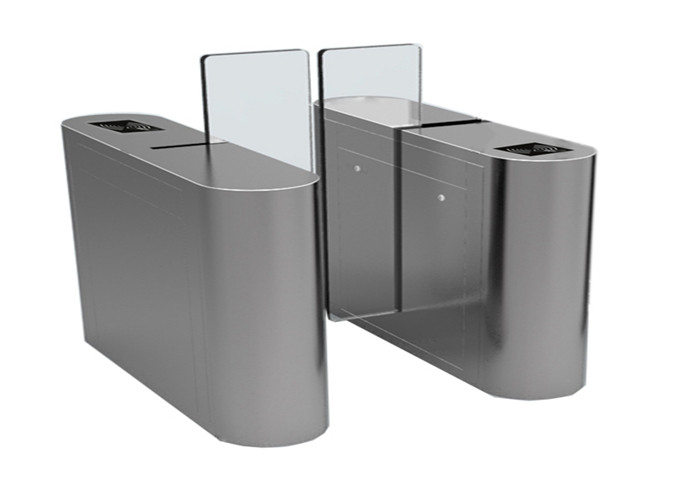

Anti climbing Access Control Turnstiles with acrylic panel , 1.6 meter height


General introduction:


Full height sliding barriers series is ideal indoor solution for lift lobby of commercial, industrial or government building. elegant arc design and detailed hair line polishing effectively alleviate prestigious feeling of your building entrance.





1. High performance IR sensor is used to detect tail-gating, illegal passing attempt and pass through direction to ensure maximum security at front gate. Door panel will be closed if tailgating is detected.

2. Sliding barrier design with high door panel to prevent unauthorized visitor from gaining access by climbing over or crawling under the gate.

3. Premium stainless steel and glass panel material with elegant arc design effectively help create an welcoming and elegant prestigious atmosphere at building entrance to impress your visitors.

4. Uses brushless DC motor eliminate the need of changing carbon brush thus reducing maintenance work. Key internal parts is treated with anti-rust and anti-septic to ensure long term reliability.


5. During power failure, door panel will open automatically to allow free pass through.


Specifications of full height sliding gate:




Motor type

Brushless DC motor

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V

Max flow rate

25 to 30 person per minute

Flap opening / closing time


Reset time when power on


Working temperature



Dual lanes photo:


Anti climbing Access Control Turnstiles with acrylic panel , 1.6 meter height 0
