304 Stainless Steel Electronic Sliding Turnstile with Bi-Directional Control and Automatic Reset Function
  • 304 Stainless Steel Electronic Sliding Turnstile with Bi-Directional Control and Automatic Reset Function
  • 304 Stainless Steel Electronic Sliding Turnstile with Bi-Directional Control and Automatic Reset Function
304 Stainless Steel Electronic Sliding Turnstile with Bi-Directional Control and Automatic Reset Function

304 Stainless Steel Electronic Sliding Turnstile with Bi-Directional Control and Automatic Reset Function

Place of Origin Shenzhen, China
Brand Name SINOMATIC
Certification CE
Model Number SN-SL01
Product Details
Reset Time When Power On:
3S
Flap Material:
Crystal Acrylic
Drive Motor:
DC 24V
Power Supply:
AC220±10%V 50Hz/AC110±10% 60Hz
Product Type:
Full Height Sliding Gate
Flap Opening / Closing Time:
1S
Highlight:

electronic turnstiles

,

subway turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
Negotiable
Packaging Details
Crate
Delivery Time
5~10 days
Payment Terms
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability
1000 pcs/ month
Product Description
Electronic Sliding Access Control Turnstiles
304 stainless steel case pedestrian waist height sliding turnstile access control systems
Product Overview
Advanced waist height sliding turnstiles designed for secure access control with automatic resetting functionality and comprehensive safety features.
Key Functions
  • Automatic resetting function cancels passage rights if not used within allowed time
  • Flexible one-way and two-way access control modes
  • Audible and visual alarms for break-in and reverse direction intrusion
Applications
Suitable for indoor or outdoor installations with protective covering. Widely deployed in airports, railway stations, metro stations, bus terminals, stadiums, supermarkets, checkpoints, book stores, sports centers, factories, colleges, commercial buildings, libraries, hotels, banks, and similar facilities.
Advanced Features
  • Comprehensive fault detection and alarm functions for easy maintenance
  • Programmable operation via built-in keyboard on main board
  • Mechanical anti-pinch safety with automatic motor shutdown
  • Anti-breakthrough locking mechanism until authorized opening signal
  • Synchronization capabilities for dual gate configurations
  • Automatic reset within 5 seconds if passage not completed
  • Configurable normally open or normally closed operation
  • Compatible with multiple access devices: IC/ID card readers, barcode scanners, fingerprint systems
  • Single-direction or bi-directional operation modes
  • LED direction indicators for clear user guidance
  • Power-off auto-open and power-on auto-close for fire safety compliance
  • Alarm functions for illegal and reverse intrusion detection
  • Optional counter functionality
  • Infrared photocell support for enhanced anti-pinch and reset functions
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor Voltage DC 24V (brush motor)
Maximum Flow Rate 25 to 30 persons per minute
Flap Opening/Closing Time 1 second
Reset Time When Power On 3 seconds
Working Temperature -20°C to 60°C

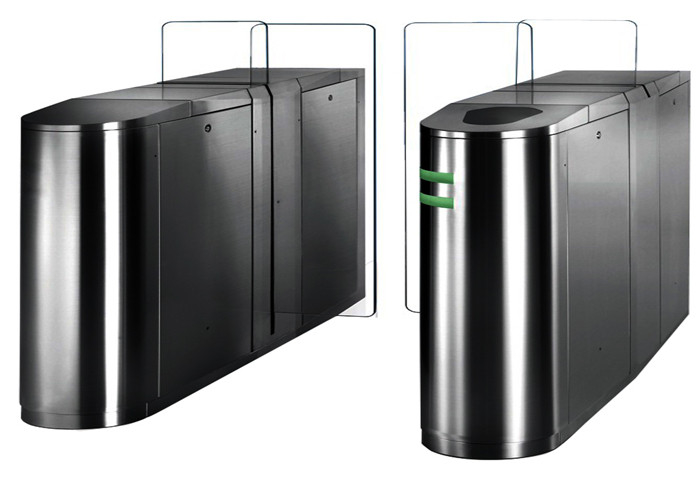

Product Image
304 Stainless Steel Electronic Sliding Turnstile with Bi-Directional Control and Automatic Reset Function 0
Why Choose Our Turnstiles
  • Over 20 years of OEM/ODM experience in access control turnstile manufacturing
  • Prompt delivery with standard model inventory availability
  • Custom OEM/ODM orders to meet specific client requirements
  • Sample orders accepted for testing before bulk purchasing
  • Comprehensive online technical support
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome during working days
