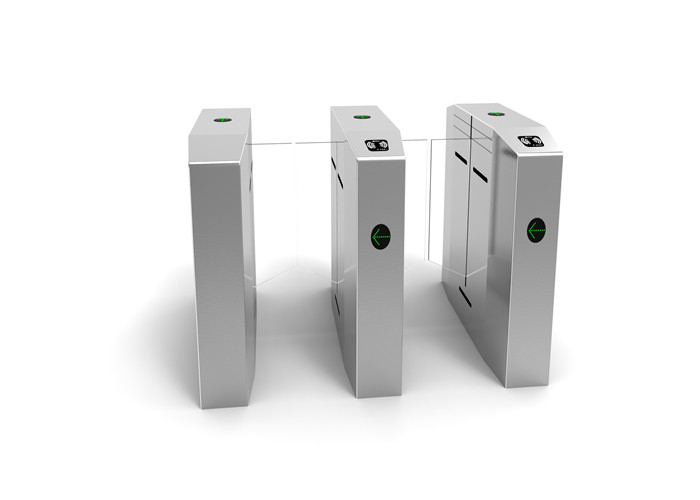

Programmable RFID Access Control Turnstiles Flap Barrier Gate 220V 50HZ

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union, D/P, D/A, L/C, MoneyGram
Supply Ability 1,000pcs per month
Product Details
Flap Height 1 Meter Lane Length 550mm
Material Of Housing 304 Or 316 Stainless Steel Max Flow Rate 25 To 30 Person Per Minute
Motor Voltage DC 24V (brush Motor) Surface Treatment Wire Drawing Or Mirron Finished
High Light

electronic turnstiles

,

retractable barrier gate

Leave a Message
Product Description

Access control RFID card reader security 304 stainless steel  half height sliding gate access control turnstiles



Introduction of full height sliding gate:



1. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.

2. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.

3. Anti-rush function: if there is no open signal, flap will be lock tightly.



Applications of half height sliding gate:



Full height sliding gate is suitable for indoor or outdoor with tent. They are optimized solution for airport, railway station, metro station, bus station, stadium, supermarket, check point, sports center, factory, colleges, commercial building, library, stadium, hotel, bank and etc.



Features of half height sliding gate:



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.



Specifications of half height sliding gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Case of full height sliding gate:
