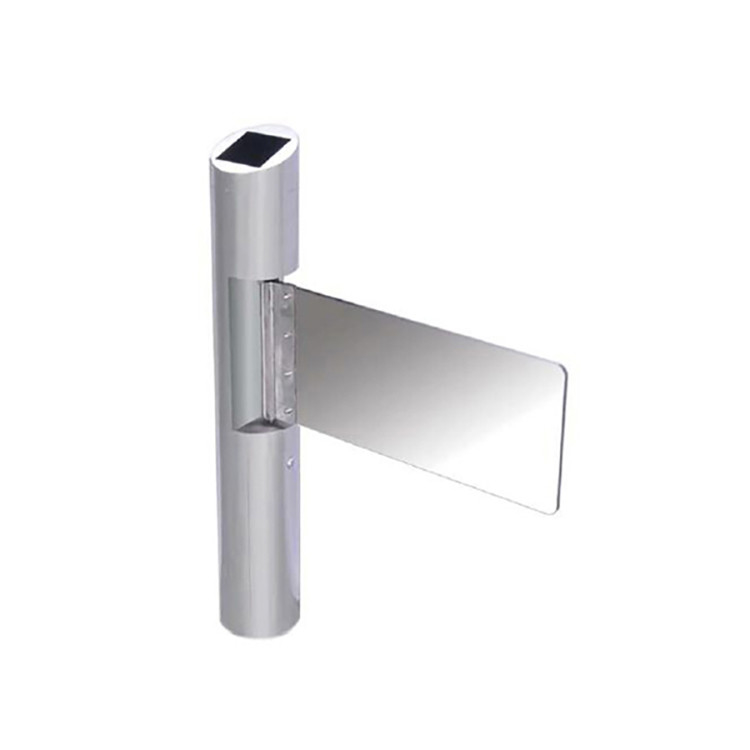

DC24V Brushless Motorized Swing Barrier Turnstile for Pedestrian Access Control

SW-M10 motorized swing barrier is a type of pedestrian gate typically installed at the building entrance with an access control reader to restrict unauthorized access while maintaining a welcoming atmosphere. Users with luggage or wheelchair can pass through easily. It offer the widest opening with smallest form factor among all pedestrian gate.

Description

You are worried that a typical high-speed swing gate smaller width might be uncomfortable for a wheelchair to pass through. What if you can save money on this very low traffic handicapped lane and still wide enough for a wheelchair?

More robust to last longer
Built-in Automatic Rebounce system (ARS) protects door leaf and gearbox from being easily damaged when someone kicks the door by force as vandalism attempt. ARS senses and channels out the brute force. SW-M10 uses DC brushless motor to achieve ZERO maintenance thus minimizing your servicing cost.

Safety first
During a power failure, the swing barrier will automatically open up to avoid blocking the passage. The swing barrier will automatically close back after the power resume. You can trigger the swing barrier to open permanently until the fire alarm is disabled. You can add optional railing with a safety IR beam to auto-reverse the gate upon detecting an obstacle in the passageway to avoid hitting on the user that requires more effort.

PRODUCT ADVANTAGE

• Bi-directional;
• High quality at a cost effective price;
• Integration with any type of access control and ID systems;
• Low power consumption;
• Whisper quiet, low noise operation;
• Possibility of gate opener customization;
• Wide range of accessories;
• Complete supply set as a standard;
• Fail safe.

MAIN FUNCTION AND FEATURES

1. Stainless steel housing, rain-proof laser opening, novel and beautiful.

2. LINIX (the best micro-motor brand in China) brush-less DC motor is used and the surface is electroplated.

3. Length of arm: 500mm to 800mm.

4. Fault detection and alarm functions, easy to use and maintenance.

5. The running status can be programmed and controlled with the built-in keyboard on the main board.

6. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset).

7.Anti-breakthrough function. The gate is locked automatically until opening signal received.

8. Synchronization functions (for dual gate equipment).

9.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.

10. Gate can be set as normally open or normally closed.

11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)

12. Direction can be set as unidirectional or bidirectional.

13. The device can be connected to management computer to realize remote control and management.

14. LED direction indicator (optional)

15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

16. Support infrared photocell for anti-pinch and reset function.
