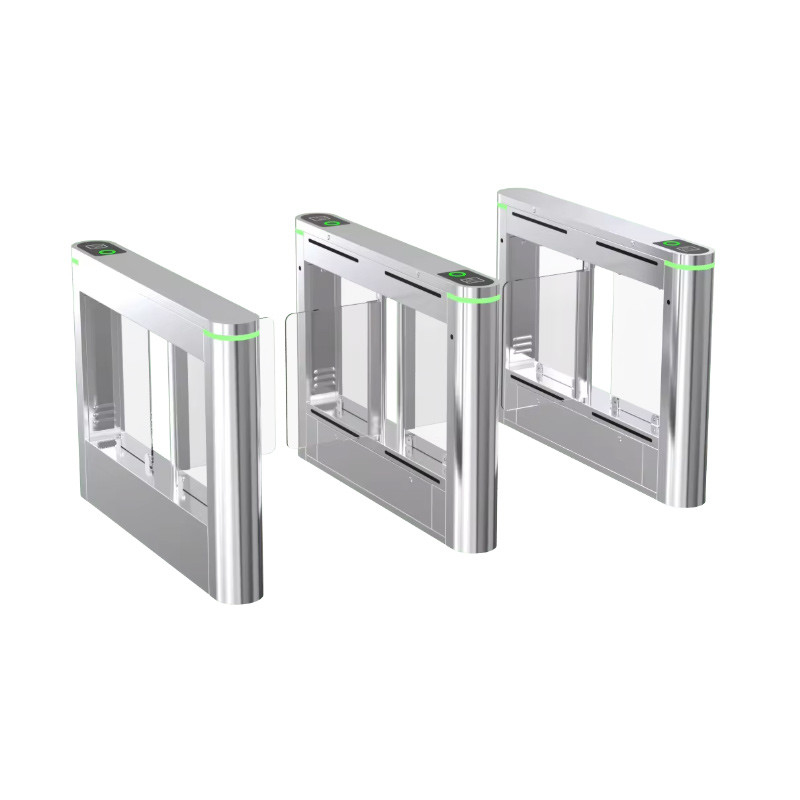

Access Management 40W SS304 Acrylic Barrier Turnstile Gate IP45

Place of Origin	Shenzhen, China.
Brand Name	SINOMATIC
Certification	CE/ ISO
Model Number	SN-SW05

Product Details

Cabinet Material:

SS304

Arm Material:

SS304/Acrylic/glass

Electromagentic:

Duty Cycle 100%

Drive Motor:

DC Brushless Motor

Passage Width:

600~900mm

Passing Rate:

30~40 Person/minute

Highlight:

SS304 Barrier Turnstile Gate

IP45 Barrier Turnstile Gate

Access Management Barrier Turnstile Gate

Payment & Shipping Terms

Minimum Order Quantity

Sample order accepted

Price

negotiable

Packaging Details

Carton/Plywood box/Pallet

Delivery Time

5-10 working days after payment received

Payment Terms

T/T,Western Union,,L/C,D/A,D/P

Supply Ability

1,000 pcs per month

Product Description

Access Management 40W SS304 Acrylic Barrier Turnstile Gate IP45

General Description

Swing barrier gates are increasingly common in corporate buildings, airports, and other high-security facilities. These gates offer numerous benefits, including high visibility and easy customization to meet specific institutional requirements. They provide exceptional security through integration with various access control features such as palm scanners, card readers, and other authentication systems.

How It Works

Swing barriers operate when an Access Control System (ACS) reads and authenticates an ACS control card, allowing the user to pass by swinging the barrier open.

Product Specifications

Case Material	SS304 (1.2mm, 1.5mm, 2.0mm optional)/Baking varnish
Arm Material	SS304 (Acrylic Available)
Production Process	CNC Laser Cutting
Size	12002201000mm (Customization acceptable)
Power Input	AC100-240V, 50/60HZ
Operation Voltage	DC24V, 3A, Power: 40W (Brushless Motor Optional)
Electromagnetic	Duty Cycle 100%
Barrier Arm Length	350mm (Customization acceptable)
Passage Width	600mm (Customization acceptable)
Passage Direction	Single directional/Bi-directional (Optional)
Operating Time	1S
Throughput Rate	25-30 persons/minute (Normally Closed) or 40 persons/minute (Normally Open)
Reset Time after Power on	3S
MCBF	5,000,000 Cycles
Automatic Reset Function	Automatically locked within set time (Time Adjustable)
LED Indicator	Yes
Operation Humidity	0~95% (No Freezing)
Operation Temperature	-20℃~+60℃
Operation Environment	Indoor, Outdoor (Shelter)
Protection Level	IP45
Communication Interface	Standard RS485 interface, distance ≤1200 meters
Input Interface	Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA

Main Functions and Features

Special ARM core micro CPU circuit and digital positioning technology for stable start and control, with precise brake arm automatic control
Smooth operation with minimal noise and simple, reliable structure
Surface treatment provides rust and corrosion resistance for durability; hydraulic movement unit recommended for scenic spot ticket checking
Control panel with counting function and optional LCD/LED display
High precision sensor group and intelligent recognition algorithm for accurate pedestrian counting and direction detection, with enhanced anti-pinching and anti-trailing capabilities
Intelligent voice and sound prompts for user-friendly operation
Automatic malfunction inspection and alarm function for easy maintenance
Mechanical and infrared sensor anti-pinch functions with automatic motor stop and reset capabilities
Sound and light alarm for illegal break-in and trailing detection
Anti-impact function with automatic locking without open signal
Automatic reset function cancels access authority if pedestrians don't pass within set time
Infrared sensor reset and anti-pinch function with standard 4 pairs of infrared sensors
Automatic gate opening during power failure and closing after power restoration
Compatible with access control systems, consumer systems, electronic ticket systems, biometric identification systems, and electrostatic testers
Single-direction or bi-directional pedestrian control with infrared sensor access
Remote control and management capability via computer
