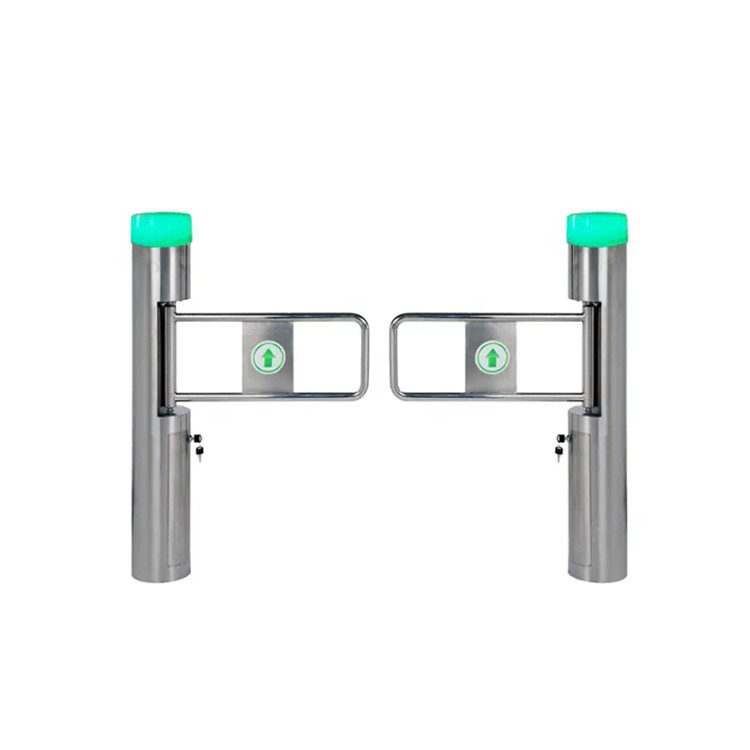

Anti Collision Swing Barrier Turnstile Supermarket Entrance Access Control Gate
  • Anti Collision Swing Barrier Turnstile Supermarket Entrance Access Control Gate
  • Anti Collision Swing Barrier Turnstile Supermarket Entrance Access Control Gate
  • Anti Collision Swing Barrier Turnstile Supermarket Entrance Access Control Gate
Anti Collision Swing Barrier Turnstile Supermarket Entrance Access Control Gate

Anti Collision Swing Barrier Turnstile Supermarket Entrance Access Control Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW01
Product Details
Motor Type:
DC Brushless
Motor Voltage:
DC24V
Dimeter:
168mm
Direction:
Bi-directional
Height:
1000mm To 1050mm
Packing Weight:
18kg
Highlight:

Anti Collision Swing Barrier Turnstile

,

Supermarket Entrance swing barrier turnstile

,

Anti Collision Access Control Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000pcs per month
Product Description
Anti Collision Swing Barrier Turnstile for Supermarket Entrance Access Control
High Pedestrian Traffic Flow in Both Directions with 168mm Diameter Slim Size
This DC brush-less vertical swing gate is an upgraded high-tech access control product designed for various pedestrian and vehicle channels. It features industrial-grade circuitry, advanced control systems, and innovative mechanical design combined with brush-less motor drive technology for superior performance, extended lifespan, and exceptional stability.
Product Advantages
  • Bi-directional operation capability
  • High quality at cost-effective pricing
  • Integration with any access control and ID systems
  • Low power consumption
  • Whisper quiet, low noise operation
  • Customizable gate opener options
  • Wide range of available accessories
  • Complete supply set as standard
  • Fail-safe operation
Main Functions and Features
  • Stainless steel housing with rain-proof laser opening
  • LINIX brush-less DC motor with electroplated surface
  • Adjustable arm length: 500mm to 800mm
  • Fault detection and alarm functions for easy maintenance
  • Programmable running status via built-in keyboard
  • Mechanical anti-pinch function with automatic reset
  • Anti-breakthrough function with automatic locking
  • Synchronization functions for dual gate equipment
  • Automatic reset function with configurable timing
  • Configurable as normally open or normally closed
  • Compatible with IC/ID card readers, barcode scanners, fingerprint systems
  • Unidirectional or bidirectional operation modes
  • Remote control and management via computer connection
  • Optional LED direction indicator
  • Fire safety compliance with auto-open on power failure
  • Infrared photocell support for anti-pinch and reset functions
Technical Specifications
Description Parameter
Cabinet material 304 stainless steel
Arm material 304 stainless steel/Acrylic
Dimension Case diameter: 168mm
Power supply AC 220V/110V±10%
Motor voltage DC24V (Brush-less motor)
Access device input Dry contact
Optimal flow rate 30 to 35 person/minute
Gate swing angle 90 deg per side
Gate opening/closing speed 1s
Reset time when power on 3s
Default arm length 530mm
Arm max. bearing capacity 30KG
Working environment Indoor/outdoor with shelter
Working temperature -15°C~80°C
Relative humidity ≤95%, Non condensation
Communication interface RS485 standard (distance ≤ 1200m)
Product Dimensions
Custom dimensions available upon request
Anti Collision Swing Barrier Turnstile Supermarket Entrance Access Control Gate 0
