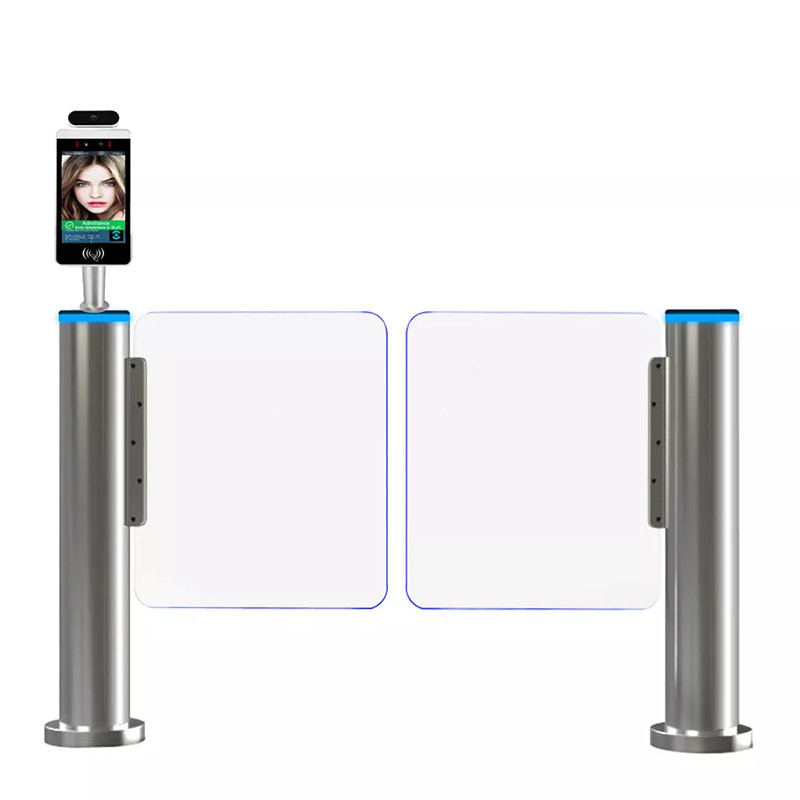

Cylindrical Swing Barrier Turnstile Acrylic Barrier DC Brushless Servo Motor
  • Cylindrical Swing Barrier Turnstile Acrylic Barrier DC Brushless Servo Motor
  • Cylindrical Swing Barrier Turnstile Acrylic Barrier DC Brushless Servo Motor
  • Cylindrical Swing Barrier Turnstile Acrylic Barrier DC Brushless Servo Motor
Cylindrical Swing Barrier Turnstile Acrylic Barrier DC Brushless Servo Motor

Cylindrical Swing Barrier Turnstile Acrylic Barrier DC Brushless Servo Motor

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ISB10
Product Details
Housing Diameter:
168mm
Housing Material:
SS304
Passage Width:
500 To 1400mm
Direction:
Single Or Bi-directional
Barrier Material:
Acrylic
Pillar Diameter:
168mm
Highlight:

Cylindrical Swing Barrier Turnstile

,

Acrylic Barrier swing barrier turnstile

,

Servo Motor Swing Barrier Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description
Cylindrical Swing Barrier Turnstile with Acrylic Barrier and DC Brushless Servo Motor
Integrated 304 Stainless Steel Swing Barrier with DC Brushless Servo Motor Cylindrical Speed Gate
Product Overview
This swing barrier model provides an ideal solution for securing disabled access and accommodating wheelchairs and carts in limited spaces. The access gate features a stainless steel column with a single glass or acrylic barrier that can be operated through access control systems including card readers, biometric devices, or remote control from reception or security desks.
Available with various barrier heights to enhance security levels, this design complements our comprehensive range of turnstiles and barriers. It serves as an excellent disabled access solution when integrated with advanced secured entry systems.
Technical Specifications
Model SN-IPS10
Power AC220V±10V/110V±10V, 50/60HZ; DC24V
Operating Temperature -45℃ to 60℃
Relative Humidity ≤95%, No Condensation
Passage Width Max. 900mm (single unit); Max. 1800mm (pair)
Passing Speed Normally open: 40 persons/min; Normally closed: 30 persons/min
Motor DC Brushless motor, 140W/24V; Servo motor optional
Gate Opening/Closing Time ≤ 0.4S
Infrared Sensors No
Working Environment Indoor and outdoor (with rainshed)
Motor Operation Speed 1600R/Min
Communication Distance ≤1200M
Input Connection +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms
Communication Connection RS485 Communication
Barrier Material Acrylic glass, SS304 and others
Material Stainless steel 304, thickness ≥1.5mm
Running Life 5 Million cycles (continuous opening/closing)
Protection Level IP54
Color SSB (US32D) Stainless Steel Brushed / Powder Coating (Optional), or custom colors
Operation Locations Subway Stations, Airports, Tourism Sports, Exhibitions, Swimming Halls, Residential Areas, Enterprise Entrances/Exits, Attendance Systems, Gateway Security, Access Control Management
Main Functions and Features
  • Rapid identification technology for accurate and efficient recognition of magnetic cards, barcode cards, ID cards, and IC cards
  • DC Brushless Motor - Maintenance Free operation
  • On-line or off-line mode (optional)
  • Real-time self-diagnosis and alarm indication for safe system operation and easy maintenance
  • Direction indicators guide passengers for proper entry and exit
  • Automatic locking prevents forced passage without valid card
  • Automatic passenger counting and display with capacity up to 90,000
  • Light and sound alarm indications prevent illegal or irregular passage
  • Powerful online intelligent control mode with adjustable operation speed based on passenger flow
  • Configurable operation modes for passage entry and exit
  • Multiple card reading capability for specific site requirements
  • Memory and non-memory card reading options
  • Selectable normally open or closed modes for effective passenger flow management
  • Humanized timeout passing reset function
  • Infrared sensing technology for real-time passage monitoring, safety protection, and anti-tailgating
  • Emergency and special condition processing modes
  • Standard input/output ports for system integration and remote control management
  • Strong combination capability with various passage types and series
  • Excellent system expansion capability for adding new products
  • Remote control management for barrier modes and fire protection requirements
  • Automatic reset function cancels passage permission if not used within set time
Cylindrical Swing Barrier Turnstile Acrylic Barrier DC Brushless Servo Motor 0
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless or Servo Motor technology ensures maintenance-free operation throughout product life, no attrition, low noise, and high intelligence.
What is your flap gate's opening and closing time?
≤ 0.4 seconds
What is the swing barrier gate working environment?
Suitable for both indoor and outdoor installation (with protective shelter for outdoor use)
Can I customize the product?
Yes, we welcome customization. As the manufacturer, we support OEM services.
What is your warranty policy?
Minimum 1-year warranty period.
