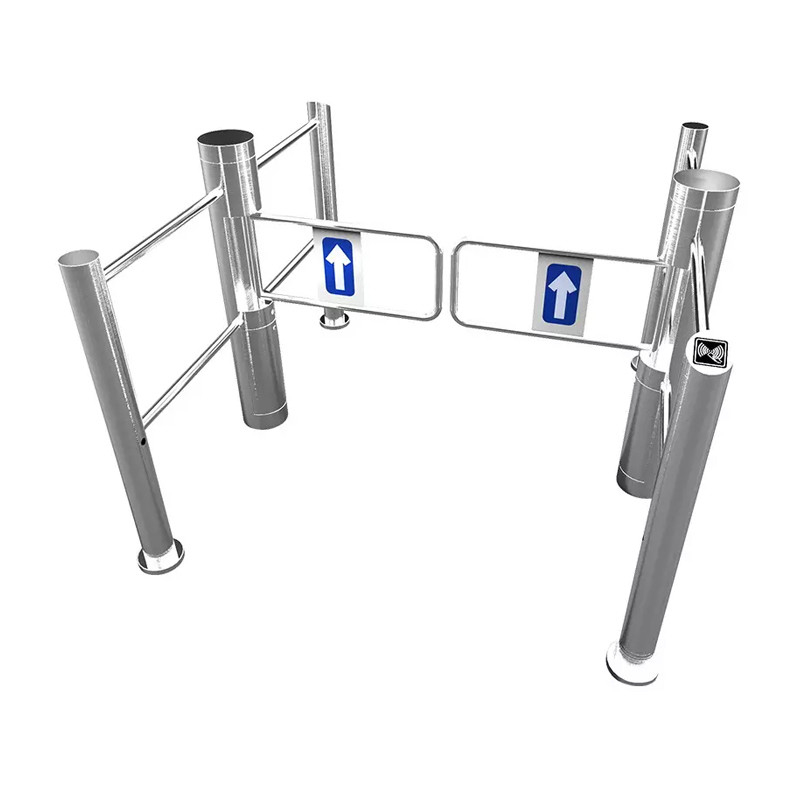

Supermarket Swing Barrier Gate SUS 304 Stainless Steel Cylinder Tube
  • Supermarket Swing Barrier Gate SUS 304 Stainless Steel Cylinder Tube
  • Supermarket Swing Barrier Gate SUS 304 Stainless Steel Cylinder Tube
  • Supermarket Swing Barrier Gate SUS 304 Stainless Steel Cylinder Tube
Supermarket Swing Barrier Gate SUS 304 Stainless Steel Cylinder Tube

Supermarket Swing Barrier Gate SUS 304 Stainless Steel Cylinder Tube

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW01
Product Details
Motor Voltage:
DC24V
Surface Treatment:
Polished
Tube Dimeter:
168mm
Passing Direction:
Singel Or Bi-directional
Passing Speed:
30 To 35 Person / Minute
Arm Lenght:
500 To 800mm
Highlight:

Supermarket Swing Barrier Gate

,

Cylinder SS304 Swing Barrier Gate

,

800mm Swing Barrier Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description
Supermarket Swing Barrier Gate SUS 304 Stainless Steel Cylinder Tube
Product Overview
This SUS 304 Stainless Steel Cylinder Tube Swing Barrier Gate integrates seamlessly with any access control system. Designed for versatile applications including stadiums, retail environments, transit fare collection, and lobby access control, it provides reliable security with minimal maintenance requirements.
Key Advantages
  • Bi-directional operation capability
  • High quality construction at cost-effective pricing
  • Compatible with all access control and ID systems
  • Low power consumption for energy efficiency
  • Whisper quiet, low noise operation
  • Customizable gate opener options
  • Comprehensive range of accessories available
  • Complete supply set included as standard
  • Fail-safe emergency operation
Main Features & Functions
  • Stainless steel housing with rain-proof laser opening
  • LINIX brush-less DC motor with electroplated surface
  • Adjustable arm length: 500mm to 800mm
  • Integrated fault detection and alarm systems
  • Programmable operation via built-in keyboard
  • Mechanical anti-pinch safety feature
  • Anti-breakthrough automatic locking
  • Synchronization for dual gate setups
  • Automatic reset function with configurable timing
  • Configurable as normally open or normally closed
  • Compatible with IC/ID card readers, barcode scanners, and fingerprint systems
  • Unidirectional or bidirectional operation modes
  • Remote management via computer connection
  • Optional LED direction indicators
  • Fire safety compliant - auto-opens during power failure
  • Infrared photocell support for enhanced safety
Technical Specifications
Cabinet material 304 stainless steel
Arm material 304 stainless steel/Acrylic
Dimension Case diameter: 168mm
Power supply AC 220V/110V±10%
Motor voltage DC24V (Brush-less motor)
Access device input Dry contact
Optimal flow rate 30 to 35 person/minute
Gate swing angle 90 deg per side
Gate opening/closing speed 1s
Reset time when power on 3s
Default arm length 530mm
Arm max. bearing capacity 30KG
Working environment Indoor/outdoor with shelter
Working temperature -15°C~80°C
Relative humidity ≤95%, Non condensation
Communication interface RS485 standard (distance ≤ 1200m)
Supermarket Swing Barrier Gate SUS 304 Stainless Steel Cylinder Tube 0
