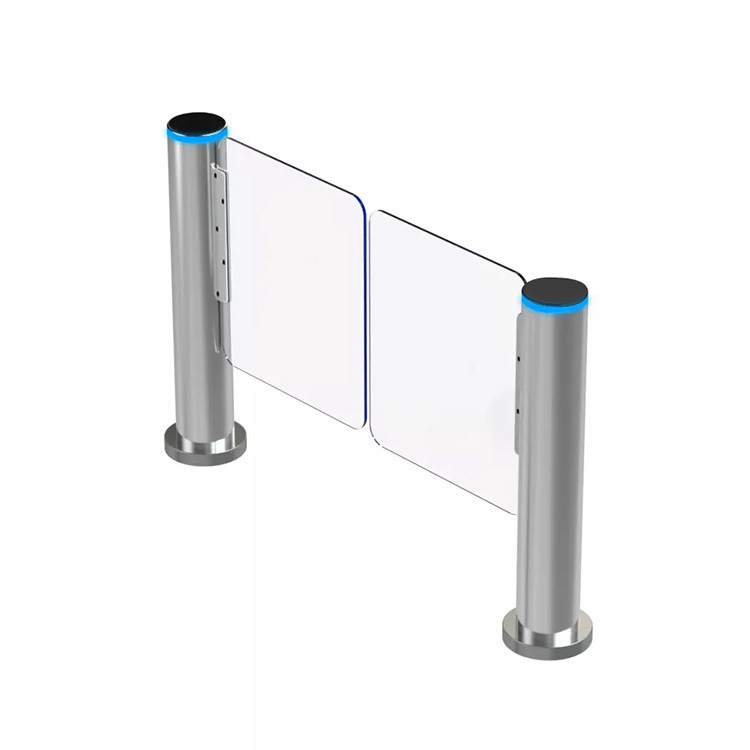

Public Building Entrance Automatic Turnstiles Access Control System Speed Gate Turnstile
  • Public Building Entrance Automatic Turnstiles Access Control System Speed Gate Turnstile
  • Public Building Entrance Automatic Turnstiles Access Control System Speed Gate Turnstile
  • Public Building Entrance Automatic Turnstiles Access Control System Speed Gate Turnstile

Public Building Entrance Automatic Turnstiles Access Control System Speed Gate Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ISB10
Product Details
Barrier Material:
SS304 Or Acrylic
Passing Speed:
30~35 Person/minute
IP Rate:
IP54
Driving Voltage:
24V
Motor Type:
BLDC Motor (servo Motor Optional)
Traffic Direction:
One-way And Two-way
Highlight:

IP54 Automatic Turnstiles

,

BLDC motor Automatic Turnstiles

,

Stadium Waterproof Speed Gate Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union,
Supply Ability
500 pcs per month
Product Description
Public Building Entrance Automatic Turnstiles Access Control System
This compact DC servo motorized high-speed gate turnstile is engineered for narrow elevator entrances and lobbies, providing secure access control with minimal space requirements.
Product Overview
Designed for high-security applications, this speed gate turnstile effectively controls pedestrian access to restricted areas. Featuring advanced brushless motor technology (servo motor optional) and available with acrylic or tempered glass arms, it operates with minimal noise, small dynamic forces, and rapid open/close cycles. Compatible with all standard access control systems.
Key Features & Functions
  • Advanced card recognition technology supporting magnetic, barcode, ID, and IC cards
  • DC brushless motor design for maintenance-free operation
  • Optional online or offline operation modes
  • Real-time self-diagnostic system with alarm indicators
  • Clear directional indicators for passenger guidance
  • Automatic locking mechanism prevents unauthorized access
  • Integrated passenger counting with display capacity up to 90,000
  • Audible and visual alarm systems for security violations
  • Intelligent control settings for speed adjustment and operational modes
Technical Specifications
Framework304 stainless steel
Dimensions168(D) × 1000(H) mm
Arm Length400-800 mm (optional)
Dry Contact12V
LED IndicatorOne
Card-reading WindowOne
Rated Power120W
Operating Temperature-25℃ to +60℃
Relative Humidity≤ 90% RH
Communication InterfaceRS485, distance ≤ 1400m
Power SupplyAC 220V/110V ±10% 50/60Hz (optional)
Opening Transit Speed40 persons per minute
Closing Transit Speed30 persons per minute
Public Building Entrance Automatic Turnstiles Access Control System Speed Gate Turnstile 0
Applications
Cylindrical speed turnstiles integrate seamlessly with IC cards, ID cards, barcode cards, fingerprint readers, and facial recognition systems. Ideal for stations, subway systems, wharves, factories, office buildings, hotels, clubs, intelligent communities, and corporate facilities requiring sophisticated access management.
Frequently Asked Questions
What is your product's biggest advantage?
DC brushless motor technology ensures maintenance-free operation throughout product lifespan, with zero attrition, low noise levels, and advanced intelligence.
What is your flap gate's opening and closing time?
≤ 0.4 seconds
What is the swing barrier gate working environment?
Suitable for both indoor and outdoor installations (with appropriate shelter).
Can I customize the turnstile?
Yes, we welcome OEM and custom specifications as a direct manufacturer.
What's your warranty policy?
Minimum 1-year comprehensive warranty.
