Dry Contact Swing Turnstile Gate Brushed Stainless Steel Anti Breakthrough
  • Dry Contact Swing Turnstile Gate Brushed Stainless Steel Anti Breakthrough
  • Dry Contact Swing Turnstile Gate Brushed Stainless Steel Anti Breakthrough
  • Dry Contact Swing Turnstile Gate Brushed Stainless Steel Anti Breakthrough

Dry Contact Swing Turnstile Gate Brushed Stainless Steel Anti Breakthrough

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW01
Product Details
Motor Voltage:
DC24V
Surface Treatment:
Polished
Dimeter:
168mm
Height:
1000mm To 1050mm
Weight:
20Kg
Arm Material:
SS304/ Acrylic
Highlight:

Dry Contact Swing Turnstile Gate

,

Anti Breakthrough Swing Turnstile Gate

,

DC24V Swing Gate Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000pcs per month
Product Description

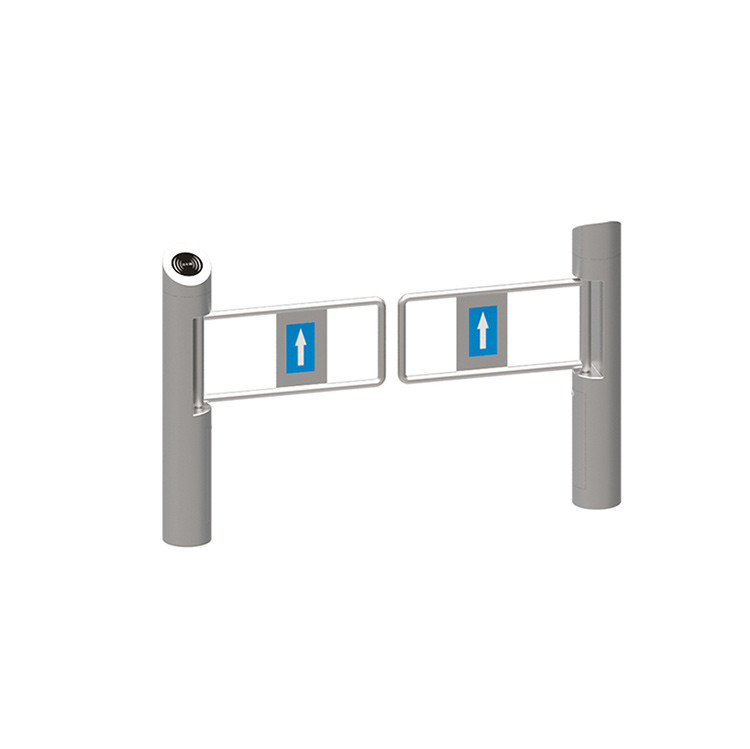

Dry Contact Swing Turnstile Gate
Professional brushed stainless steel swing turnstile with anti-breakthrough function and dry contact relay signal control interface for secure access management.
Product Advantages
  • Bi-directional operation capability
  • High quality construction at cost-effective pricing
  • Seamless integration with any access control and ID systems
  • Low power consumption for energy efficiency
  • Whisper quiet, low noise operation
  • Customizable gate opener options
  • Comprehensive range of accessories
  • Complete supply set included as standard
  • Fail-safe operation for maximum reliability
Product Overview
This swing turnstile is engineered to control pedestrian traffic flow in both directions, making it ideal for high-traffic areas requiring secure access management. Constructed from brushed stainless steel, the unit offers robust, rigid performance with anti-rust, waterproof, and durable characteristics.
Featuring standard relay signal input interface, the turnstile integrates seamlessly with third-party access control systems including RFID, fingerprint, and biometric reader devices. Suitable for both indoor and outdoor environments, the system provides automatic arm opening during emergencies and supports both standard and handicapped access with wide passageways.
Key Features & Functions
  • Stainless steel housing with rain-proof laser opening
  • LINIX brush-less DC motor with electroplated surface
  • Adjustable arm length: 500mm to 800mm
  • Comprehensive fault detection and alarm functions
  • Programmable operation via built-in keyboard on main board
  • Mechanical anti-pinch safety function
  • Anti-breakthrough automatic locking system
  • Synchronization capability for dual gate installations
  • Automatic reset function with configurable timing
  • Configurable as normally open or normally closed
  • Compatible with IC/ID card readers, bar codes, fingerprints via dry contact signal
  • Unidirectional or bidirectional operation settings
  • Remote control and management via computer connection
  • Optional LED direction indicator
  • Automatic power-off opening and power-on closing for fire safety compliance
  • Infrared photocell support for anti-pinch and reset functions
Technical Specifications
Brand SINOMATIC
Framework Material 304 Full Stainless Steel
Dimension 168 * 1050mm
Weight 20kg/pc
Passage Width 1200mm (One pair)
Passing Direction Single directional / Bi-directional
MCBF 5 million
Power Supply AC220V/110V, 50/60Hz; DC24V
Operation Voltage 24V DC
Power Consumption 40W
Operation Temperature -20°C - 60°C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor
Flow Rate 30 people per minute
LED Indicator No
Infrared Sensor No
Emergency Feature Automatic arm open when power off
Communication Dry contact, Relay signal, RS485 optional
