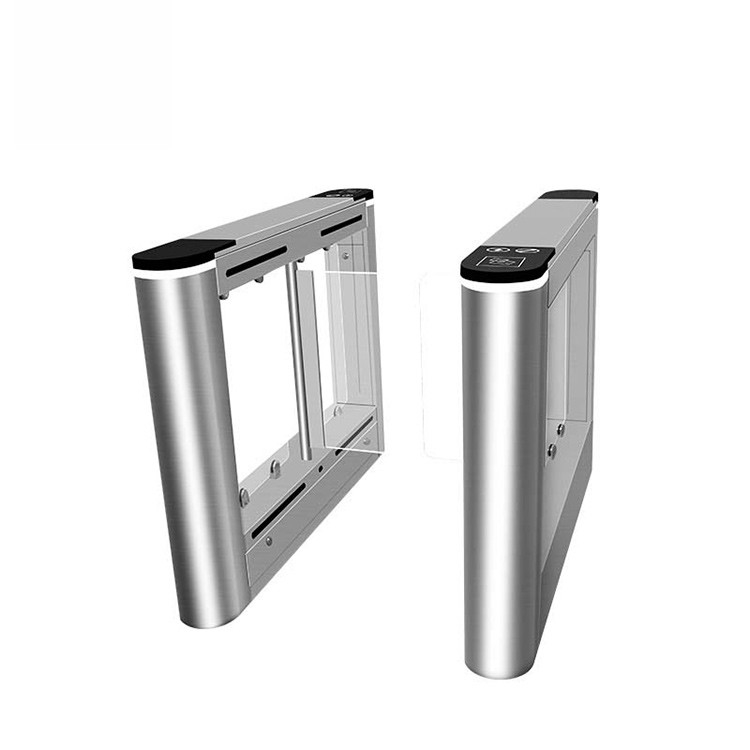

Pedestrian Security Swing Turnstile Gate Face Recognition Thermal Access Control Channel
  • Pedestrian Security Swing Turnstile Gate Face Recognition Thermal Access Control Channel
  • Pedestrian Security Swing Turnstile Gate Face Recognition Thermal Access Control Channel
Pedestrian Security Swing Turnstile Gate Face Recognition Thermal Access Control Channel

Pedestrian Security Swing Turnstile Gate Face Recognition Thermal Access Control Channel

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW05
Product Details
Cabinet Material:
SS304
Access Direction:
Bi-direction
Power Supply:
AC100V~240V; DC24V
IP:
IP44
Passing Rate:
30 ~35 Person/minute
Motor Type:
24V BLDC Motor
Highlight:

24V BLDC Swing Turnstile Gate

,

IP44 Swing Turnstile Gate

,

Face Recognition Swing Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,000 pcs per month
Product Description
Pedestrian Security Swing Turnstile Gate with Face Recognition & Thermal Access Control
This luxury swing turnstile gate integrates advanced face recognition and thermal access control technologies to provide secure pedestrian management solutions. Designed for simplicity and efficiency, the system requires minimal training for operation and offers cost-effective maintenance.
Advanced Access Control Technology
The swing barrier enhances security levels while ensuring safe pedestrian flow through your premises. Featuring multiple entry methods including QR code, ID card, and face recognition, this intelligent access management system provides reliable authorization control for high-traffic environments.
Standard Features
  • Fault self-test and alarm prompt functions for easy maintenance
  • Anti-clip and anti-collision protection with automatic reset
  • Anti-shock function with automatic swing arm locking
  • One-way and two-way pendulum operation modes
  • Remote control and management via computer interface
Technical Specifications
Cabinet Material 304 Stainless Steel (SS316 optional)
Dimensions 1200*220*1000 mm (customizable)
Control Signal Dry contact
Rated Power 100W
Operating Temperature -25℃ to +60℃, RH ≤90%
Communication Interface RS485, distance ≤1200m
Power Supply AC 220V/110V ±10% 50/60MHZ (optional)
Transit Speed 30-35 persons per minute
Package Plywood box
Core Functions & Safety Features
  • Programmable working methods via main panel controls
  • Anti-pinch and anti-collision protection with 2Kg force limit
  • Anti-illegal entry and intrusion prevention
  • Automatic closure without valid signal
  • Motor protection against external force collisions
  • Multi-channel synchronization capability
  • Auto-reset function with adjustable timing (1-60 seconds)
  • Photocell-based reset and anti-pinch functions
  • Compatibility with access control, consumption, ESD, and e-ticket systems
Pedestrian Security Swing Turnstile Gate Face Recognition Thermal Access Control Channel 0
Extensible Functions
  • LED counter display integration
  • Customizable casing and gate dimensions
  • Advanced photocell logic judgment (8-10 pairs)
  • Speech reminder system
  • Adjustable normal close/open settings
  • Light and sound alarm options

Tags:

swing gate turnstile,

security swing gate,

swing barrier gate
