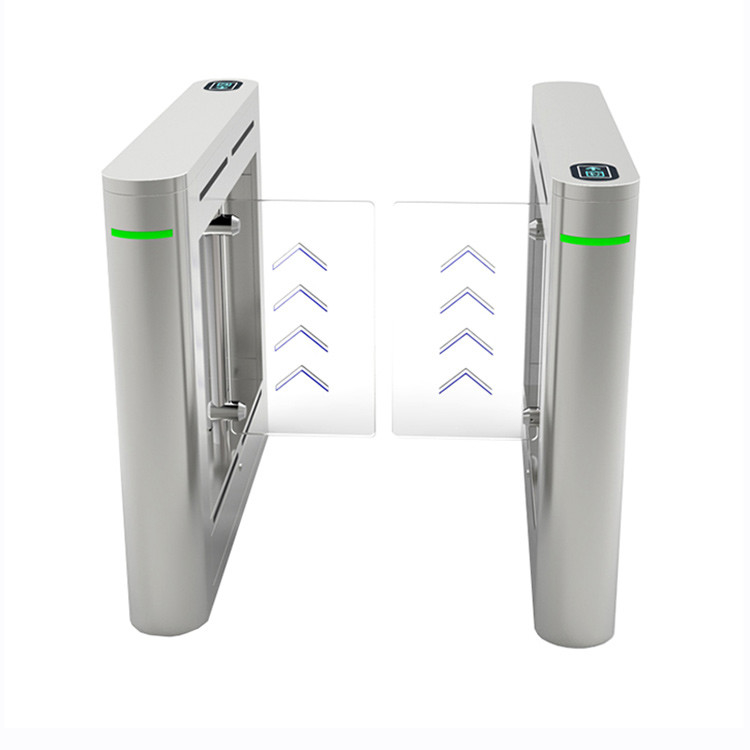

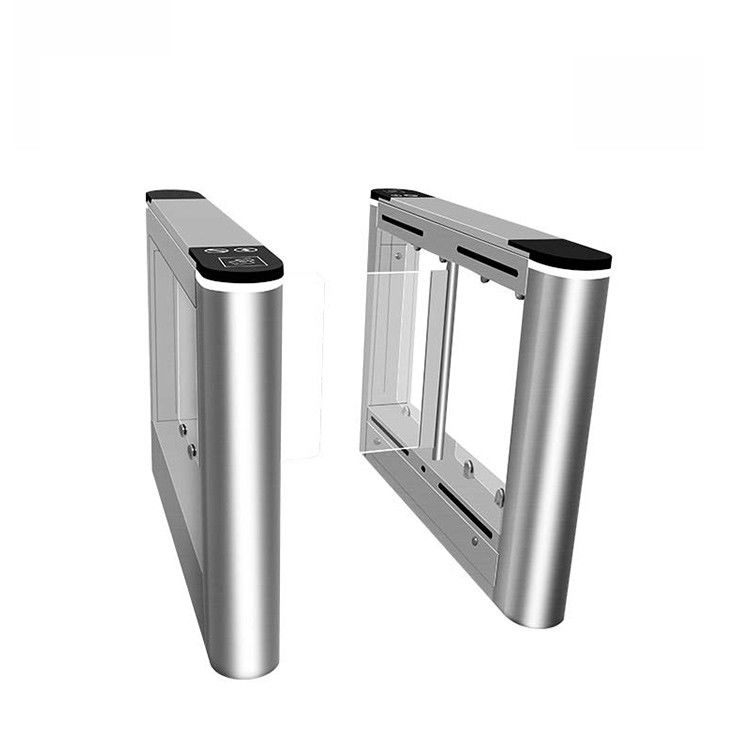

High Safety Glass Swing Turnstile Barrier Facial Recognition Fingerprint Access Control
  • High Safety Glass Swing Turnstile Barrier Facial Recognition Fingerprint Access Control
  • High Safety Glass Swing Turnstile Barrier Facial Recognition Fingerprint Access Control

High Safety Glass Swing Turnstile Barrier Facial Recognition Fingerprint Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW05
Product Details
Cabinet Dimension:
1200x220x1000mm
Cabinet Material:
SS304
Access Direction:
Bi-direction
Power Supply:
AC100V~240V; DC24V
Working Indication:
Acoustic Alarming LED Indicator
IP:
44
Highlight:

RS485 Swing Turnstile Barrier

,

Glass Swing Turnstile Barrier

,

SS304 glass swing turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,000 pcs per month
Product Description
High Safety Glass Swing Turnstile Barrier with Facial Recognition & Fingerprint Access Control
The Swing Barrier is a functional security solution designed to enhance premises safety while facilitating controlled personnel movement. Featuring advanced technology, this barrier has become increasingly popular in both workplace and public environments where security is paramount.
Product Overview
The Sinomatic BLDC motor swing barrier represents intelligent access management technology, providing reliable and efficient control to ensure only authorized personnel gain entry to restricted areas. This attractive access control turnstile is engineered to withstand high-volume traffic and demanding conditions while maintaining optimal performance.
The compact design enables straightforward installation of multiple lane configurations, while the available color options allow seamless integration with your facility's aesthetic and branding requirements.
Applications
Ideal for controlled entry and exit points requiring access management, including metro stations, airports, clubs, hotels, museums, gymnasiums, parks, corporate facilities, factories, and supermarkets. Can be integrated with access control systems for comprehensive attendance management.
Standard Features
  • Fault self-test and alarm prompt functions for simplified maintenance
  • Anti-clip and anti-collision protection with automatic motor shutdown and delayed reset
  • Anti-shock function with automatic swing arm locking
  • Configurable one-way or two-way operation modes
  • Remote control and management via computer interface
Technical Specifications
Framework 304 Stainless Steel (SS316 optional)
Dimensions 1200 * 220 * 1000 mm
Control Signal Dry contact
LED Indicator Lights One
Card-reading Windows Two
Rated Power 100W
Operating Temperature -25℃ to +60℃
Relative Humidity ≤90% RH
Communication Interface RS485, distance ≤1200m
Power Supply AC 220V/110V ±10% 50/60MHZ (optional)
Transit Speed 30-35 persons per minute
Package Plywood box
Advanced Functions
  • Configurable working methods via main panel controls
  • Anti-pinch and anti-collision protection with 2Kg force limitation
  • Anti-illegal entry and intrusion prevention
  • Multi-channel synchronization capability
  • Auto-reset function with adjustable timing (1-60 seconds)
  • Photocell-based reset and anti-pinch functions
  • Compatibility with access control, consumption, ESD, and e-ticket systems
  • LED indicator lamps for status monitoring
High Safety Glass Swing Turnstile Barrier Facial Recognition Fingerprint Access Control 0
Extensible Functions
  • LED counter display
  • Customizable casing and gate dimensions
  • Advanced photocell logic (8 or 10 pairs)
  • Voice prompt system
  • Configurable normal close/open operation
  • Visual and audible alarm systems
