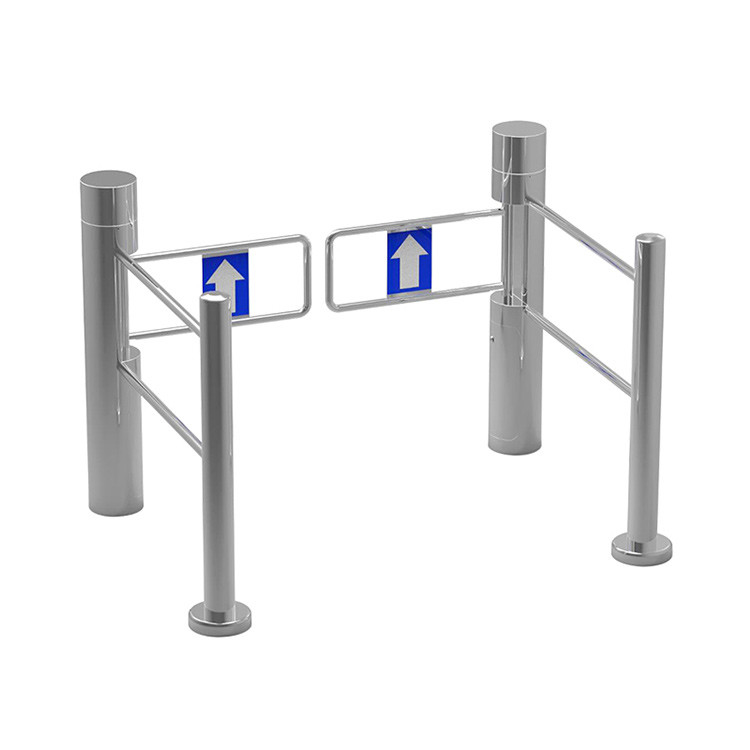

Safe Pedestrian Swing Barrier Gates Whisper Quiet Low Power Consumption
  • Safe Pedestrian Swing Barrier Gates Whisper Quiet Low Power Consumption
  • Safe Pedestrian Swing Barrier Gates Whisper Quiet Low Power Consumption
  • Safe Pedestrian Swing Barrier Gates Whisper Quiet Low Power Consumption

Safe Pedestrian Swing Barrier Gates Whisper Quiet Low Power Consumption

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW01
Product Details
Flow Rate:
30 Person Per Minute
Motor Type:
BLDC Motor
Motor Voltage:
DC24V
Surface Treatment:
Polished
IP Rate:
IP 54
Direction:
Bi-directional
Highlight:

Pedestrian Swing Barrier Gates

,

Whisper Quiet Swing barrier gates

,

DC24V motor Swing Turnstile gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
Safe Pedestrian Swing Barrier Gates
Whisper Quiet Low Power Consumption Turnstile
Sinomatic automatic swing barrier gates feature motorized drive systems suitable for all building types and interiors. These gates provide versatile access control solutions with various dimensions, making them ideal for accommodating individuals with special needs or disabilities. The equipment can be manually controlled via push button or integrated with a wide range of access control systems.
Product Applications
Sinomatic swing barrier gates represent intelligent passage management equipment that integrates mechanical transmission, microprocessor control, voice technology, and various reading technologies. By configuring different reading devices, these gates provide comprehensive access control and management for public channels.
Product Advantages
  • Bi-directional operation capability
  • High quality at cost-effective pricing
  • Integration with any access control and ID systems
  • Low power consumption
  • Whisper quiet, low noise operation
  • Customizable gate opener options
  • Wide range of available accessories
  • Complete supply set as standard
  • Fail-safe operation
Main Functions and Features
  • Stainless steel housing with rain-proof laser opening
  • LINIX brush-less DC motor with electroplated surface
  • Adjustable arm length: 500mm to 800mm
  • Fault detection and alarm functions for easy maintenance
  • Programmable running status with built-in keyboard control
  • Mechanical anti-pinch function with automatic reset
  • Anti-breakthrough automatic locking system
  • Synchronization functions for dual gate equipment
  • Automatic reset function with configurable timing
  • Configurable normally open or normally closed operation
  • Compatible with IC/ID card readers, bar codes, fingerprints
  • Unidirectional or bidirectional direction settings
  • Remote control and management via computer connection
  • Optional LED direction indicator
  • Fire safety compliance with automatic power-off opening
  • Infrared photocell support for anti-pinch and reset functions
Technical Specifications
Description Parameter
Cabinet material 304 stainless steel
Arm material 304 stainless steel/Acrylic
Dimension Column diameter: 168mm
Power supply AC 220V/110V±10%
Motor voltage DC24V (Brush-less motor)
Access device input Dry contact
Optimal flow rate 30 to 35 person/minute
Gate swing angle 90 deg per side
Gate opening/closing speed 1s
Reset time when power on 3s
Default arm length 530mm
Arm max. bearing capacity 30KG
Working environment Indoor/outdoor with shelter
Working temperature -15°C~80°C
Relative humidity ≤95%, Non condensation
Communication interface RS485 standard (distance ≤ 1200m)
