Access Control Swing Gate Turnstile SS304 Cabinet Brushless Motorized Driven

Brushless Motorized drive variety of different dimension access control swing gate turnstile

PRODUCT DESCRIPTION

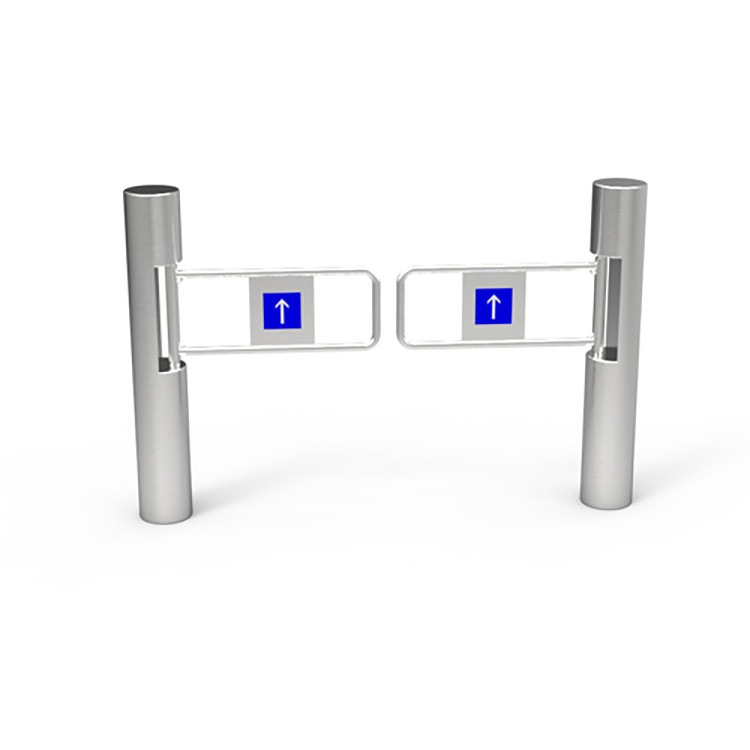

Swing barrier gates are suitable for all buildings and interiors. Sinomatic automatic swing barrier gate has a motorized drive. Swing gates offer a variety of different dimensions making them a useful solution to provide access control to people with special needs or are disabled. This type of access control equipment can be controlled manually both by push button or interfaced with wide variety of access control systems. Mostly, these solutions are used together with other turnstiles to provide wide lanes of more than 900 mm. The design and operation of these gates enables individuals to pass freely, which is not possible with some other waist height turnstiles.

OUR ADVANTAGE

Bi-directional;

High quality at a cost effective price;

Integration with any type of access control and ID systems;

Low power consumption;

Whisper quiet, low noise operation;

Possibility of gate opener customization;

Wide range of accessories;

Complete supply set as a standard;

Fail safe.

TECHNICIAN SPECIFICATIONS

MAIN FUNCTION AND FEATURES

1. Stainless steel housing, rain-proof laser opening, novel and beautiful.

2. LINIX (the best micro-motor brand in China) brush-less DC motor is used and the surface is electroplated.

3. Length of arm: 500mm to 800mm.

4. Fault detection and alarm functions, easy to use and maintenance.

5. The running status can be programmed and controlled with the built-in keyboard on the main board.

6. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset).

7.Anti-breakthrough function. The gate is locked automatically until opening signal received.

8. Synchronization functions (for dual gate equipment).

9.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.

10. Gate can be set as normally open or normally closed.

11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)

12. Direction can be set as unidirectional or bidirectional.

13. The device can be connected to management computer to realize remote control and management.

14. LED direction indicator (optional)

15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

16. Support infrared photocell for anti-pinch and reset function.

Application

The brush-less anti-collision swing barrier is an intelligent passage management equipment developed and produced by our company. It integrates the exquisite mechanical transmission, microprocessor control, voice and various reading and writing technologies. By configuring different reading and writing equipment, the intelligent control and management of the passage can be completed. The machine can realize the public channel's dissuade and access control.
