Building Entrance Access Control Tubular Swing Barrier 2.0mm Thickness
  • Building Entrance Access Control Tubular Swing Barrier 2.0mm Thickness
  • Building Entrance Access Control Tubular Swing Barrier 2.0mm Thickness
  • Building Entrance Access Control Tubular Swing Barrier 2.0mm Thickness
Building Entrance Access Control Tubular Swing Barrier 2.0mm Thickness

Building Entrance Access Control Tubular Swing Barrier 2.0mm Thickness

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW01
Product Details
Barrier Length:
450mm(default)
Passing Rate:
30 Person Per Minute
IP Rating:
IP54
Motor Voltage:
DC24V
Application:
Indoor/outdoor(with Shelter)
Gate Swing Angle:
90 Degree
Highlight:

304 Stainless Pedestrian Swing Barrier

,

Building Entrance Swing Gate Turnstile

,

Reader Optional Swing Barrier Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

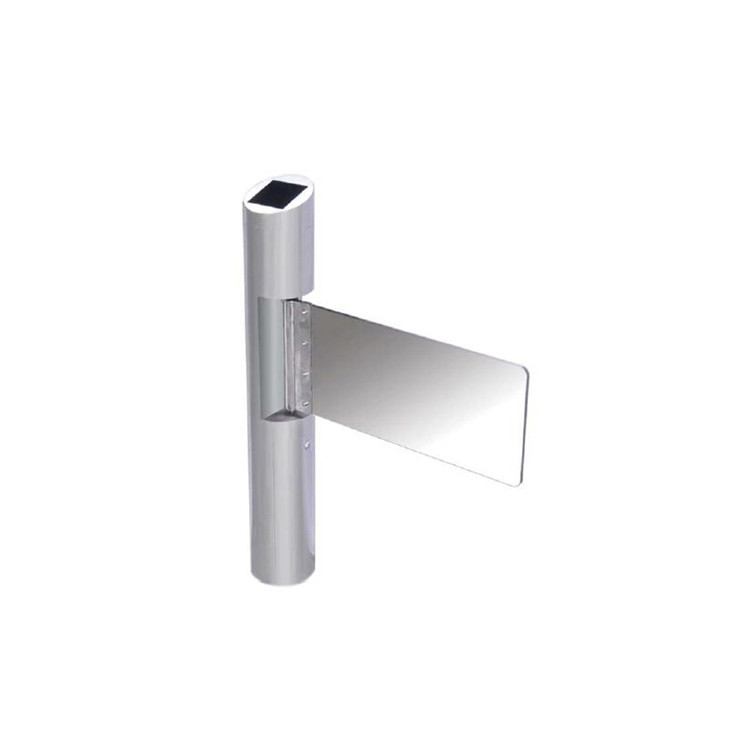

Building Entrance Access Control Tubular Swing Barrier
Building Entrance Access Control Reader Optional 2.0mm Thickness 304 Stainless Steel Tubular Swing Barrier
This motorized swing barrier is a pedestrian gate designed for building entrances, featuring an access control reader to prevent unauthorized access while maintaining a welcoming environment. Its design accommodates users with luggage or wheelchairs, offering the widest opening with the smallest form factor among pedestrian gates.
Product Overview
Concerned about typical high-speed swing gates being too narrow for wheelchair access? This provides a cost-effective solution with sufficient width for wheelchair passage while handling low-traffic handicapped lanes efficiently.
Enhanced Durability & Maintenance
Built-in Automatic Rebounce System (ARS) protects the door leaf and gearbox from vandalism attempts by channeling out brute force. The DC brushless motor ensures zero maintenance, significantly reducing servicing costs.
Building Entrance Access Control Tubular Swing Barrier 2.0mm Thickness 0
Safety Features
During power failures, the swing barrier automatically opens to maintain passage access and closes when power resumes. Fire alarm integration allows permanent opening during emergencies. Optional railing with safety IR beams enables auto-reverse functionality when obstacles are detected, preventing user impact.
Technical Specifications
Description Parameters
Cabinet dimension 168mm(Diameter)x 1050mm(H)
Weight About 20kg
Default gate length (transparent acrylic) 450mm
Cabinet material #304 stainless steel, 2.0mm
Power supply AC100V~240V, DC24V
Motor voltage DC24V (brush-less motor)
Access device input signal Dry contact
Optimal flow rate 30 person per minute
Gate swing angle 90 deg per side
Gate opening speed Programmable 0.9~2.8 sec
Initialization time 14 sec
Working environment Indoor/outdoor(with shelter)
Working temperature -35°C~75°C
Relative humility ≤90%, Non condensation
Power rating 30W
IP rating IP 54
Advanced Features
  • Stylish stainless steel column with clear toughened glass wing for bright, concise design
  • Bi-directional opening for fast, safe access with recognition system integration
  • High security and stability suitable for banks, corporate headquarters, airports, and leisure venues
Main Functions & Features
  • Stainless steel housing with rain-proof laser opening
  • LINIX brush-less DC motor with electroplated surface
  • Arm length: 500mm to 800mm
  • Fault detection and alarm functions for easy maintenance
  • Programmable running status via built-in keyboard
  • Mechanical anti-pinch function with automatic reset
  • Anti-breakthrough function with automatic locking
  • Synchronization functions for dual gate equipment
  • Automatic reset function with user authority cancellation
  • Configurable as normally open or normally closed
  • Compatible with IC/ID card readers, bar codes, fingerprints via dry contact signal
  • Direction settings: unidirectional or bidirectional
  • Computer connectivity for remote control and management
  • Optional LED direction indicator
  • Power-off auto-open and power-on auto-close for fire safety compliance
  • Infrared photocell support for anti-pinch and reset functions
Product Application
The brush-less anti-collision swing barrier is intelligent passage management equipment integrating mechanical transmission, microprocessor control, voice, and reading/writing technologies. Configurable with different reading devices for complete access control and management of public channels.
