OEM CE Certificated Swing Barrier Turnstile Automatic RFID Access Control Speedlane
  • OEM CE Certificated Swing Barrier Turnstile Automatic RFID Access Control Speedlane
  • OEM CE Certificated Swing Barrier Turnstile Automatic RFID Access Control Speedlane
  • OEM CE Certificated Swing Barrier Turnstile Automatic RFID Access Control Speedlane
OEM CE Certificated Swing Barrier Turnstile Automatic RFID Access Control Speedlane

OEM CE Certificated Swing Barrier Turnstile Automatic RFID Access Control Speedlane

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW03
Product Details
Working Environment:
Indoor / Outdoor
OpeningTransit Speed:
30 Person/minute
Arm Lenght:
350mm To 550mm Per Leaf
Motor:
Brushless DC Motor
Motor Voltage:
DC24V
IP Rate:
IP 54
Highlight:

brushless DC motor Swing Barrier Turnstile

,

Automatic RFID Swing Barrier Turnstile

,

Swing Barrier Gate IP 54

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,Alipay etc
Supply Ability
1,000pcs per month
Product Description

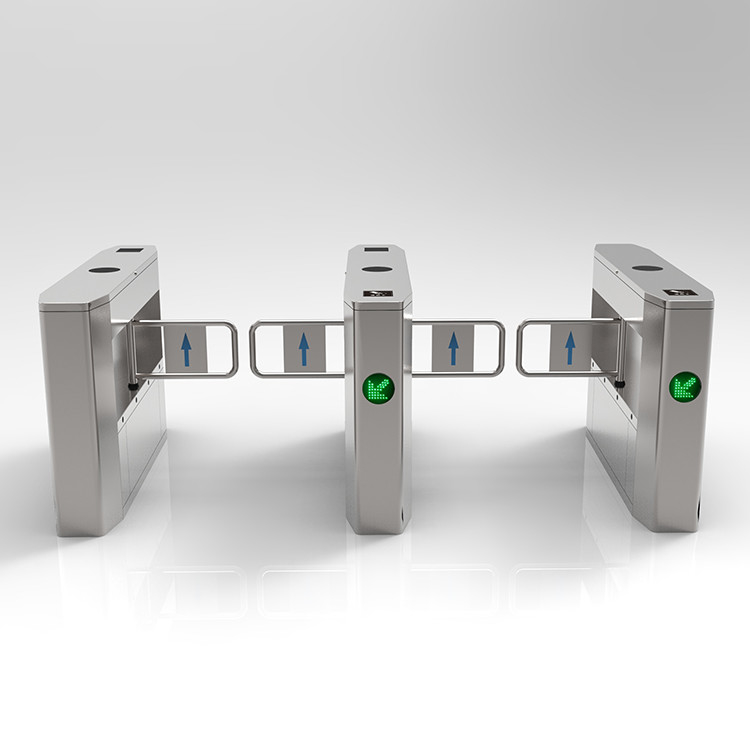

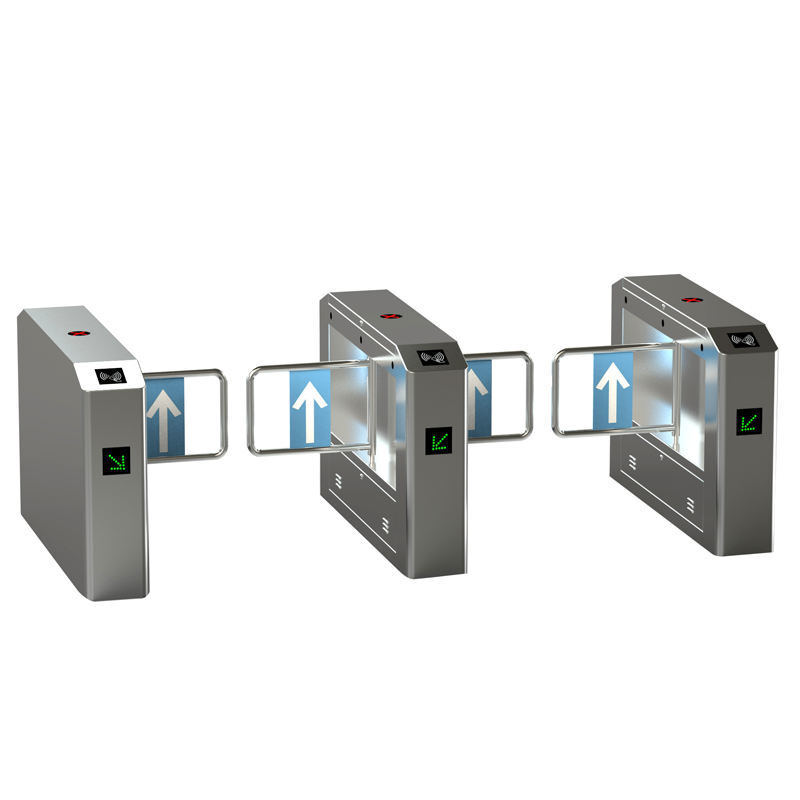

OEM CE Certificated Swing Barrier Turnstile Automatic RFID Access Control Speedlane
OEM Available CE Certificated Automatic RFID Access Control Speedlane Swing Barrier Turnstile
Product Advantages
  • Easy installation and free maintenance - No extra supporting apparatus needed and no special maintenance required after operation begins
  • Intelligent operation - Self-examination and preset time functions with automatic return to closed status after preset time and automatic opening during fire or power failure
  • Multiple access control compatibility - RS485 interface supports integration with industry-standard software and various access control types including RFID cards, barcodes, and biometric systems
Features & Functions
  • Constructed from stainless steel and acrylic glass with mechanical anti-pinch safety structure
  • Automatic passenger counting with real-time display
  • Human base model indication function for improved passage rate and convenient maintenance
  • Safety features including anti-pinch function and automatic opening during power shutdown
  • Security alerts for break-in, tailgating, over-pass, and reverse passage detection
  • Super combination capacity with on-site adjustable models
  • Automatic barrier speed adjustment with card reader and self-recovery problem resolution
  • Standard input/output ports with RS485 communication capability for remote PC system management
  • Water-proof turned up-coverage design for easy maintenance
Technical Specifications
Description Parameters
Lane Width 900-910mm
IP Rating IP54
Pass Speed 30 persons/min
Power Supply AC220V/110V, 50/60Hz, 24V
Drive Mode Motor drive
Max Power Consumption 100W
Opening Time 0.5S
Humidity ≤90% coagulation free
Noise Level ≤50dB
Service Life 5,000,000 cycles
Outside Packing 130x40x116cm
Working Environment -20°C~+60°C
Gross Weight 85KGS
Case Reference
OEM CE Certificated Swing Barrier Turnstile Automatic RFID Access Control Speedlane 0
Product Application
  • Compact and cost-effective entrance solutions for various facilities
  • Robust construction with brushed stainless steel body for anti-rust and durable performance
  • Suitable for both indoor and outdoor installations
  • Compatible with multiple access controller systems including RFID devices, push buttons, fingerprint scanners, and biometric devices
  • Emergency safety feature - automatic opening during power failure
  • Versatile application across most commercial and industrial locations
