Auto Pedestrian Swing Arm Barrier Gate One Way Two Way Channel Entrance Control
  • Auto Pedestrian Swing Arm Barrier Gate One Way Two Way Channel Entrance Control
  • Auto Pedestrian Swing Arm Barrier Gate One Way Two Way Channel Entrance Control
Auto Pedestrian Swing Arm Barrier Gate One Way Two Way Channel Entrance Control

Auto Pedestrian Swing Arm Barrier Gate One Way Two Way Channel Entrance Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW03
Product Details
Working Temperature:
-20°C~60°C
Passing Speed:
30 Person/minute
Arm Lenght:
350mm Default(can Be Customized)
Motor:
Brushless DC Motor
Motor Voltage:
DC24V
Frame Material:
SS304
Highlight:

Pedestrian Swing Arm Barrier Gate

,

SS304 Swing Arm Barrier Gate

,

brushless DC motor swing arm barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,Alipay etc
Supply Ability
1,000pcs per month
Product Description
Auto Pedestrian Swing Arm Barrier Gate - One Way & Two Way Channel Entrance Control
Auto Pedestrian Access Control One-Way Two-Way Channel Entrance Control Swing Arm Barrier Gate System
Product Applications
  • Compact and cost-effective entrance control solutions
  • Robust brushed stainless steel construction with anti-rust, durable properties
  • Suitable for both indoor and outdoor installations
  • Compatible with various access control systems (RFID, push button, fingerprint, biometric devices)
  • Emergency safety feature - gates open automatically during power outages
  • Versatile application across multiple facility types

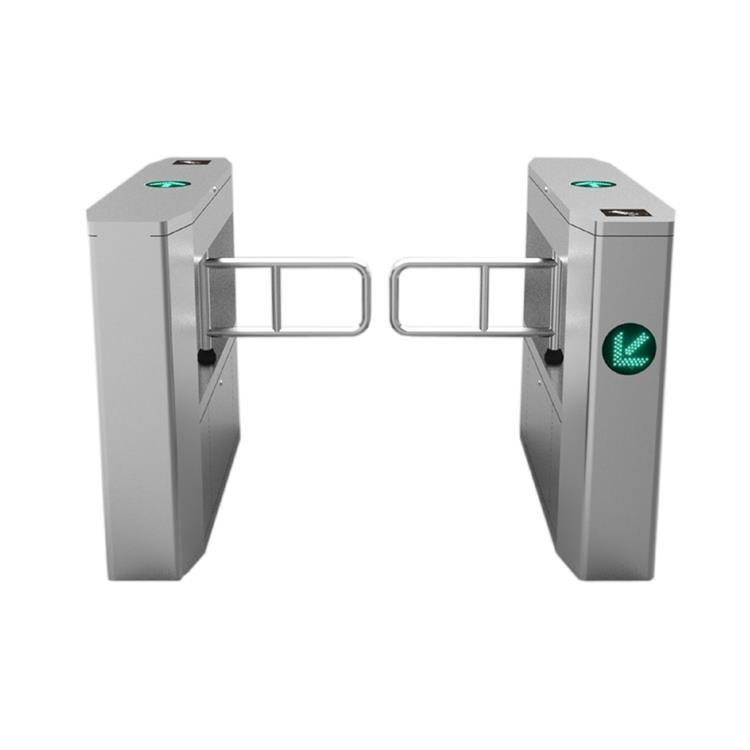

Product Display
Auto Pedestrian Swing Arm Barrier Gate One Way Two Way Channel Entrance Control 0
Technical Specifications
Specification Details
Power Supply AC220V/110V±10%, 50/60HZ
Operating Temperature -45℃ to 60℃
Relative Humidity ≤95%, No Condensation
Passage Width 600mm (1000mm optional)
Passing Speed Normally open: 50 persons/min; Normally closed: 30 persons/min
Manufacturing Technique CNC laser cutting
Motor DC Brushless motor, 140W/24V
Gate Operation Time ≤ 0.4 seconds
Infrared Sensors Included
Working Environment Indoor and outdoor (with optional rainshed)
Motor Operation Speed 1600R/Min
Communication Distance ≤1200M
Input Connection +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms
Communication Connection RS485 Communication
Barrier Material Acrylic glass, SS304 and similar materials
Construction Material Stainless steel 304, thickness ≥ 1.2mm
Product Dimensions
Auto Pedestrian Swing Arm Barrier Gate One Way Two Way Channel Entrance Control 1
Features & Functions
  • Constructed from stainless steel and acrylic glass with mechanical anti-pinch safety structure
  • Automatic passenger counting system with real-time display
  • Human base model indication function for improved efficiency and maintenance
  • Safety features including auto-open during power failure and anti-pinch protection
  • Advanced alert functions for break-in, tailgating, over-pass, and reverse movement detection
  • Flexible configuration with on-site adjustable models and superior combination capacity
  • Intelligent operation with auto-speed adjustment, self-recovery, and error call functions
  • Standard input/output ports with RS485 communication capability for system integration
  • Water-proof turned up-coverage design for easy maintenance and durability
