Push Button Swing Arm Turnstile Security Access Control Turnstile Wireless Remote Control
  • Push Button Swing Arm Turnstile Security Access Control Turnstile Wireless Remote Control
  • Push Button Swing Arm Turnstile Security Access Control Turnstile Wireless Remote Control
  • Push Button Swing Arm Turnstile Security Access Control Turnstile Wireless Remote Control
Push Button Swing Arm Turnstile Security Access Control Turnstile Wireless Remote Control

Push Button Swing Arm Turnstile Security Access Control Turnstile Wireless Remote Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW05
Product Details
Passage Width:
600mm
Opening Speed:
0.2s
Closing Speed:
0.2s
Weight:
About 60KG
Material:
SS304/ Acrylic
Service Life:
More Than 10 Million Cycles
Highlight:

SS304 Acrylic Swing Arm Turnstile

,

Push Button Swing Arm Turnstile

,

access control turnstile Anti pinch

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,000 pcs per month
Product Description

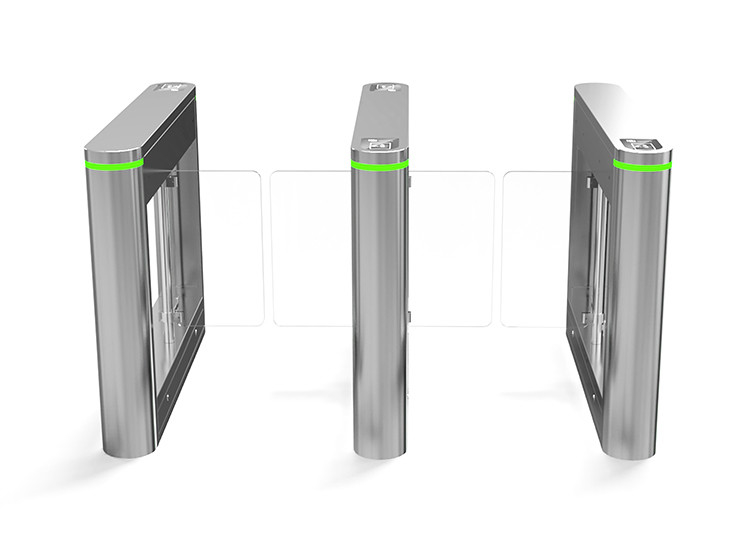

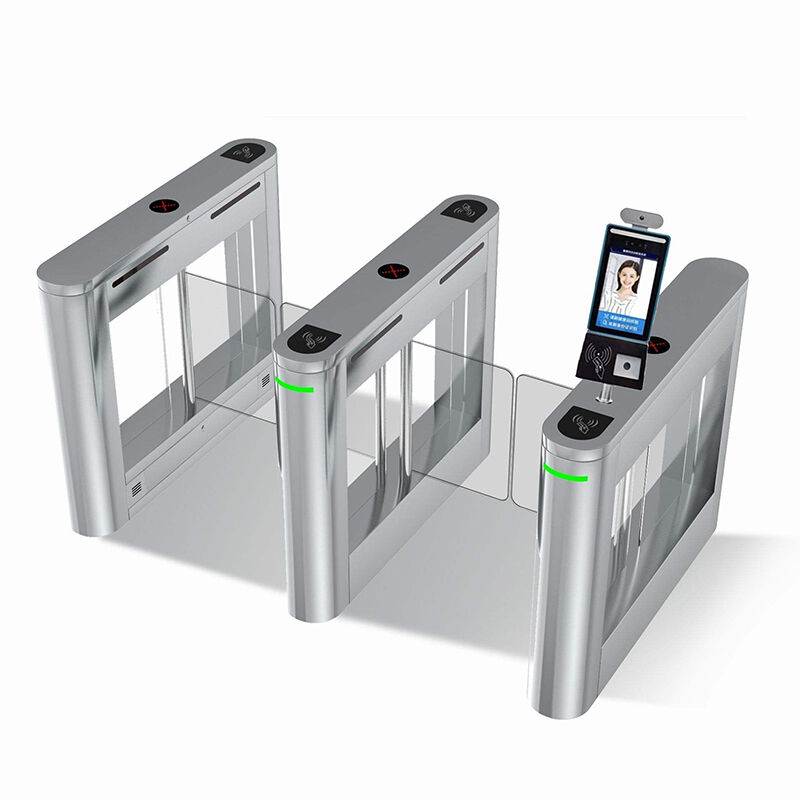

Push Button Swing Arm Turnstile Security Access Control Turnstile Wireless Remote Control
Security Access Control wireless remote control push button swing arm turnstile
Application
Intelligent Vertical Swing Turnstile compatible with IC card, ID card, barcode card, and fingerprint reading card recognition devices for staff management. Provides civilized, orderly access methods and effectively manages personnel access. Widely used in stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring intelligent access management.
Push Button Swing Arm Turnstile Security Access Control Turnstile Wireless Remote Control 0
Key Functions
  • Working method can be set by buttons on the main panel
  • Anti-pinch and anti-collision protection with automatic motor stop and 2kg force reset
  • Anti-illegal entry, anti-intrusion, and automatic close for reverse direction
  • Anti-collision with automatic gate closure when no valid signal is detected
  • Gate protection functions to prevent motor damage from external force collisions
  • Synchronization capability for multi-channel operation
  • Auto-reset function with adjustable timing (1-60 seconds, default 10 seconds)
  • Reset function using 4 or 6 pairs of photocells
  • Anti-pinch function using 4 pairs of photocells
  • Compatible with access control, consumption, ESD, and e-ticket systems
  • One-way or two-way control options
  • Remote control operation and administration
  • LED lamp indicator
Technical Specifications
Size 1200x220x1000mm
Pass Width 600mm
Pass Rate 30-40 persons/minute
Operating Time 0.2 seconds
Power Input AC100-240V, 50/60HZ
Working Voltage 24V
Working Humidity 30%~95%
Working Temperature -40℃~+70℃
Communication Interface RS485, Dry contact
Infrared Sensor 4 pairs at least
MCBF 5,000,000 Cycles
Application Airports, Hotels, Government Halls, etc.
Extensible Functions
  • LED counter display
  • Customizable casing and gate size extensions
  • Advanced logic judgment using 8 or 10 pairs of photocells
  • Speech reminder system
  • Normal close or normal open adjustable settings
  • Light and sound alarm systems
