Self Closing Fastlane Swing Barrier Gate Cylindrical Speed Gate For Building
  • Self Closing Fastlane Swing Barrier Gate Cylindrical Speed Gate For Building
  • Self Closing Fastlane Swing Barrier Gate Cylindrical Speed Gate For Building
  • Self Closing Fastlane Swing Barrier Gate Cylindrical Speed Gate For Building

Self Closing Fastlane Swing Barrier Gate Cylindrical Speed Gate For Building

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ISB10
Product Details
Barrier Material:
SS304 Or Acrylic
Passing Speed:
30~40 Person/minute
Application:
Pedestrian Access Control
IP Rate:
IP54
Max Power Consumption:
200W
Motor:
Brushless Motor
Highlight:

Noise Free Swing Barrier Gate

,

acrylic SS304 Swing Barrier Gate

,

Self Closing fastlane optical turnstiles

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description

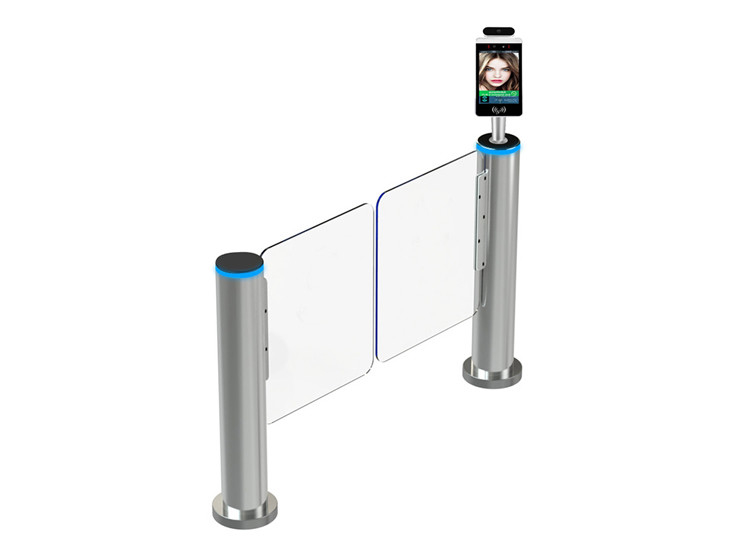

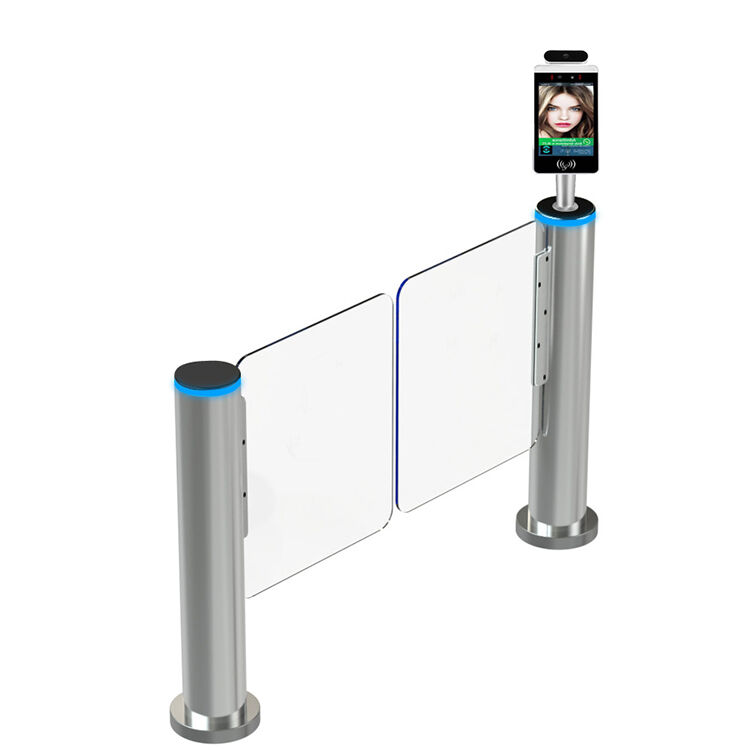

Self Closing Fastlane Swing Barrier Gate Cylindrical Speed Gate
Compact 304 stainless steel cylindrical swing barrier gate designed for narrow lobby access control systems with minimal footprint requirements.
Product Overview
This DC servo motorized high-speed gate turnstile provides an ideal solution for narrow elevator entrances and compact lobby spaces. Engineered for high-security applications to control pedestrian access to restricted areas, it features advanced brushless motor technology with optional servo motor, acrylic or tempered glass arms, and compatibility with any access control system.
Key Applications
Compatible with IC cards, ID cards, barcode cards, fingerprint readers, and facial recognition systems. Ideal for stations, subway terminals, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring sophisticated access management.
Self Closing Fastlane Swing Barrier Gate Cylindrical Speed Gate For Building 0
Features & Benefits
  • Rapid identification technology for magnetic cards, barcode cards, ID cards, and IC cards
  • DC brushless motor - maintenance-free operation
  • Optional online or offline operation modes
  • Real-time self-diagnostic and alarm indication for system safety
  • Direction indicators guide pedestrian flow
  • Automatic locking prevents forced entry without valid card
  • Automatic passenger counting with display capacity up to 90,000
  • Light and sound alarm indication prevents unauthorized access
  • Intelligent online control for adjustable operation speed and multiple card reading modes
Technical Specifications
Framework304 stainless steel
Dimensions168(D)*1000(H)mm
Arm Length400-800mm (optional)
Dry Contact12V
LED Indicator LightOne
Card-reading WindowOne
Rated Power120W
Operating Temperature-25℃ ~ +60℃, RH ≤90%
Related Humidity≥ 90%RH
Communication InterfaceRS485, distance ≤1400m
Power SupplyAC 220V/110V ±10% 50/60MHZ (optional)
Opening Transit Speed40 persons per minute
Closing Transit Speed30 persons per minute
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor provides maintenance-free operation throughout product life, no attrition, low noise, and high intelligence.
What is your flap gate's opening and closing time?
≤ 0.4 seconds
What is the swing barrier gate working environment?
Suitable for both indoor and outdoor installations (with shelter).
Can I customize it?
Yes, we welcome OEM customization as we are the manufacturer.
What's your warranty?
Minimum 1-year warranty provided.
