Swing Barrier Gate
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-ISB10 |

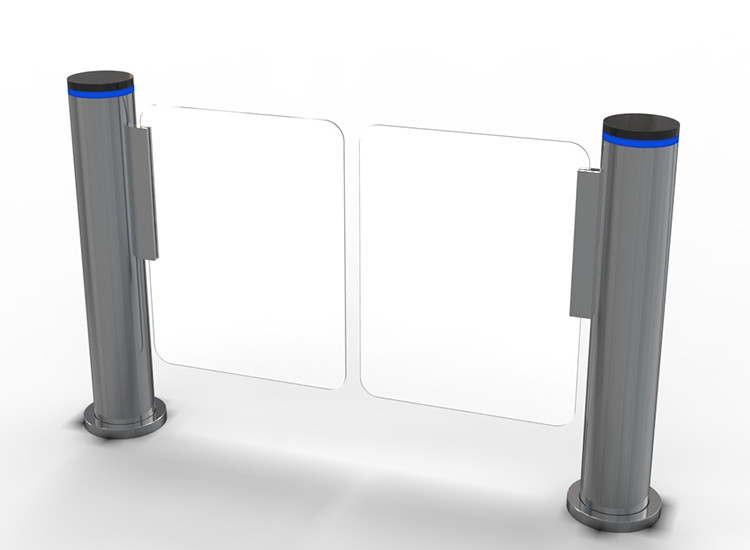

Narrow Lobby Single Pole Access Control System 304 Stainless Steel Cylindrical Swing Barrier
PRODUCT DESCRITPION
This small footprint DC servo motorized high speed gate turnstile is an ideal solution for narrow elevator entrance,lobby with a compact design gate.
It can be widely used in high security applications to control pedestrians entering or exiting to restricted areas. It comes with advanced Brushless motor(servo motor optional). The arm can be acrylic or tempered glass. It can be used for a single pcs or a pair. It features noise-free operation, small dynamic forces,impact detection, almost no abrasion and fastest open/close time. It is compatible with any access control devices.
PRODUCT SPECIFICATONS
| Description |
Parameters
|
|
Power
|
AC100V-240V
|
|
Frequency |
50/60Hz |
|
Flap lenght
|
600mm to 1000mm
|
|
Flow Speed
|
Normally closed-30 persons/min
|
|
Motor
|
DC Brushless motor
|
|
Infrared Sensors
|
Not included
|
|
Working Environment
|
indoor and outdoor(added the rainshed )
|
|
Communication Distance
|
≤1200M
|
|
Input Connection
|
+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
|
|
Communication Connection
|
RS485 Communication
|
| Housing dimension |
Φ168*1050mm
|
|
Housing material
|
SS304
|
|
Flap material
|
SS304 or Acrylic
|
|
Running Life
|
5 Million(Continuous Opening and Closing Operation)
|
|
Protect Level
|
IP54
|
|
Colour
|
Stainless Steel Brushed / PowderCoating(Optional), or other Colour you like
|
|
Operation Place
|
Subway Station, Hoverport, TourismSports,Exhibition, SwimmingHall,Residence Area,Enterprise's Entrance and ExitAttendance,Gateway Guard,Charge Management,Special Access Control area.
|
Functions& Features
1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2) DC Brushless Motor, Maintenance Free
3) On-line or off –line mode(optional)
4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5) With direction indication, guiding passenger to entry and exit.
6) Self automatic locking to prevent force passing without the card
7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8) Light and sound alarm indication function, preventing illegal entry or irregular passing
9) Powerful on-line intelligent control mode, facilitating you
A) To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
B) To set up operation mode for passage entry and exit.
C) To read card with multiple times, the special function meeting the application requirements of a particular site.
D) To set up the card reading with or without memory.
E) To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
F) Setting function humanized for reset of over time passing.
|
MOQ |
1 set |
|
Port |
Shenzhen, Guangzhou etc |
|
Payment terms |
T/T /Western union/ MoneyGram |
|
Producing capacity |
1000 Sets/Month |
|
Leading time |
7 to 10 days |
|
Package |
Wooden |
FAQ
1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.
2.What is your flap gates opening and closing time ?
-------- <=0.4s .
3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .
5.What's you warranty?
-------- 1 year warranty at least
