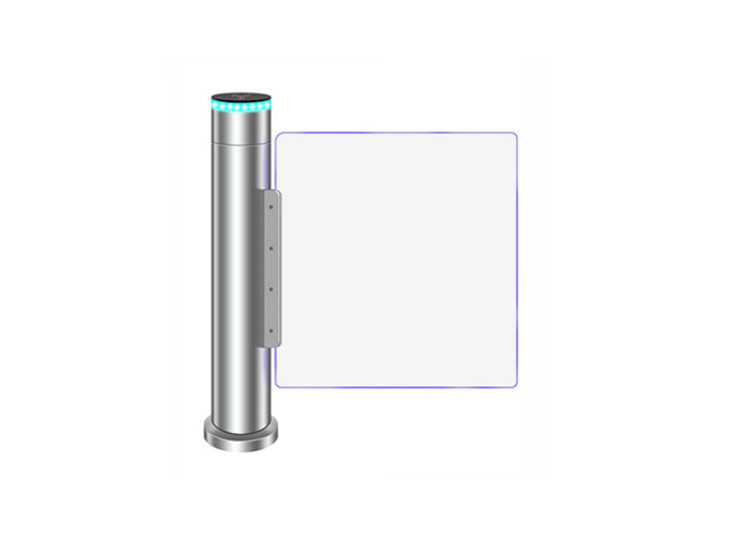

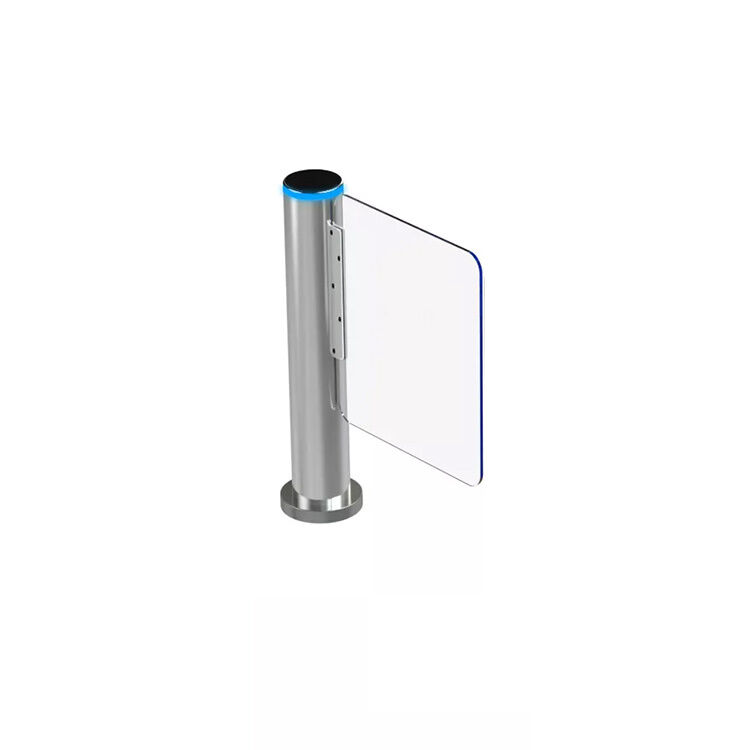

Slim Design Bidirectional Access Control Speed Gate Turnstile
  • Slim Design Bidirectional Access Control Speed Gate Turnstile
  • Slim Design Bidirectional Access Control Speed Gate Turnstile
  • Slim Design Bidirectional Access Control Speed Gate Turnstile
  • Slim Design Bidirectional Access Control Speed Gate Turnstile
Slim Design Bidirectional Access Control Speed Gate Turnstile

Slim Design Bidirectional Access Control Speed Gate Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ISB10
Product Details
Application:
Pedestrian Access Control
Running Life:
＞5 Million Times
IP Rate:
IP 54
Warranty:
12 Months
Motor:
24V DC
Barrier Lenght:
500 ~ 800mm
Highlight:

Access Control Speed Gate Turnstile

,

Slim Design Speed Gate Turnstile

,

Slim Bidirectional Access Control Speed Gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description
Slim Design Bidirectional Access Control Speed Gate Turnstile
Bi-directional Slim Design Cylindrical Swing Barrier Automatic Access Control Speed Turnstile Gate
Main Function and Features
  • Rapid identification technology for accurate and efficient recognition of magnetic cards, barcode cards, ID cards, and IC cards
  • DC Brushless Motor - Maintenance Free
  • Optional online or offline operation mode
  • Real-time self-diagnostic trouble detection and alarm indication for safe system operation
  • Direction indicators guide passengers for entry and exit
  • Automatic locking prevents forced passage without valid card
  • Automatic passenger counting and display with capacity up to 90,000
  • Light and sound alarm functions prevent illegal or irregular passage
  • Intelligent online control mode with adjustable operation speed, multiple card reading capability, and flexible configuration options
  • Infrared sensing technology for real-time monitoring, safety protection, and anti-tailgating
  • Emergency and special condition processing modes
  • Standard input/output ports for system integration and remote control management
  • Strong combination capability with various passage types and series
  • Expandable system architecture for adding new products
  • Remote control management for barrier modes and fire protection requirements
  • Automatic reset function with configurable passage time limits
  • One person per card policy with anti-tailgating and anti-collision features
  • Suitable for indoor and outdoor installation
  • Bi-directional or single direction passage options
  • Ensures rapid, efficient, and secure access control
  • Quiet operation with long service life
Slim Design Bidirectional Access Control Speed Gate Turnstile 0 Slim Design Bidirectional Access Control Speed Gate Turnstile 1
Technical Specifications
Framework 304 stainless steel
Dimensions Diameter 168mm, height 1000mm
Arm Length 500-900mm (optional)
Control Signal Dry contact
LED Indicating Light Supported
Card-reading Window Supported
Rated Power 120W
Operating Temperature -25℃ ~ +60℃, RH ≤90%
Related Humidity ≥ 90%RH
Communication Interface RS485, distance ≤1200m
Power Supply AC100V~240V, DC24V
Opening Transit Speed 35-40 persons per minute
Closing Transit Speed 30-35 persons per minute
Slim Design Bidirectional Access Control Speed Gate Turnstile 2
Product Advantages
  • Integrated swing gate design controls pedestrian access to restricted areas, ideal for high traffic flow in both directions
  • Brushed stainless steel body creates seamless, elegant access points that blend into indoor environments
  • Compatible with various access control systems including RFID, push button, fingerprint, and biometric devices
  • Emergency automatic opening feature allows free passage when needed
  • Ideal for elegant and luxury entrance solutions
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor, maintenance-free operation, no attrition, low noise, and high intelligence.
What is your flap gates opening and closing time?
≤ 0.4 seconds
What is the Swing barrier gate working environment?
Suitable for both indoor and outdoor installation (with shelter)
Can I customize it?
Yes, we welcome OEM customization as we are the manufacturer.
What's your warranty?
1 year warranty period.
