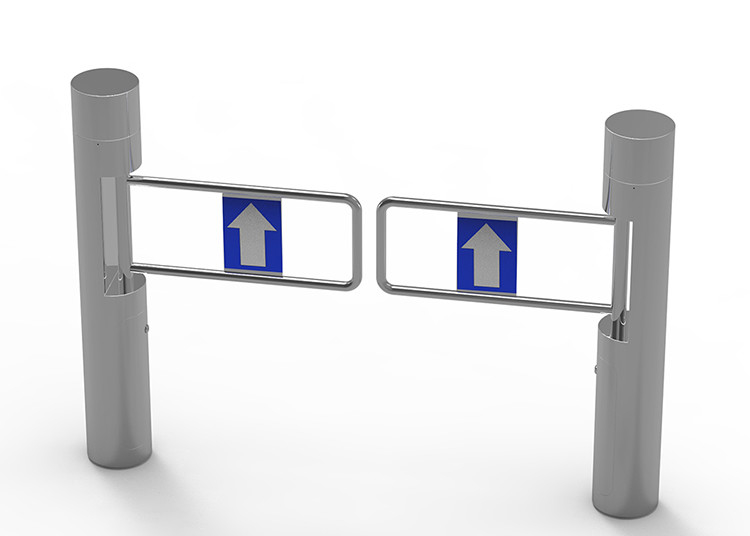

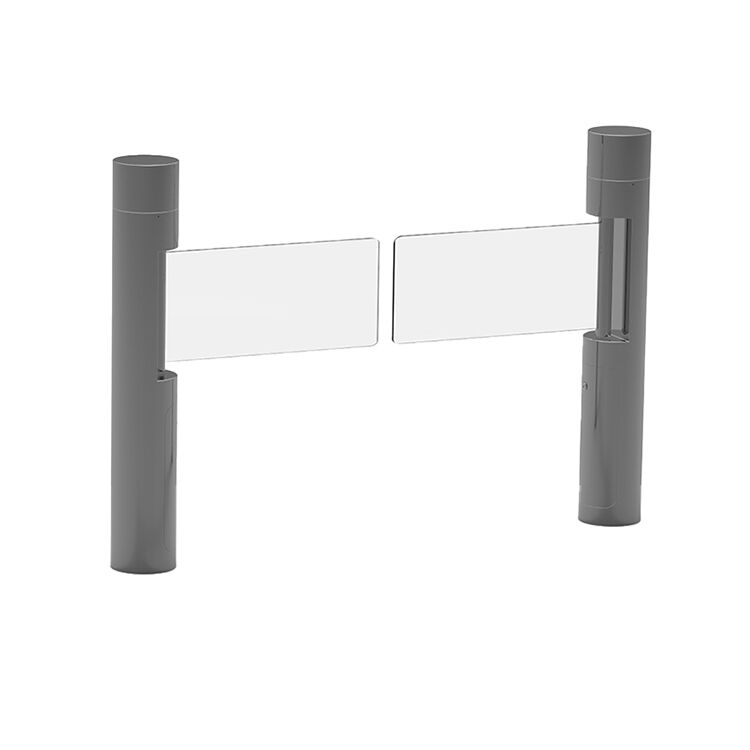

SS Acrylic Swing Barrier Gate RS485 BLDC Motor Access Control Gate

  • SS Acrylic Swing Barrier Gate RS485 BLDC Motor Access Control Gate
  • SS Acrylic Swing Barrier Gate RS485 BLDC Motor Access Control Gate
  • SS Acrylic Swing Barrier Gate RS485 BLDC Motor Access Control Gate
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Stainless Steel/mild Steel Barrier Material Stainless Steel/Acrylic
Motor Type BLDC Motor Motor Voltage DC24V
Communication Interface TCP/IP/RS485 Housing Diameter 168mm
High Light

SS Acrylic Swing Barrier Gate

,

RS485 Swing Barrier Gate

,

BLDC Motor Access Control Gate
Leave a Message
Product Description

Shenzhen China Access Control Gate Smart Card Supermarket Swing Barrier Manufacturer



Why choose SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED



Intuitive, Innovative, Access System Solutions Provider.



 An industry leading manufacturer supplying access euqipment and system to companies, contractors, and other end-users.

Here at SINOMATIC, we have the privilege to work with and provide high perforamce access control solutions to some of th

e largest and most successful companies in the all kinds of Industry.



Let the team at SINOMATIC prove their value in the successful launch of your next critical project.





PRODUCT DESCRIPTION



Swing turnstile is the intelligent access management produced by our company after several years R & D , this equipment

organically integrate machinery electronics microprocessor control,and all kinds of different reading and writing equipment.

Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection

devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management

by the mutual coordination.

SS Acrylic Swing Barrier Gate RS485 BLDC Motor Access Control Gate 0



Model
 SN-SB01
Case Material
SS304(1.2mm, 1.5mm, 2.0mm optional)/Baking varnish
Arm Material
SS304(Acrylic Available)
Production Process
CNC Laser Cutting
Size
Diameter168* Height 1000mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W( Brushless Motor)
Electromagentic
Duty Cycle 100%
Barrier Arm Length
Max 800mm(Customization acceptable)
Passage Width
Max 900mm(Customization acceptable)
Passage direction
Single directional/Bi-directional(Optional)
Operating time
1s
Throughput Rate
25-30 persons/minute(Normally Closed) or 40 persons/(Normally Open)
Reset Time after Power on
3S
MCBF
5,000,000 Cycles
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
LED Indcator
Yes
Operation Humidity
0~95%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA





MAIN FUNCTION AND FEATURES



1. Stainless steel housing, rain-proof laser opening, novel and beautiful.


2. LINIX (the best micro-motor brand in China) brush-less DC motor is used and the surface is electroplated.


3. Length of arm: 500mm to 800mm.


4. Fault detection and alarm functions, easy to use and maintenance.


5. The running status can be programmed and controlled with the built-in keyboard on the main board.


6. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset).


7.Anti-breakthrough function. The gate is locked automatically until opening signal received.


8. Synchronization functions (for dual gate equipment).


9.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.


10. Gate can be set as normally open or normally closed.



11. The barrier arm automatically unlocing and rotating when power off, automatically locked when power on



12. Available connetion with access control system, consumer systems, electronic ticket system biometric system

static tester and other equipments.



13. Unique two-direction anti-reverse function



14. Single-direction or Bi-direction control pedestrians access.



15. Available for remote control and management directly by computer.



Application


The brush-less anti-collision swing barrier is an intelligent passage management equipment developed
and produced by our company. It integrates the exquisite mechanical transmission, microprocessor
control, voice and various reading and writing technologies. By configuring different reading and
writing equipment, the intelligent control and management of the passage can be completed. The
machine can realize the public channel's dissuade and access control
