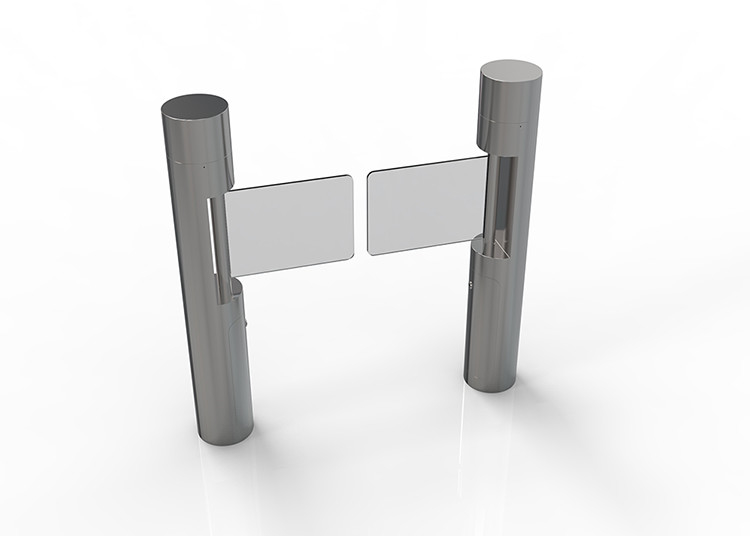

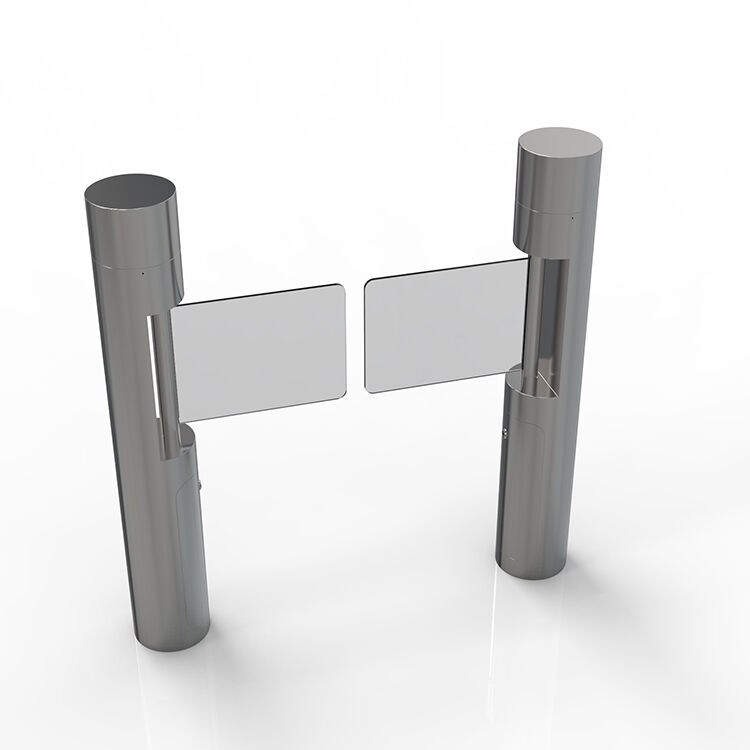

800mm Length Swing Door Turnstile RFID BLDC Bi Directional DC24V
  • 800mm Length Swing Door Turnstile RFID BLDC Bi Directional DC24V
  • 800mm Length Swing Door Turnstile RFID BLDC Bi Directional DC24V
  • 800mm Length Swing Door Turnstile RFID BLDC Bi Directional DC24V

800mm Length Swing Door Turnstile RFID BLDC Bi Directional DC24V

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB01
Product Details
Barrier Length:
500 To 800mm
Passage Width:
Max 900mm
Flow Rate:
30 Person Per Minute
Motor Type:
BLDC Motor
Motor Voltage:
High Light:

800mm Length Swing Door Turnstile


RFID BLDC Swing Door Turnstile


DC24V Bi Directional Swing Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

CE Approved RFID Interface Bi-directional Security Supermarket Swing Door Turnstile




Swing gate turnstile is mainly used for the management of the entrance and exit of the passage. It has the characteristics

of fast opening, safety and convenience, etc. It is the ideal management and guidance equipment for pedestrians with

high-frequency entrance and exit. Widely used in airports, stations, terminals, attractions, parks, shopping malls, office

buildings, pedestrian walkways and other places.

800mm Length Swing Door Turnstile RFID BLDC Bi Directional DC24V 0


Our advantage:


The stylish stainless steel column and clear toughened glass wing present a bright and concise design.


Bi-directional opening facilitates fast and safe access. It can also be integrated with recognition systems

for user friendly access control.


Featured with high security and stability, it’s suitable for banks, corporate headquarters, airports and leisure venues.


Technical Specifications


Description Parameter
Framework SS304
Dimension Colunm diameter:168mm
Power supply AC 220V/110V±10%
Motor voltage DC24V (Brush-less motor)
Access device input Dry contact
Optimal flow rate 25 to 30 person/minute
Gate swing angle 90 deg per side
Gate opening/closing speed 1s
Reset time when power on 3s
Arm material Transparent acrylic/ SS304
Default arm length 530mm
Arm max. bearing 30KG
Working environment Indoor/outdoor with shelter
Working temperature -15°C~80°C
Relative humility ≤95%, Non condensation
Communication interface RS485 standard(distance ≤ 1200m)




1. Stainless steel housing, rain-proof laser opening, novel and beautiful.

2. LINIX (the best micro-motor brand in China) brush-less DC motor is used and the surface is electroplated.

3. Length of arm: 500mm to 800mm.

4. Fault detection and alarm functions, easy to use and maintenance.

5. The running status can be programmed and controlled with the built-in keyboard on the main board.

6. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset).

7.Anti-breakthrough function. The gate is locked automatically until opening signal received.

8. Synchronization functions (for dual gate equipment).

9.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.

10. Gate can be set as normally open or normally closed.


11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)


12. Direction can be set as unidirectional or bidirectional.

13. The device can be connected to management computer to realize remote control and management.

14. LED direction indicator (optional)

15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

16. Support infrared photocell for anti-pinch and reset function.



The brush-less anti-collision swing barrier is an intelligent passage management equipment developed
and produced by our company. It integrates the exquisite mechanical transmission, microprocessor
control, voice and various reading and writing technologies. By configuring different reading and
writing equipment, the intelligent control and management of the passage can be completed. The
machine can realize the public channel's dissuade and access control
