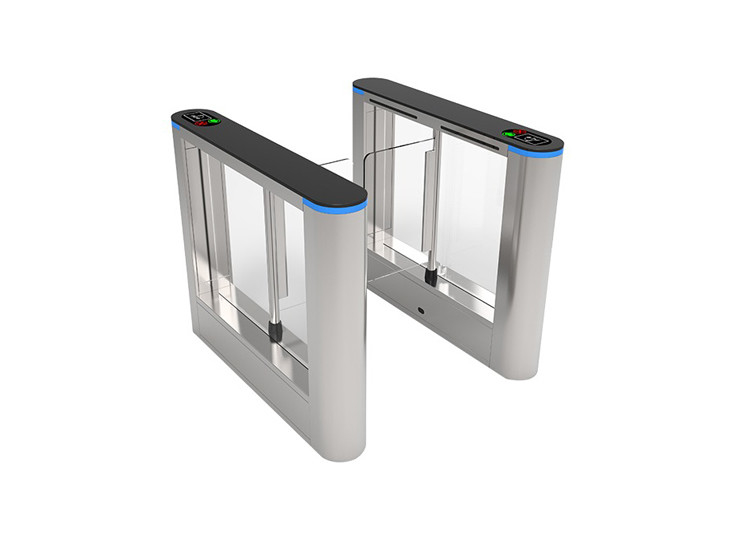

DC Brushless Swing Turnstile Gate 600mm Passage SS304 Rust Proof
  • DC Brushless Swing Turnstile Gate 600mm Passage SS304 Rust Proof
  • DC Brushless Swing Turnstile Gate 600mm Passage SS304 Rust Proof
DC Brushless Swing Turnstile Gate 600mm Passage SS304 Rust Proof

DC Brushless Swing Turnstile Gate 600mm Passage SS304 Rust Proof

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW05
Product Details
Production Process:
CNC Laser Cutting
Electromagentic:
Duty Cycle 100%
Drive Motor:
DC Brushless Motor
Passage Width:
600mm
Opening Speed:
0.2s
Closing Speed:
0.2s
Highlight:

DC Brushless Swing Turnstile Gate

,

600mm Passage Swing Turnstile Gate

,

Rust Proof Swing Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,000 pcs per month
Product Description
DC Brushless Swing Turnstile Gate - 600mm Passage SS304 Rust Proof
Sensor Detecting Emergency Exit Door Swing Turnstile Gate for Attendance Management
Product Overview

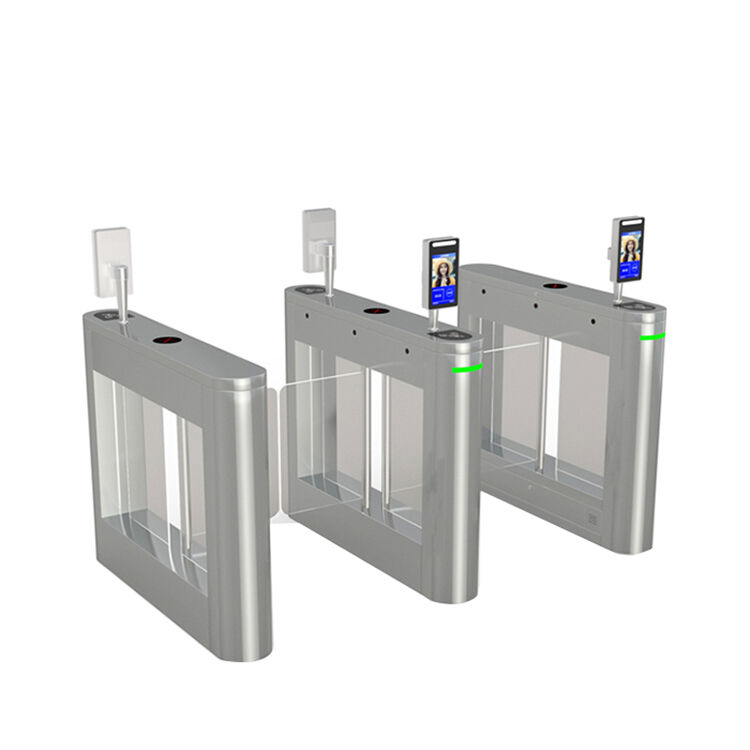

The SINOMATIC swing turnstile SN-SB05 is a sophisticated access control security system designed for seamless integration with various access control technologies including facial recognition, fingerprint systems, RFID, QR readers, and more. Featuring an elegant design and high throughput capacity, this turnstile is ideal for offices, universities, schools, parks, and other controlled access environments.
Construction & Design
Crafted from premium SS304 stainless steel with a beautiful, durable finish, this turnstile offers exceptional rust resistance and protection against external damage. The standardized electrical interface allows for easy integration with barcode cards, ID cards, IC cards, and other reader systems, ensuring orderly pedestrian access while preventing unauthorized entry. The system includes fire safety compliance features to maintain clear emergency egress pathways.
Technical Specifications
ModelSN-SB05
Case MaterialSS304 (1.2mm, 1.5mm, 2.0mm optional)/Baking varnish
Arm MaterialSS304 (Acrylic Available)
Production ProcessCNC Laser Cutting
Size1200*220*1000mm (Customization acceptable)
Power InputAC100-240V, 50/60HZ
Operation VoltageDC24V, 3A, Power: 40W (Brushless Motor Optional)
ElectromagneticDuty Cycle 100%
Barrier Arm Length350mm (Customization acceptable)
Passage Width600mm (Customization acceptable)
Passage DirectionSingle directional/Bi-directional (Optional)
Operating Time1S
Throughput Rate25-30 persons/minute (Normally Closed) or 40 persons (Normally Open)
Reset Time after Power on3S
MCBF5,000,000 Cycles
Automatic Reset FunctionAutomatically locked within set time (Time Adjustable)
LED IndicatorYes
Operation Humidity0~95% (No Freezing)
Operation Temperature-20℃~+60℃
Operation EnvironmentIndoor, Outdoor (Shelter)
Protection LevelIP45
Communication InterfaceStandard RS485 interface, distance ≤1200 meters
Input InterfaceRelay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA
Key Features & Functions
  • Advanced ARM core micro CPU circuit with digital positioning technology for precise brake arm control
  • Smooth, quiet operation with simple, reliable mechanical structure
  • Anti-rust, anti-corrosion surface treatment for enhanced durability
  • Control panel with counting function and optional LCD/LED display
  • High-precision sensor array with intelligent recognition algorithms for accurate anti-pinching and anti-trailing detection
  • Intelligent voice and sound prompts for user-friendly operation
  • Automatic malfunction detection and alarm system for easy maintenance
  • Dual anti-pinch protection: mechanical and infrared sensor systems
  • Sound and light alarm functions for unauthorized access attempts
  • Anti-impact design with automatic locking without open signal
  • Automatic reset function with configurable timing parameters
  • Standard 4-pair infrared sensor system for enhanced safety
  • Power-off automatic open and power-on automatic close functionality
  • Compatible with access control, consumer, electronic ticket, biometric identification, and electrostatic testing systems
  • Single or bi-directional pedestrian control with infrared sensor access
  • Remote computer control and management capabilities
