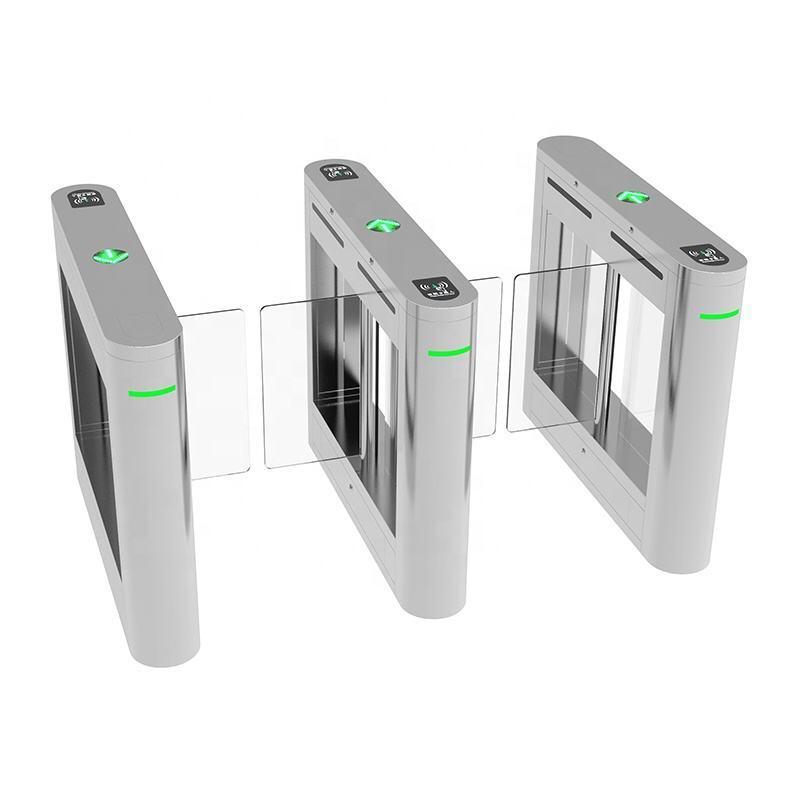

24V BLDC Motor SS304 Glass Turnstile Swing Barrier Gate with 40W Power
  • 24V BLDC Motor SS304 Glass Turnstile Swing Barrier Gate with 40W Power
  • 24V BLDC Motor SS304 Glass Turnstile Swing Barrier Gate with 40W Power
  • 24V BLDC Motor SS304 Glass Turnstile Swing Barrier Gate with 40W Power
24V BLDC Motor SS304 Glass Turnstile Swing Barrier Gate with 40W Power

24V BLDC Motor SS304 Glass Turnstile Swing Barrier Gate with 40W Power

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW05
Product Details
Motor Type:
24V BLDC Motor
Control Signal:
Dry Contact/12V Level Signal
IP Rate:
44
Material:
SS304, Acrylic
Remote Control:
Optional
Motor Power:
40W
Highlight:

Electromagnetic Clutch Entrance Glass Turnstile

,

Brushless DC Entrance Glass Turnstile

,

40W SS304 Swing Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,000 pcs per month
Product Description
Brushless DC Electromagnetic Clutch Entrance Glass Turnstile 24V 40W SS304
Product Overview
The SINOMATIC swing barrier gate is an intelligent control device for pedestrian passage entrances and exits. This 24V/40W brushless DC motor electromagnetic clutch system features transparent acrylic construction for elegant and safe operation.
Key Applications
Integrated with computer systems, access control, attendance tracking, and ticketing systems, this swing barrier gate enables comprehensive entrance management with flexible channel width adjustments to accommodate motorcycles, bicycles, and wheelchairs.
Main Functions & Features
  • Automatic startup self-test with locked state recovery
  • Adjustable direction control (one-way or bi-directional traffic)
  • High-speed operation for large pedestrian flow volumes
  • Multiple infrared sensors for anti-pinch protection and alarm functions
  • Automatic rollback when obstruction detected (brushless motor option)
  • Emergency channel free pass capability
  • Standard IO interface for third-party access control integration
  • LED status indication and built-in counting functionality
  • Pass-through memory for multiple verification requests
Technical Specifications
Place of Origin Guangdong, China
Brand Name SINOMATIC
Product Name SINOMATIC Swing Barrier
Verification Methods RFID, fingerprint, facial recognition (optional)
Traffic Direction One-way or bi-directional
Housing Dimensions 1200*220*1000mm (default)
Housing Material SS304 Stainless Steel/Acrylic
Passage Width 500-900mm (customizable)
Operating Environment Indoors or outdoors with shelter
Certification CE Certified
Minimum Order Quantity 2 PCS
Customization ODM/OEM Supported
Optional & Customized Functions
  • Alternative materials, finishes, and custom designs
  • LED counter functionality
  • Audio-visual alarms for invalid entries and tailgating
  • Remote control button operation
  • Additional sensor transmitters and receivers
  • Infrared sensor reset function
  • Access control system integration
  • Camera system integration
  • Thermostat system integration
  • Flexible card reader mounting options
  • Stroboscopic alarm light for rapid fault identification
24V BLDC Motor SS304 Glass Turnstile Swing Barrier Gate with 40W Power 0
