DC24V SS316 BLDC Sliding Barrier Gate 50HZ RS485 With Access Control System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000 pcs per month
Product Details
Max Flow Rate 30 Person Per Minute Flap Material 10mm Thickness Acrylic
Motor BLDC Motor Motor Voltage DC24V
Infrared Sensor Included Frame Material SS304/SS316
High Light

SS316 BLDC Sliding Barrier Gate

,

DC24V BLDC Sliding Barrier Gate

,

RS485 Speed Gate Turnstile

Leave a Message
Product Description

Anti Clipping Acrylic Swing Sliding 100W Automatic Pedestrian Turnstile



PRODUCT DESCRIPTION



1. Illegal Alarm Function Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage
2. Anti-pinch function Barriers auto open when power shut, insure user safety
3. Housing 304 Stainless Steel(Light Wire Drawing Type)
4.Standard input/output port Meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC
5.Control Software Access Control System / Electronic Ticketing System / Consumer System, Etc.







Standard functions & features of Sliding Turnstiles Gate



1. Kinds Of Mode Alarm Function, Including Illegal Intrusion, Anti Intrusion, Trailing, Traffic Alarm, Etc

.
2.Anti Impact Function, In The Absence Of The Received Gate Signal, Automatically Block Arm Lock Or Alarm


3. Normally Open, Normally Closed Mode Can Be Adjusted, Easily Through The Dial Code Or External Manual

Button Control



4. Flexible Access Indication Function, High Brightness Indicator Light And The Human Nature Of The Prompt

Function, Let The Channel More Features



5. A Variety Of Traffic Patterns Can Be One-Way Or Two-Way Control Personnel, Or One-Way Controlled, Reverse

Free Access.



6. Mechanical, Infrared Double Anti Pinch Function, In Arms Reduction Process Blocked In The Block, Automatic

Stop Or Rebound, And Send Out Alarm Signals;



EXTENDED FUNCTIONS



1. Counting Function
2. LED counting function
3. Voice prompt function
4. Barrier color can choose
5. Secondly opening function to meet ticket system and anti-passback function





PRODUCT FUNCTION AND FEATURES



1. Problem-self-checking function.


2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading;

One direction card reading and another freely. And single direction photocell controlled passing and close. Working

ways can be set in the control panel.


3. When power off, arm open automatically and power on again, arm will be held automatically.


4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the

control panel.


5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile

will cancel this passing right. And the regulated time period for passing can be set by managers.


6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the

Swing barrier and then take a valid card to be read for passing.



7. Direction display to guide passenger which direction is to go.


8. Anti-rush function: If there is no open signal, arm will be holding tightly.


9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through

the sliding barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close

automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a

while with very slight force. Also it will alarm.


10. Swing barrier is with standard electrical interface for the integration of various readers and writers.






OPTIONAL DESIGN

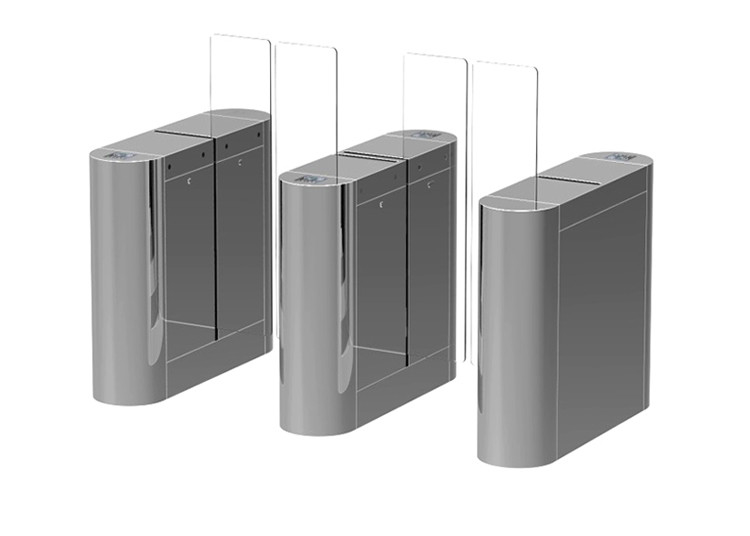

DC24V SS316 BLDC Sliding Barrier Gate 50HZ RS485 With Access Control System 0
