Home > Products > Swing Barrier Gate >

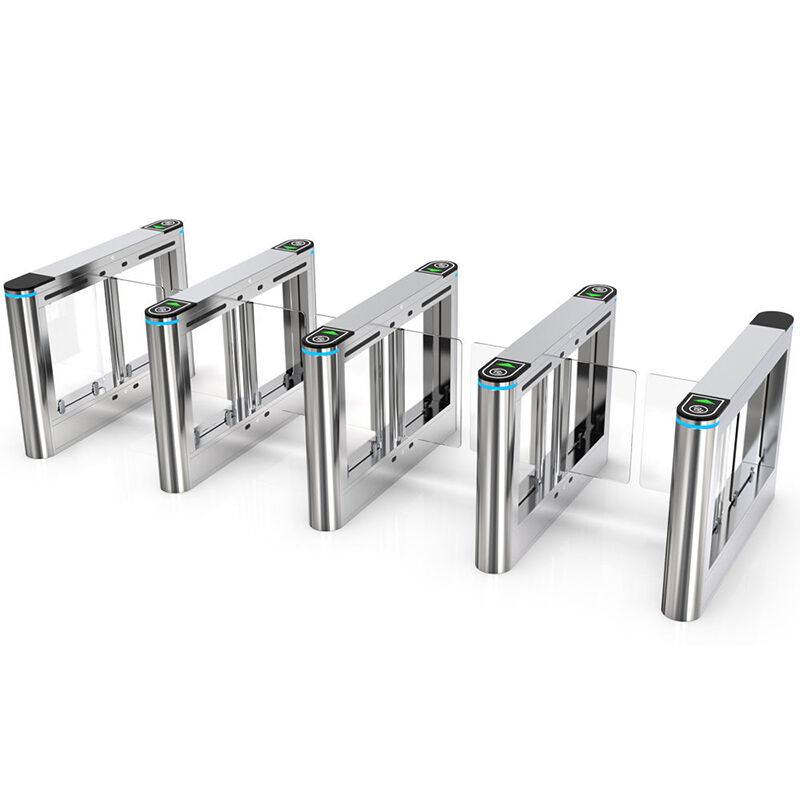

DC24V BLDC Motor IP44 Waterproof Acrylic Arm Pedestrian Turnstile Swing Barrier Gate
  • DC24V BLDC Motor IP44 Waterproof Acrylic Arm Pedestrian Turnstile Swing Barrier Gate
  • DC24V BLDC Motor IP44 Waterproof Acrylic Arm Pedestrian Turnstile Swing Barrier Gate
  • DC24V BLDC Motor IP44 Waterproof Acrylic Arm Pedestrian Turnstile Swing Barrier Gate

DC24V BLDC Motor IP44 Waterproof Acrylic Arm Pedestrian Turnstile Swing Barrier Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW05
Product Details
Motor Type:
BLDC Motor
Motor Voltage:
DC24V
Control Signal:
Dry Contact/12V Level Signal
IP Rate:
44
Material:
SS304, Acrylic
Remote Control:
Optional
Highlight:

DC24V BLDC Pedestrian Control Gate

,

IP44 RFID Pedestrian Control Gate

,

Acrylic Arm Bidirectional Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,000 pcs per month
Product Description
DC24V BLDC IP44 RFID Pedestrian Control Gate with Acrylic Arm Bidirectional Turnstile
Acrylic Arm 600MM Standard Width Pedestrian Control Bidirectional Turnstile Gate
Intelligent Bridge Swing Turnstile compatible with IC card, ID card, barcode card, and fingerprint reading card recognition devices. Provides civilized, orderly access control for staff management. Widely applicable for stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring intelligent access management.
Swing barrier gates are typically used alongside flap barriers or turnstiles as manual lanes for handicapped users in building lobbies. Ideal for high-traffic, light-duty sites requiring affordable access control solutions.
Main Functions and Features
  • 304 Stainless Steel Construction: Self-designed with excellent appearance, toughened glass reader window for safety, optional LCD display for user information
  • Infrared Safety Sensors: Multiple sensor pairs prevent injuries when carrying baggage or with children; customizable for precise control and judgment
  • LED Status Indicators: High-visibility LED displays show direction and status - red for prohibited passage, green for allowed passage; software-controlled lighting
  • NO/NC Mode Options: Normally Open/Normally Closed modes available to meet diverse requirements
  • Automatic Reset Function: System cancels current user authority automatically if passage isn't completed within preset time (default 5 seconds)
  • Fire Safety Compliance: Optical turnstile opens automatically during power failure, meeting fire safety regulations
  • Weather-Resistant Design: Waterproof and ventilative structure protects mechanical and electrical components for extended service life in various conditions
  • Multiple Interface Options: Rich input interfaces support connection to alarms, readers, identification equipment, LCD displays, counters, remote panels, and more
  • Reliable Performance: Smooth operation, long service life, high operational dependability, and rapid response times
SINOMATIC Swing Barrier Advantages
SINOMATIC Swing Gate represents years of careful development in intelligent channel administration technology. This high-tech product combines mechanical, digital, and microprocessor control with multiple identification technologies. Equipped with various identification system devices, reliable performance safety units, alarms, direction indicators, and extended functionality. The LED counting display interface coordinates intelligent control and management of access channels.
Technical Specifications
Item Specification
Place of Origin Guangdong, China
Brand Name SINOMATIC
Product Name SINOMATIC SWING BARRIER
Verification Methods RFID, fingerprint, facial recognition (optional)
Gate Direction One-way, Bi-directional
Housing Size 1200*220*1000mm (default)
Housing Material SS304 Stainless Steel/Acrylic
Passage Width 500 to 900mm (customization supported)
Working Environment Indoors or outdoors with shelter
Certificate CE
Minimum Order Quantity 2 PCS
ODM/OEM YES
Optional & Customized Functions
  • Alternative materials, finishes, and custom designs
  • LED counter functionality
  • Audio and visual alarms for invalid entry/exit and tailgating
  • Remote control button operation
  • Additional infrared sensor transmitters and receivers
  • Infrared sensor reset function
  • Access control system integration
  • Camera system integration
  • Thermostat system integration
  • Flexible card reader mounting options: surface-mounted or flush-mounted with output interlock
  • Stroboscopic alarm light prompt function for rapid failure identification by site administrators
